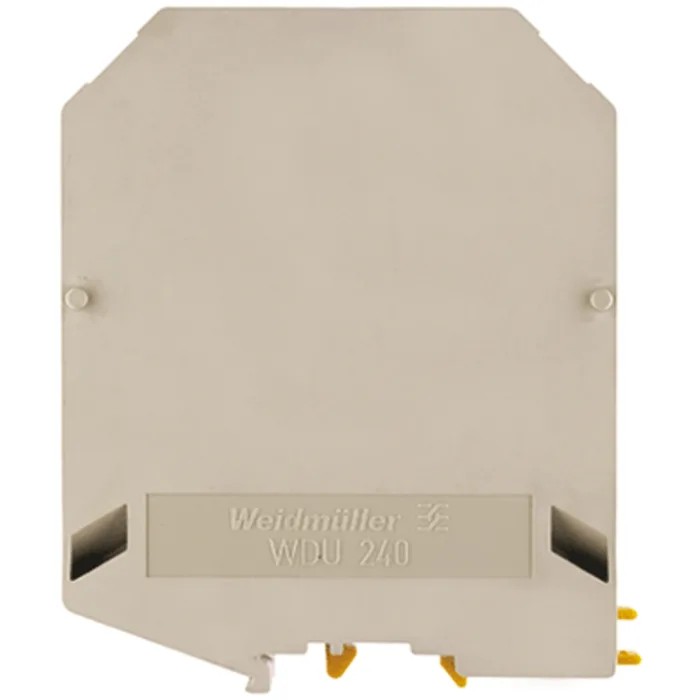

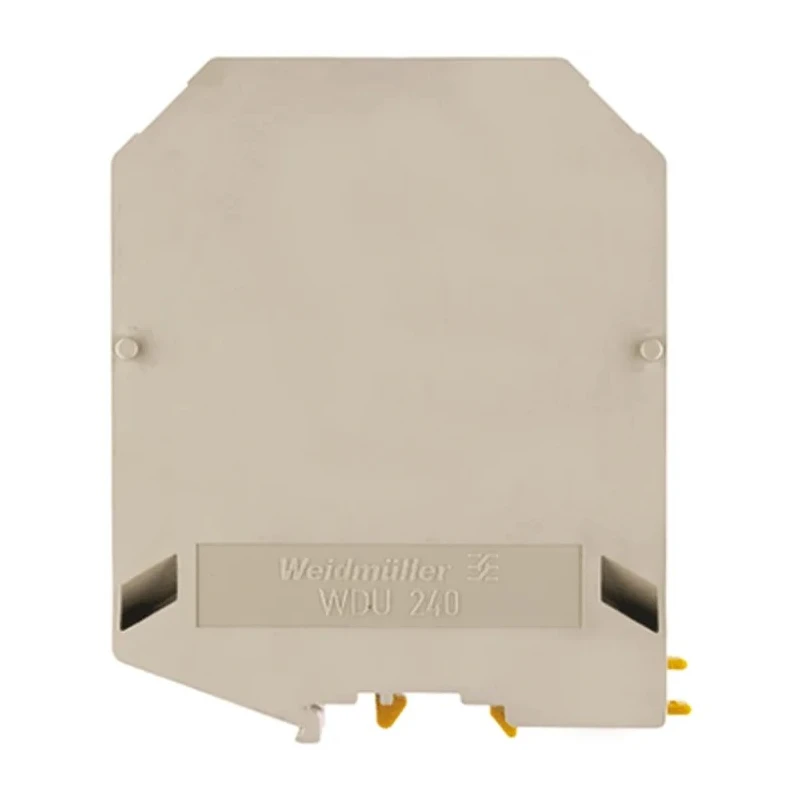

Weidmüller W Series Feed Through Terminal Block 1-Level Screw, Dark Beige, 1kV, 415A, 240mm², 70 mm² 1802780000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Weidmüller |
| Colour | Dark Beige |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Minimum Wire Size AWG | 2AWG |
| Maximum Wire Size AWG | 450AWG |
| Cable CSA | 240, 70mm² |
| Terminal Block Current | 415A |
Key Features
- The terminal block supports cables with a cable cross-sectional area of 240mm² and 70mm².
- It features a screw termination type for secure and reliable connections.
- Its nylon 6.6 construction allows continuous operation at temperatures up to 120°C and short-term 180°C.
- The block is self-extinguishing to UL94V-0 standards and free from cadmium and halogen.
- It offers snap-on mounting and uses yoke connection technology for operational safety.
- Highly reliable current bars made of 10 mm electrolytic copper ensure current loading above nominal rating.
- The terminal block operates effectively at temperatures ranging from -50°C to 120°C.
- Touch-proof design complies with BS 3042 for electrical safety.
Product Description
Weidmüller 1802780000 W Series Feed Through Terminal Block is a high-quality, screw clamp terminal block designed for industrial electrical installations requiring up to 1kV voltage and 415A current handling capacity. It belongs to the W Series and features a single-level screw termination with a dark beige nylon 6.6 housing, providing excellent thermal and electrical insulation properties.
This terminal block accommodates cable cross-sectional areas of 240mm² and 70mm², ensuring versatility in wiring options. The block is constructed with robust 10 mm electrolytic copper current bars to support current loadings exceeding nominal ratings, thus guaranteeing safe and reliable electrical conduction in industrial and commercial electrical distribution systems.
The design includes a snap-on mounting system compatible with symmetric “Top Hat” DIN rails (BS5584:1978, EN 50022), facilitating quick and secure installation. The terminal block also complies with BS 3042 touch-proof standards, enhancing operator safety during maintenance or inspection.
Manufactured from flame-retardant nylon 6.6 material, this feed-through terminal block withstands continuous operating temperatures up to 120°C, with a short-term tolerance up to 180°C. It is free of cadmium and halogen, aligning with modern environmental and safety regulations.
The W Series' yoke connection technology optimizes planning and operational safety in electrical connector assemblies. Its screw termination provides a reliable connection method suitable for industrial automation, power distribution, and control panel applications.
The terminal block supports cables with a cable cross-sectional area of 240mm² and 70mm². The block is suitable for mounting on symmetric Top Hat DIN rails. Operating temperature ranges from -50°C to 120°C internally. The product features snap-on mounting and screw connection.
Self-extinguishing housing rated UL94V-0 with halogen and cadmium free materials. Current bars are made of 10 mm electrolytic copper for enhanced conductivity and durability. Compliance with BS 3042 ensures touch-proof electrical safety.
Non-certified for hazardous areas, suitable for general industrial use. Manufactured in India. Explore other DIN Rail Terminal Blocks and connectors from Weidmüller at EnvMart for your industrial and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum current rating of 415A, making it suitable for high-load applications.
It is rated for a maximum voltage of 1kV, suitable for various industrial electrical applications.
It features a screw termination type, ensuring secure and reliable connections.
The operating temperature range is from -50°C to 120°C, allowing it to function effectively in various environments.
It is made from nylon 6.6, which is flame-retardant and self-extinguishing to UL94V-0 standards, ensuring safety and compliance with environmental regulations.
This model features a snap-on mounting system compatible with symmetric 'Top Hat' DIN rails, facilitating quick installation.
It complies with BS 3042 touch-proof standards, enhancing operator safety during maintenance or inspection.
The minimum wire size is 2AWG and the maximum is 450AWG, accommodating a wide range of wire gauges.
It uses yoke connection technology, which optimizes planning and operational safety in electrical connector assemblies.
This terminal block is manufactured in India, aligning with the brand's production standards.
It is suitable for industrial automation, power distribution, and control panel applications due to its robust design and specifications.
