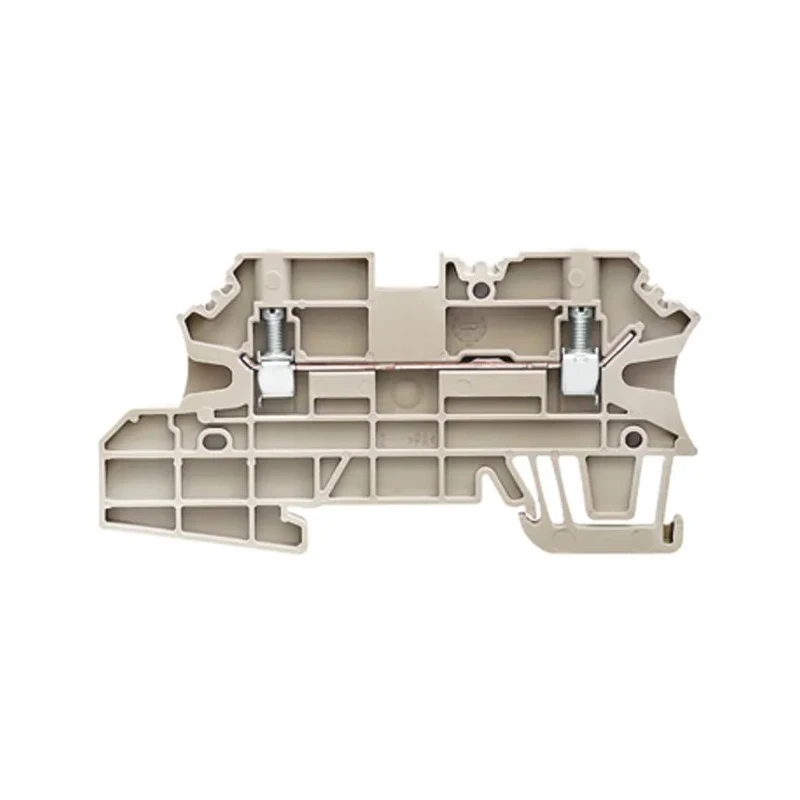

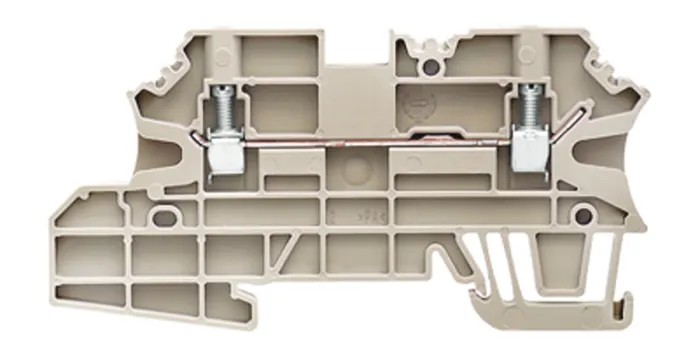

Weidmüller W Series Feed Through Terminal Block Brown, 2.5mm² Cable CSA, 1-Level, Screw Termination, 800V, 32A 1143070000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Brown |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 5.08mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 32A |
Key Features
- Compact and multifunctional terminal block for reliable signal routing and distribution.
- Constructed from flame-retardant nylon 6.6 with a continuous temperature rating of 120°C.
- Screw clamp terminals compatible with standard 'Top Hat' DIN rails.
- Wide range of labeling options and integrated shield connection for versatile applications.
- Current bars made from 10 mm electrolytic copper for superior current carrying capacity.
- Touch-proof in accordance with BS 3042 for enhanced safety.
- Suitable for industrial and electrical panel installations.
- Designed and manufactured in Romania with compliance to RoHS standards.
Product Description
Weidmüller 1143070000 W Series Feed Through Terminal Block is a high-quality brown feed-through terminal block engineered for industrial electrical and electronic applications. It provides a compact and multifunctional solution for routing and distributing electrical signals in control panels and junction boxes. This terminal block supports cable sizes of 2.5mm² and features a screw termination type suitable for 1-level wiring configurations.
Constructed from durable and self-extinguishing nylon 6.6 material, this terminal block allows continuous operation at temperatures up to 120°C, with short-term tolerance to 180°C. The terminals are compatible with the standardized 'Top Hat' DIN rail mounting system (BS5584:1978, EN 50022), ensuring easy integration into existing setups.
The current bars are made from 10 mm electrolytic copper, ensuring a high current capacity of 32A, which exceeds nominal ratings for extended durability and safety. The design also includes an integrated shield connection and offers numerous labeling options to enhance installation clarity and management.
With a pitch of 5.08mm and screw clamp termination type, the terminal block ensures secure wire connections. It is tested to be touch-proof according to BS 3042 standards, increasing user safety during operation.
Multi-functional feed-through terminal block optimized for compact and efficient installations. Constructed of flame-retardant nylon 6.6 with UL94V-0 self-extinguishing rating. Compatible with 'Top Hat' DIN rail mounting for easy assembly.
Electrolytic copper current bars provide robust current carrying capacity. Supports wire sizes from 26 AWG to 12 AWG (up to 2.5mm²). Operating voltage up to 800V and maximum operating temperature of 120°C. Designed for industrial, electronic, and electrical power distribution applications.
This terminal block is manufactured in Romania and complies with RoHS environmental standards, making it a responsible choice for modern electrical installations. Its combination of safety, reliability, and versatile features make it suitable for use in automation systems, electrical panels, and electronic device assemblies.
Explore more high-quality terminal blocks and connectors in the DIN Rail Terminal Blocks category on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum operating voltage of 800V.
It has a current rating of 32A, allowing for robust electrical connections.
This terminal block supports wire sizes from 26 AWG to 12 AWG, with a maximum cross-sectional area of 2.5mm².
It is constructed from flame-retardant nylon 6.6, which has a self-extinguishing rating of UL94V-0.
The terminal block can operate at temperatures ranging from -50°C to a maximum of 120°C.
Yes, it is compatible with the standardized 'Top Hat' DIN rail mounting system, ensuring easy integration into existing setups.
The pitch of this model is 5.08mm, which is standard for many terminal block applications.
This terminal block is designed for 1-level wiring configurations.
It is tested to be touch-proof according to BS 3042 standards, enhancing user safety during operation.
It is manufactured in Romania, ensuring compliance with RoHS environmental standards.
This model features a screw termination type, providing secure wire connections.
It is suitable for industrial, electronic, and electrical power distribution applications, particularly in control panels and junction boxes.
