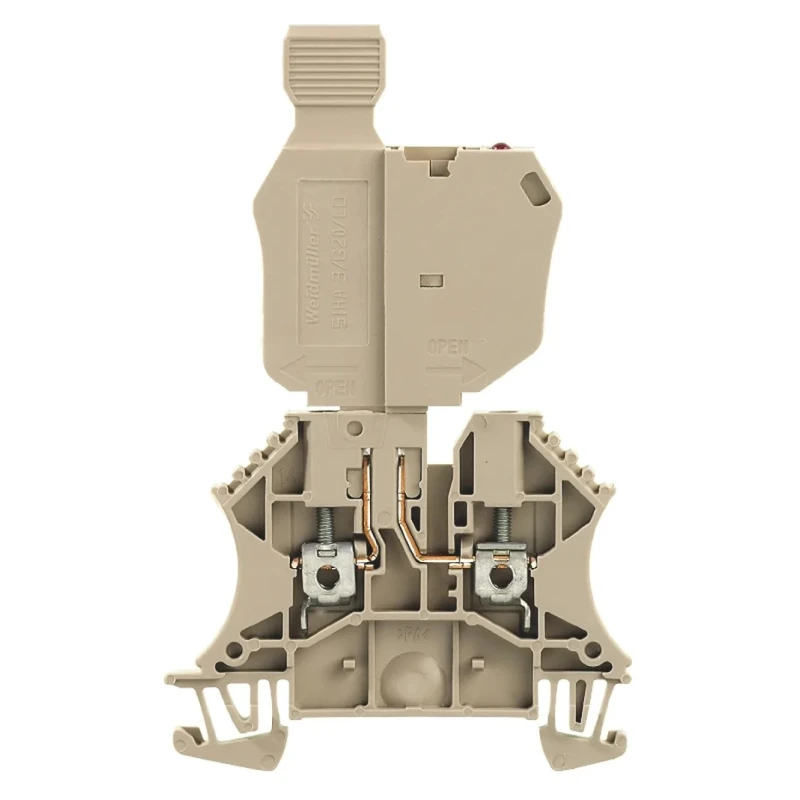

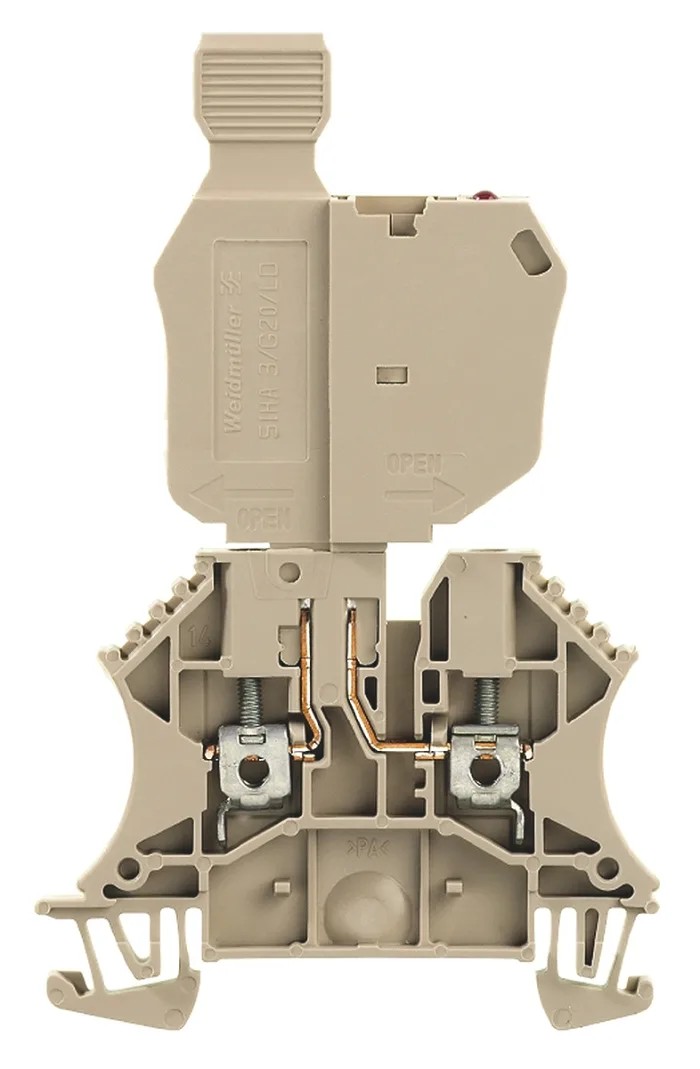

Weidmüller Beige 1-Level Fused DIN Rail Terminal 36V, 6.3A Screw Connection W Series 1763950000

Weidmüller 1763950000 W Series 1-Level Fused DIN Rail Terminal is a beige-colored screw connection terminal block designed for safe and reliable electrical connections in industrial and electronic applications. This fused DIN rail terminal supports operating voltages up to 36V and delivers a nominal terminal block current of 6.3A, making it suitable for low voltage fused protection requirements.

Manufactured from high-quality nylon 6.6 material, this terminal block exhibits excellent thermal stability with a continuous temperature rating of 120°C and a short-term rating of 180°C. Its material properties offer UL94V-0 self-extinguishing characteristics while being free from cadmium and halogen, ensuring compliance with modern safety and environmental requirements.

The screw connection design allows for secure wiring termination, compatible with wire sizes ranging from 12 AWG to 26 AWG. The terminal block features a pitch of 5.1 mm between adjacent terminals, optimizing space usage on the DIN rail. The current bars are constructed from 10 mm thick electrolytic copper, ensuring superior electrical conductivity and capable of handling currents beyond the nominal rating.

This terminal block is intended for mounting on symmetric 'Top Hat' DIN rails (BS5584:1978, EN 50022), commonly used in electrical enclosures and control panels. The product design includes touch-proof barriers in accordance with BS 3042 for operator safety during installation and maintenance.

The operational temperature range from -50°C to 120°C enables use in a variety of demanding industrial environments, from cold storage to production plants. This product is manufactured in Germany, ensuring high build quality and precision.

The terminal supports a fuse and is designed for 1 level mounting. Wire size range includes 12 AWG to 26 AWG for versatile wiring options. Compact pitch of 5.1 mm for space-efficient DIN rail installations. High operating temperature range enabling use in extreme environments.

Self-extinguishing nylon 6.6 construction compliant with UL94V-0 standards. Compatible with standard 35 mm symmetric Top Hat DIN rails. Robust electrolytic copper current bars ensure reliable current conduction. Touch-proof design enhances operator safety in electrical cabinets.

Suitable for various industrial, automation, and electrical distribution applications. Discover more products in the DIN Rail Terminal Blocks category on EnvMart for professional electrical and automation solutions.
