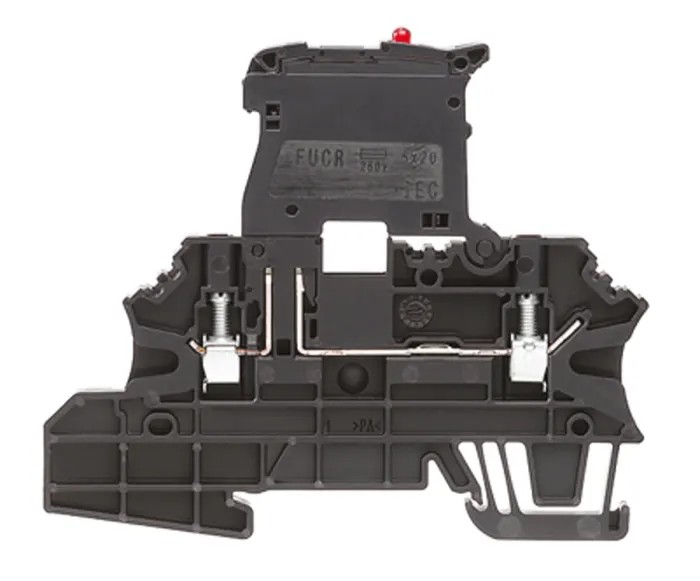

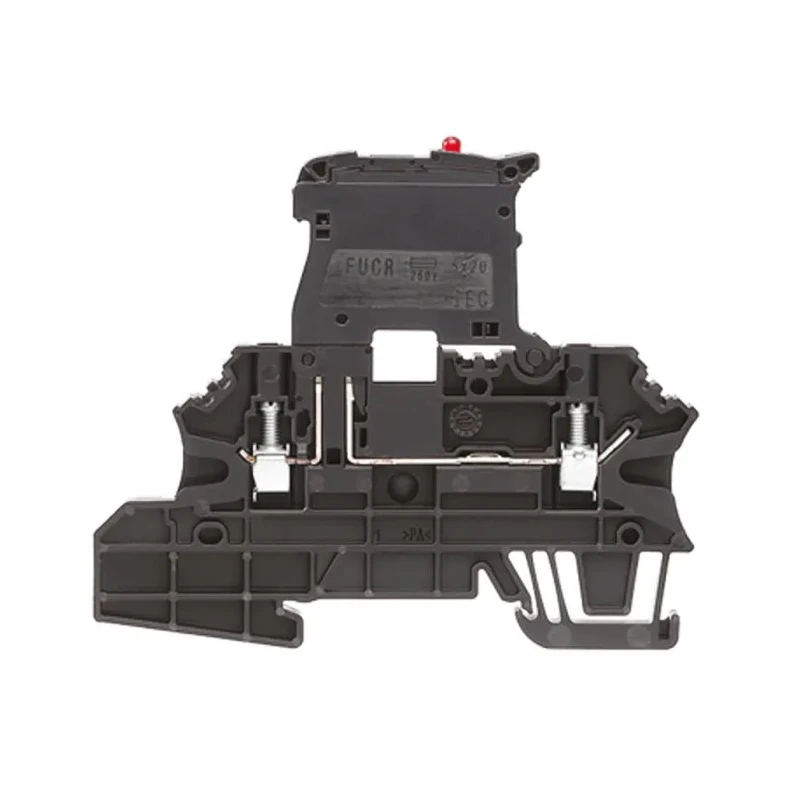

Weidmüller Black W Series Fused DIN Rail Terminal Screw Clamp 2.5mm², 1-Level, 36V, 6.3A 1162930000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 36V |
| Brand | Weidmüller |
| Colour | Black |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 5.08mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 6.3A |
Key Features
- Constructed for mounting on Top Hat DIN Rail with screw termination for secure connections.
- Rated for operating temperatures ranging from -50°C to 120°C ensuring durability in harsh environments.
- Compatible with wire sizes from 26 AWG up to 12 AWG and a pitch of 5.08mm.
- Manufactured from nylon 6.6 with self-extinguishing UL94V-0 rating for safety compliance.
- Current bars made from 10 mm electrolytic copper providing reliable current loading capacity.
- Suitable for a variety of industrial and electrical panel applications requiring fused protection.
- Integrated shield connection and multiple labelling options enhance installation flexibility.
- Designed and produced in Romania, ensuring strict manufacturing standards.
Product Description
Weidmüller 1162930000 W Series Fused DIN Rail Terminal is engineered for reliable electrical circuit protection and signal routing in industrial environments. Featuring a black nylon 6.6 housing, this terminal block supports wire cross sections of 2.5mm² and is equipped with a single fuse level for current ratings up to 6.3A and a nominal voltage of 36V.
The terminal uses screw clamp technology suitable for mounting on standard symmetric Top Hat DIN rails (BS5584:1978, EN 50022). Its compact design saves space in control cabinets while providing robust connection and fuse disconnect functionality all in one unit.
The housing material ensures a continuous operating temperature rating up to 120°C with short-term tolerance up to 180°C and meets UL94V-0 self-extinguishing standards. The current bar construction from 10 mm electrolytic copper guarantees enhanced current carrying capacity beyond nominal ratings, while the product remains touch-proof compliant with BS 3042.
Applications for this fused DIN rail terminal include electrical distribution, control panels, and signal interfacing in industrial automation, manufacturing, power distribution, and building installations. The fuse integration facilitates fast circuit protection and maintenance in complex control systems.
Compact 1-level fuse terminal block combining feed-through and disconnect functions. Screw clamp termination ensures secure and reliable electrical connections. Wide operating temperature range (-50°C to 120°C) supports diverse environmental conditions.
Pitch of 5.08mm allows for dense terminal arrangement in control panels. Multiple labelling and shield connection options facilitate system identification and integration. Manufactured in Romania under stringent quality standards.
Choose the Weidmüller 1162930000 for dependable fused DIN rail terminal solutions supporting a variety of electrical network protection needs. Explore more products in our DIN Rail Terminal Blocks category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a current rating of 6.3A.
It is rated for a nominal voltage of 36V.
This terminal is compatible with wire sizes from 26 AWG to 12 AWG, with a cable cross-section of 2.5mm².
The operating temperature range is from -50°C to 120°C.
It uses screw clamp technology for secure connections.
It is designed for mounting on standard symmetric Top Hat DIN rails.
The pitch of this terminal block is 5.08mm.
It is constructed from black nylon 6.6, which has a self-extinguishing UL94V-0 rating.
This terminal block is manufactured in Romania.
It is suitable for electrical distribution, control panels, and signal interfacing in industrial automation and power distribution.
It meets the self-extinguishing standards of UL94V-0 and is touch-proof compliant with BS 3042.
Yes, it features a single fuse level for circuit protection and maintenance.
