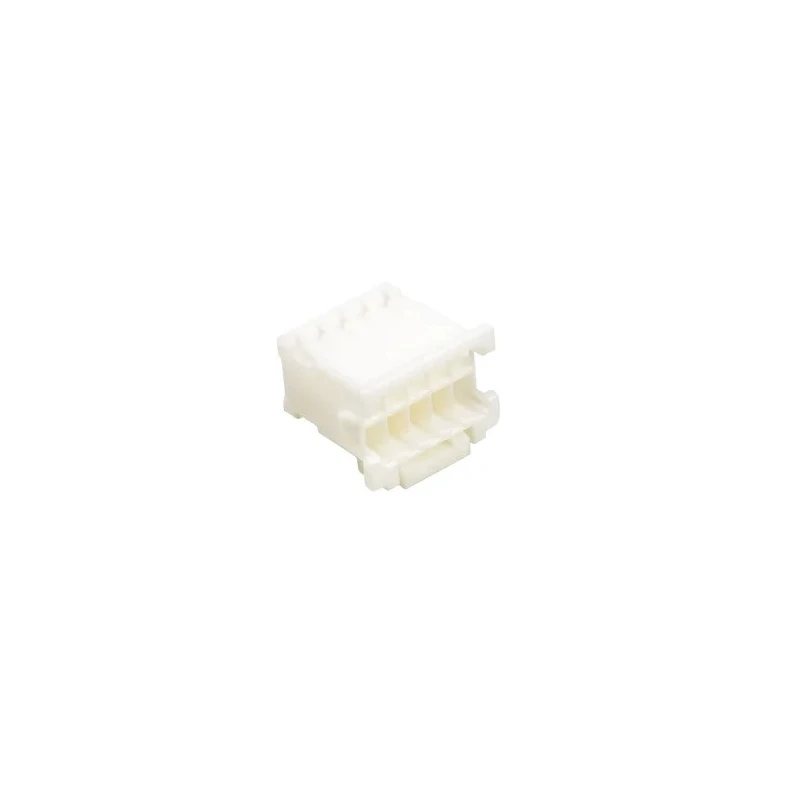

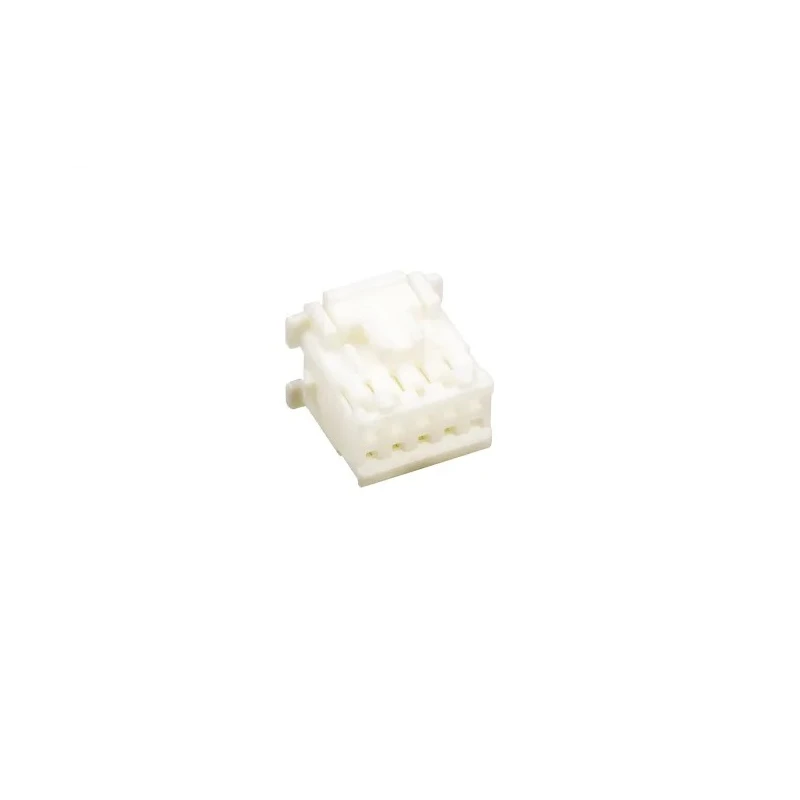

JST PADP Female Connector Housing, 2 mm Pitch, 10 Way, 2 Row Straight PADP-10V-1-S

JST PADP-10V-1-S Female Connector Housing is a high-quality 10 Way, 2 Row straight connector housing with a 2 mm pitch, ideal for compact and high density electronic applications. It is designed to interface with SPH Series crimp contacts and is utilized primarily in wire-to-board connections.

This Connector Housing features a robust polyamide housing material rated at UL 94V-0, ensuring flame retardancy and mechanical durability. The housing dimensions include a length of 12 mm and a width of 10 mm, suitable for tight assembly spaces.

The dual row, 10 contact design enables high density wiring configurations while maintaining secure locking and polarization, reducing the risk of misconnection. The straight orientation of the connector facilitates organized cable routing.

This model is not currently associated with any formal standards or approvals but is engineered for consistent electrical continuity through its long dimple contacts, ensuring reliable performance even under adverse conditions.

Common industrial and commercial applications include electronics manufacturing, power connectors in control systems, and other use cases requiring dependable wire housing solutions.

Designed for high density applications with dual row configuration. Constructed using durable polyamide housing material rated at UL 94V-0. Compatible with SPH Series crimp contacts and provides secure locking and polarization.

Connector length measures 12 mm with a width of 10 mm for compact design. Orientation is straight for ideal cable management and installation. Suitable for wire-to-board connection demands in electronic assemblies. No additional standards or approvals are indicated for this model.

Facilitates reliable and continuous electrical contact with long dimples under varying conditions. Explore the Electronics & Electricals categories for complementary connectors and electronic components at EnvMart.
