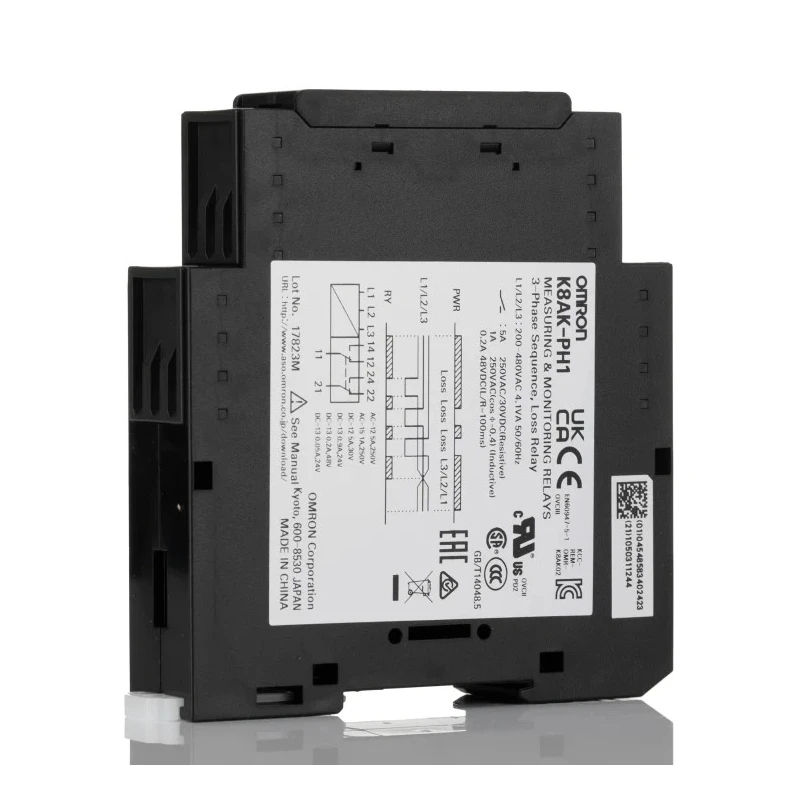

Omron 3 Phase Monitoring Relay 200/400 V AC Monitor Range, DPDT Contact, DIN Rail Mount K8AK-PH1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Function | Phase Sequence |
| Length | 100mm |
| Model | K8AK-PH1 |
| IP Rating | IP40, IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | K8AK-PH |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | CCC, CE, CSA, cURus |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 30 V ac |
| Supply AC Voltage | 200, 400V ac |
| Monitoring Voltage Range | 200/400 V ac |
Key Features
- Monitors phase sequence and detects phase loss in three-phase systems.
- Features DPDT contact configuration for reliable switching.
- Compact DIN rail mount design simplifies installation.
- Operating voltage range includes 200 V AC, 400 V AC, and 30 V AC supply DC voltage.
- Durable PC and ABS housing offers impact resistance in harsh industrial environments.
- Integrated LED indicator enables easy status monitoring.
- Fast response time of 0.1 seconds for precise fault detection.
- Mechanical life rated up to 10 million operating cycles for long-term reliability.
Product Description
Omron K8AK-PH1 is a 3 phase monitoring relay designed for industrial motor protection and automation safety. It monitors phase sequence and phase loss within a 200/400 V AC monitoring voltage range to prevent reverse motor operation and breakdowns. The DPDT contact configuration ensures reliable switching operations suitable for a variety of industrial control applications.
The relay features a compact design for easy DIN rail mounting and is housed in a robust PC and ABS enclosure that provides impact resistance and durability in harsh industrial environments. An integrated LED indicator offers clear visual indication of operating status, enabling efficient troubleshooting and monitoring.
With a fast operating time of 0.1 seconds, the relay quickly detects faults to maintain system integrity. It supports an operating temperature range from -20°C to +60°C and offers a mechanical life expectancy of up to 10 million operating cycles, ensuring long-term reliability. The device includes safety protections such as IP40 rating for the housing and IP20 finger safety for terminals.
This monitoring relay is ideal for use in conveyor systems, assembly lines, and the transportation industry. It is designed to withstand electrical noise and mechanical stresses commonly found in industrial settings. The Omron K8AK series is known for its precision and dependable motor protection capabilities.
Monitors phase sequence and loss to prevent motor damage. DPDT contact configuration for dual switching outputs. DIN rail mount for quick and secure installation. Robust PC and ABS housing with IP40 and IP20 ratings. Integrated LED indicator for operating status.
Fast 0.1-second operating time for fault correction. Wide operating temperature range supports diverse environments. Long mechanical life with 10 million cycles. Applications include conveyor systems, assembly lines, and transportation.
Choose the Omron K8AK-PH1 Monitoring Relay for dependable industrial motor protection and enhanced automation safety. Explore more industrial relays and monitoring devices at EnvMart to find solutions tailored to your electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The K8AK-PH1 has a monitoring voltage range of 200/400 V AC.
It features a DPDT (Double Pole Double Throw) contact configuration for reliable switching operations.
The maximum operating temperature for this relay is 60°C.
This model is designed for DIN rail mounting, allowing for quick and secure installation.
The K8AK-PH1 has a fast response time of 0.1 seconds for precise fault detection.
The dimensions of this model are 90 mm in height, 100 mm in length, and 22.5 mm in width.
The contact current rating for the K8AK-PH1 is 5A.
This monitoring relay supports a 3-phase electrical system.
It is housed in a robust PC and ABS enclosure that offers impact resistance in harsh environments.
The K8AK-PH1 has an IP40 rating for the housing and an IP20 rating for terminal finger safety.
This relay complies with CCC, CE, CSA, and cURus standards and approvals.
It is suitable for use in conveyor systems, assembly lines, and the transportation industry.
