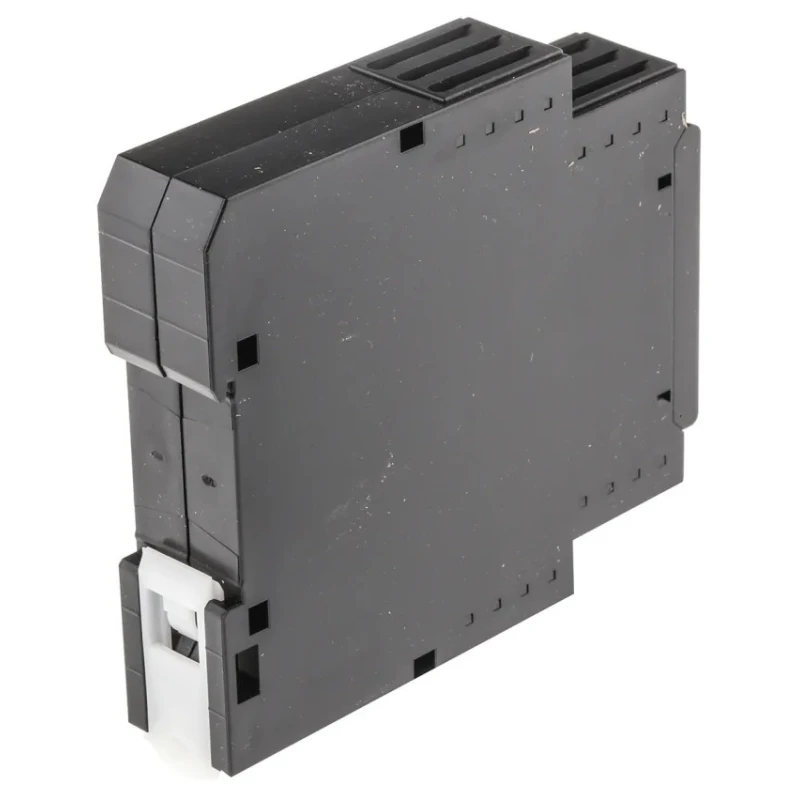

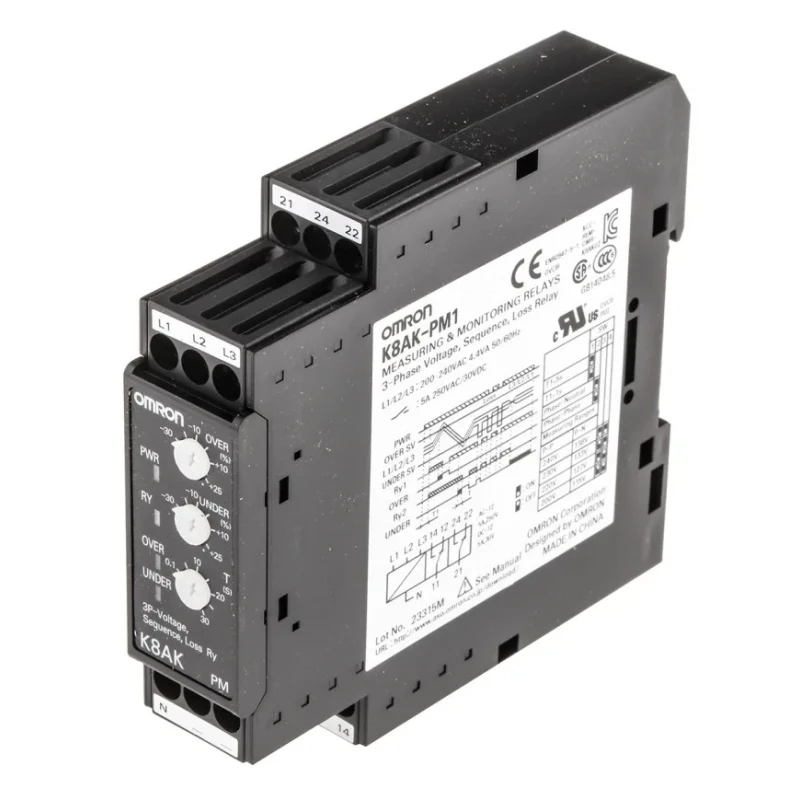

Omron 3 Phase Monitoring Relay 0 V AC Monitor Range SPDT DIN Rail Mount 230V AC 240V AC 30V AC K8AKPM1200240VAC

Omron K8AKPM1200240VAC Monitoring Relay is a critical industrial device designed to continuously supervise three-phase electrical power supplies. It features SPDT (Single Pole Double Throw) contact configuration and mounts easily onto DIN Rails, making it highly suitable for industrial electrical panels.

With a monitoring voltage range starting at 0 V AC, this relay safeguards circuits against common faults such as overvoltage, undervoltage, phase loss, and incorrect phase sequence. The unit supports supply AC voltages of 230 V and 240 V AC alongside a supply DC voltage input of 30 V AC.

The relay is configurable for both 3-phase 3-wire and 4-wire power supplies via DIP switch settings, enabling versatile application in various industrial setups. LED indicators provide clear real-time output status, facilitating straightforward diagnostics and monitoring.

Designed for robust use, it operates within a temperature range of -20°C to +60°C and measures 100 mm in length, 22.5 mm in width, and 90 mm in height, optimizing space on DIN rail installations. Rated for a switching voltage of 250 V AC and contact current of 5 A, it complies with international standards including UL 508, EN 60947-5-1, and RoHS, ensuring reliability and environmental compliance.

This monitoring relay is widely used in industrial facilities to protect electrical motors and automation systems by detecting phase sequence irregularities and phase loss, preventing damage to expensive and sensitive equipment. The relay allows adjustable response times between 0.1 and 30 seconds, providing tailored protection speeds as per operational requirements.

Monitors overvoltages and undervoltages with separate relays for precise equipment protection. Phase loss and phase sequence detection improves operational reliability and safety. Configurable for different phase wiring types via DIP switches for versatile application.

LED indicators give clear visual feedback of the relay status. Wide operating temperature range suited for harsh industrial environments. Compact and space-saving DIN rail mount design. Compliance with leading industry standards ensures safety and quality.

Adjustable response times enable rapid intervention in case of electrical anomalies. Supports industrial automation and motor control applications requiring reliable monitoring.

This Omron Monitoring Relay is an essential component for industrial, manufacturing, HVAC, and automation system applications seeking to protect electrical installations from power supply faults. Browse EnvMart's wide range of Monitoring Relays and electrical components for comprehensive industrial solutions.
