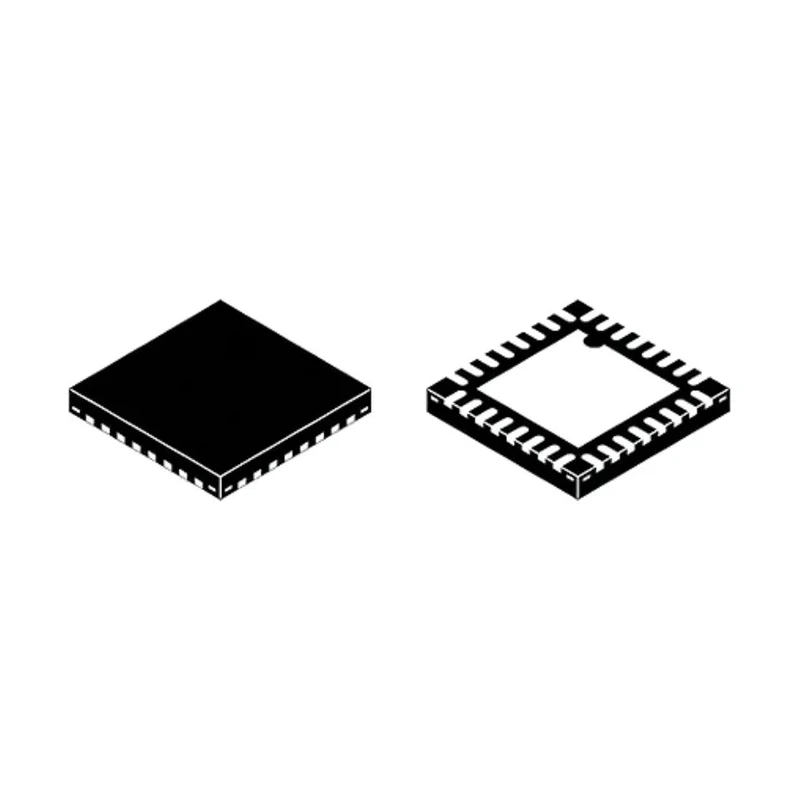

Texas Instruments RFID Module TRF7960ARHBT OOK ASK 13.56 MHz 5.5V TRF7960ARHBT

Texas Instruments TRF7960ARHBT RFID Module is an integrated analogue front end and data-framing system optimized for 13.56 MHz RFID reader systems, operating at a supply voltage up to 5.5 V. This RF module supports OOK and ASK modulation techniques and provides a maximum RF data rate of 848 kbps. It features a surface mount design with compact physical dimensions of 5.15 mm length, 5.15 mm width, and 0.95 mm height, making it suitable for integration into sophisticated electronic applications.

The module includes dual receiver inputs with AM and PM demodulation capabilities, a user-selectable receiver band-pass filter, and fully integrated protocol handling to facilitate reliable communication with tags. It operates over a wide temperature range from -40°C to 110°C, ensuring robust performance in industrial and commercial environments.

Host communication is supported via both parallel and serial SPI interfaces, offering flexible connectivity for various control systems. The TRF7960ARHBT supports standards including ISO 15693, ISO 18000-3, and Tag-it™ protocols, making it compatible with many RFID applications.

This RFID module is ideal for industrial uses such as secure access control, product authentication, contactless payment systems, and medical device integrations. Its high output power of 23 dBm ensures excellent read range and signal integrity.

Supports modulation techniques OOK and ASK for flexible communication. Operates at a frequency of 13.56 MHz suitable for RFID applications. Maximum RF data rate of 848 kbps for efficient data transmission. Surface mount type module with compact dimensions 5.15 mm x 5.15 mm x 0.95 mm.

Operates within a voltage range of 2.7V to 5.5V for versatile powering options. Wide operating temperature range from -40 to 110°C for industrial reliability. Interface type is SPI compatible with both parallel and serial host communication.

Maximum RF output power of 23 dBm enhances read range performance. Integrated protocol handling with adjustable ASK modulation and band-pass filtering. Compliant with ISO 15693, ISO 18000-3, and Tag-it™ RFID standards.

EnvMart offers this Texas Instruments RFID Module TRF7960ARHBT as a high-performance component for RFID applications requiring secure, efficient, and reliable wireless identification technology.
