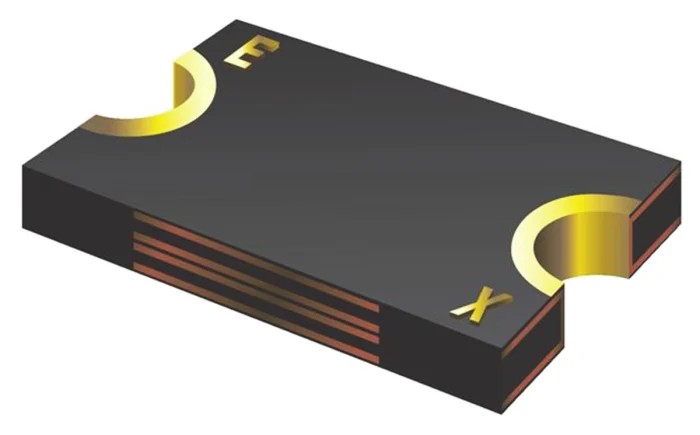

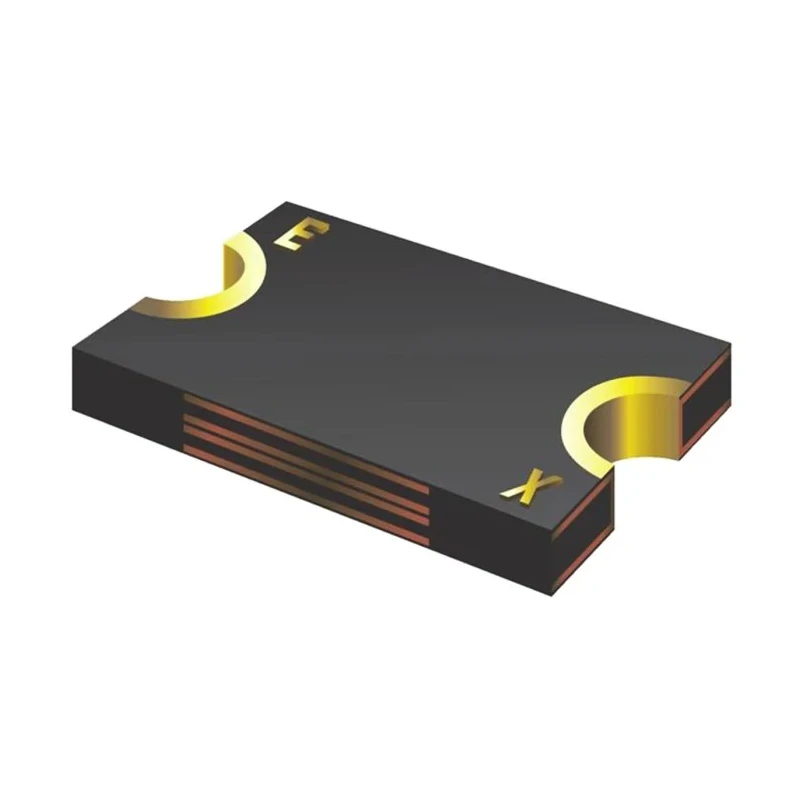

Bourns Resettable Fuse 3A 24V High Power Surface Mount MF-LSMF300/24X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V |
| Brand | Bourns |
| Height | 1.6mm |
| Length | 7.98mm |
| Model | MF-LSMF300/24X-2 |
| Width | 5.44mm |
| Current Rating | 20A |
| Series | MF-LSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 3121 |
| Trip Current | 5.2A |
| Power Dissipation | 1.5W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | RoHS |
| Time to Trip | 5s |
| Hold Current | 3A |
| Minimum Resistance | 0.02Ω |
| Maximum Resistance | 75mΩ |
| RS PRO 3 A Resettable Fuse, 24V dcRS Stock No. | 279-6768Brand: RS PRO |
Key Features
- High current rating of 20A for robust overload protection.
- Low-profile surface mount design suitable for automated assembly.
- Electroless nickel immersion gold plated terminals for reliable connections.
- Operating temperature range from -40°C to 85°C ensures performance in varied environments.
- Power dissipation of 1.5W supports effective heat management.
- RoHS compliant and halogen-free for environmental safety.
- Designed for thousands of automatic reset cycles without maintenance.
- Compatible with both Pb and Pb-free solder reflow profiles.
Product Description
Bourns MF-LSMF300/24X-2 is a high power, low profile resettable fuse designed for protection of electrical and electronic circuits against excessive current. Operating at 3A hold current and 24V, this surface mount fuse automatically switches from a low resistance state to a high resistance state during overloads or short circuits, and resets when the fault condition clears and power is removed.
The fuse offers a high current rating of 20A and trip current of 5.2A with a trip time of 5 seconds, ensuring reliable protection. Its electroless nickel immersion gold plated terminals provide excellent connectivity and durability. Compact dimensions (7.98mm x 5.44mm x 1.6mm) enable space-saving design and compatibility with automated PCB assembly using Pb and Pb-free solder reflow profiles.
Operating temperature range from -40°C up to 85°C allows use in demanding environments, while a power dissipation rating of 1.5W aids thermal management. The fuse is RoHS compliant and halogen-free, supporting environmentally responsible manufacturing.
This maintenance-free resettable fuse is capable of thousands of automatic reset cycles, eliminating the need for fuse holders and replacement, providing cost and time savings. Typical applications include security systems, power supplies and transformers, automotive and medical devices, instrumentation and control, computers and peripherals, audio visual and telecommunications equipment.
High current rating of 20A for overload protection. Automatic reset capability for maintenance-free operation. Compact surface mount design for automated assembly. Wide operating temperature range from -40°C to 85°C. Electroless nickel immersion gold plated terminals for reliable connections.
RoHS compliant and halogen-free for environmental safety. Power dissipation rating of 1.5W for thermal efficiency. Compatible with Pb and Pb-free solder reflow profiles. Compact dimensions of 7.98mm (L) x 5.44mm (W) x 1.6mm (H).
Ideal for security, automotive, medical, and telecommunications applications.
Explore the full Bourns range of Resettable Fuses and other electronics protection solutions on EnvMart to find components tailored to your industrial, automotive, or consumer electronics project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 3A.
The maximum operating temperature for this model is 85°C.
The trip current of this fuse is 5.2A.
The dimensions of this resettable fuse are 7.98mm in length, 5.44mm in width, and 1.6mm in height.
The power dissipation rating of this fuse is 1.5W.
Yes, this resettable fuse is RoHS compliant and halogen-free, ensuring environmental safety.
The time to trip for this model is 5 seconds.
The terminals of this fuse are made from electroless nickel immersion gold plated material, providing reliable connections.
The minimum operating temperature for this resettable fuse is -40°C.
This fuse comes in a reel package type, suitable for automated assembly.
This model is suitable for applications such as security systems, power supplies, automotive devices, and telecommunications equipment.
The maximum current rating of this resettable fuse is 20A, providing robust overload protection.
