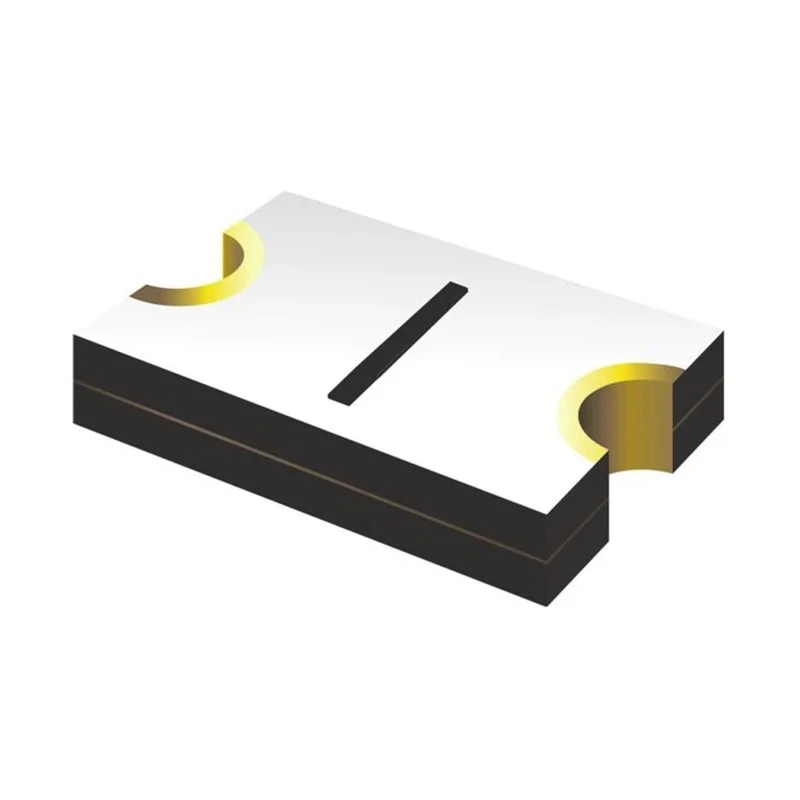

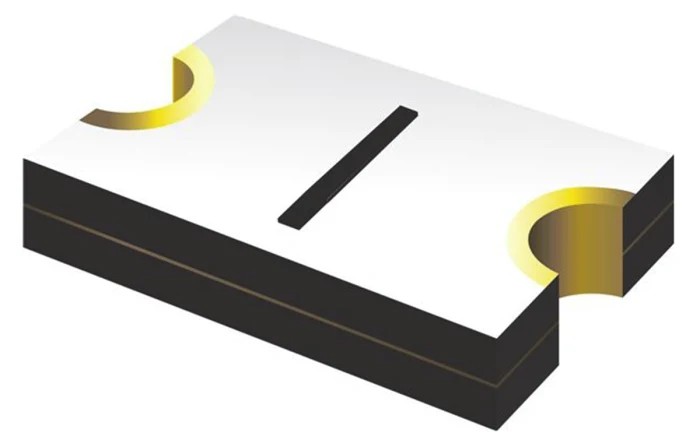

Bourns Resettable Fuse 15V 0.1A Hold Current 0603 Surface Mount MF-FSMF010X-2

Bourns MF-FSMF010X-2 Resettable Fuse is designed for protecting electrical and electronic circuits against overcurrent and short circuit conditions. Rated at 15V with a hold current of 0.1A, this fuse rapidly switches from low to high resistance under fault conditions and automatically resets when the fault clears, offering maintenance-free protection for thousands of cycles.

This compact fuse features a small 0603 footprint measuring 1.85mm in length, 1.05mm in width, and 0.65mm in height, making it ideal for modern, dense circuit boards. The surface mount technology and gold plated nickel terminals ensure excellent reliability and easy assembly.

With a trip current of 300mA and fast 1-second trip time, the MF-FSMF010X-2 provides rapid fault reaction protecting sensitive components. It operates efficiently within a temperature range of -40°C to 85°C and sustains power dissipation of 0.5W. The fuse complies with industry RoHS directive, UL certification, and TÜV approval, ensuring high standards of safety and environmental compliance.

Applications include USB port protection, PC motherboards, batteries, mobile phones, PDAs, digital cameras, security systems, power supplies, automotive and medical equipment, instrumentation and control systems, and telecommunications devices. Its compact low-profile design saves board space while providing robust overcurrent protection for industrial, commercial, and consumer electronic applications.

Compact 0603 package size ideal for space-saving circuit designs. Surface mount technology ensures easy PCB assembly. Trip current of 300mA with fast 1 second time to trip for rapid fault response. Gold plated nickel terminals provide excellent electrical conductivity and durability.

Operating temperature range from -40°C to 85°C suits diverse environments. Power dissipation rated at 0.5W for efficient thermal management. Meets RoHS, UL (E174545), and TÜV (R 50171531) standards for quality and safety.

Designed for applications such as USB port protection, PC motherboards, mobile devices, and more. Explore additional protective components and electronic fuses at EnvMart for your circuit design and manufacturing needs.
