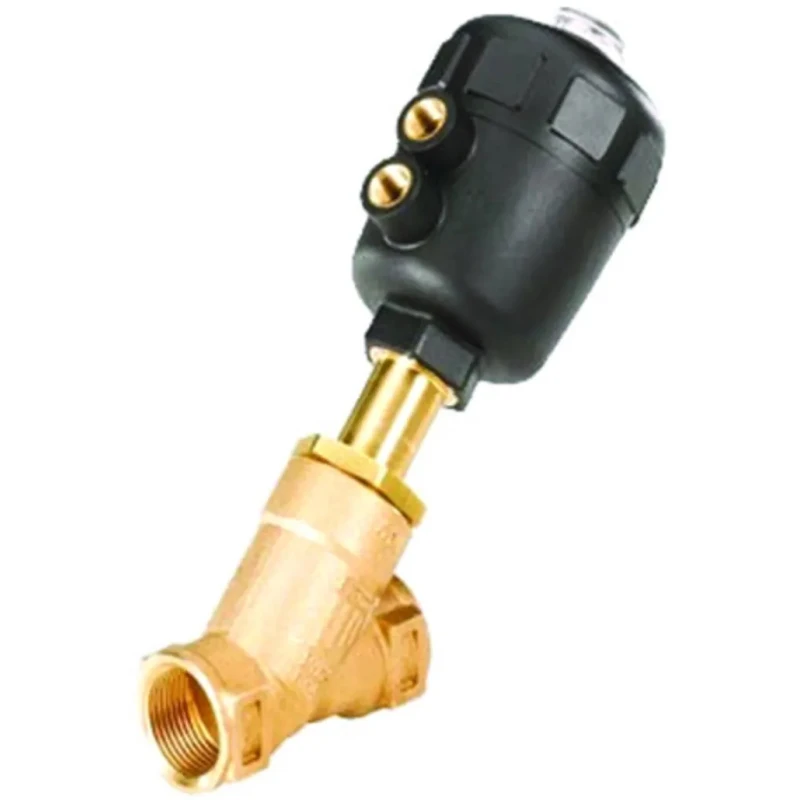

Burkert Angle Type Pneumatic Actuated Valve 2 in Stainless Steel 10 bar 001593

Burkert 001593 Angle Type Pneumatic Actuated Valve is a high-quality industrial valve designed for precise fluid control in demanding applications. It features a 2-inch threaded inlet and outlet connection with a 2/2-way angle seat design, enabling efficient flow with under-seat flow configuration to minimize water hammer damage. The valve operates normally closed (NC) with a spring return mechanism, rated for a maximum operating pressure of 10 bar.

Constructed from stainless steel, the valve offers durability and corrosion resistance for harsh environments. The operating temperature range is between -10°C and 60°C, making it suitable for a variety of pneumatic and industrial processes.

The actuator casing is made from polyamide and equipped with a PTFE seal, enhancing valve performance and longevity. Additional features include self-adjusting spindle packing glands and a wiper seal for reliable sealing over extended use.

This valve is engineered for seamless integration into pneumatic actuated valve systems in industrial, laboratory, fluid power, HVAC, and process automation settings. Manufactured in Germany, it adheres to strict quality standards, ensuring consistent performance.

Valve features a 2/2-way normally closed (NC) configuration with threaded inlet and outlet connections. Constructed from stainless steel for durability and corrosion resistance. Operates reliably within temperature range of -10°C to 60°C.

Maximum operating pressure rating of 10 bar ensuring suitability for industrial fluid control. Equipped with spring return and G standard outlet thread for secure connection. Valve design includes under-seat flow to reduce water hammer effects during operation.

Actuator casing made from polyamide with PTFE seal for enhanced performance. Self-adjusting spindle packing glands and wiper seal improve long-term sealing reliability. Ideal for use in industrial, laboratory, fluid power, and process automation applications.

Manufactured in Germany with rugged and compact design for robust performance.

This Pneumatic Actuated Valve is suitable for diverse industrial applications where reliable fluid control, durability, and compact design are critical. Explore more pneumatic valve solutions and valves from Burkert in the EnvMart catalog.
