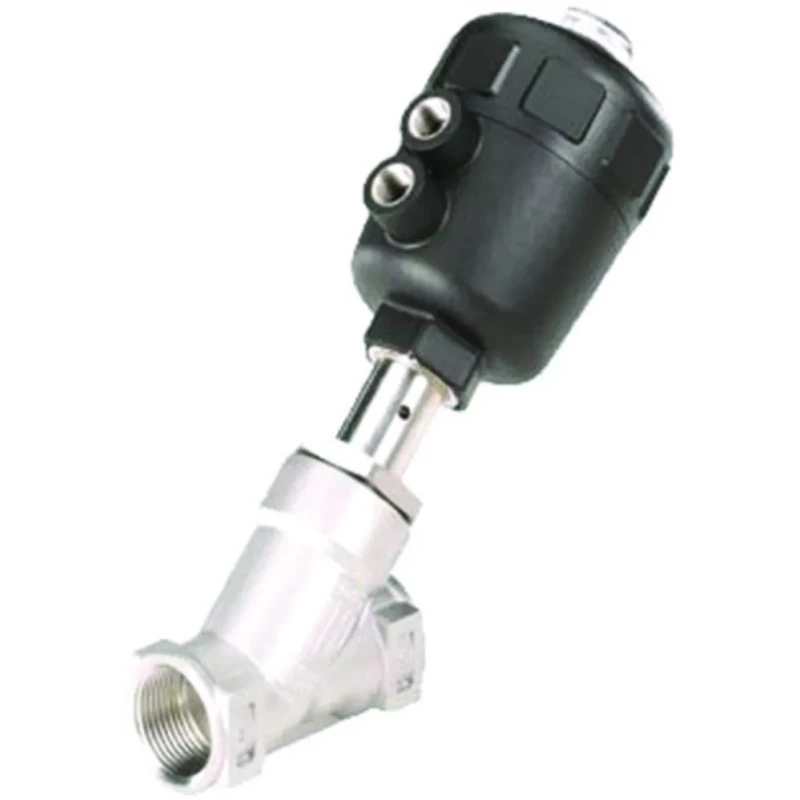

Burkert Angle Type Pneumatic Actuated Valve Stainless Steel Body Threaded 2 in 10 bar 001601
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Maximum Operating Pressure | 10 bar |
| Inlet Connection Type | Threaded |
| Model | 001601 |
| Valve Type | Angle |
| Ambient temperature range | - 10 to +60°C |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Stainless Steel |
| Inlet Port Size | 2 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
| Media temperature range | - 10 to +180°C |
| Burkert Angle type Pneumatic Actuated Valve, 10 bar 2 inBrand | Burkert |
Key Features
- Angle seat valve design suitable for high flow rates.
- 2-way pneumatically operated for precise control.
- Stainless steel valve body compatible with aggressive fluids.
- Operating temperature range from -10°C to 60°C ambient.
- Media temperature range up to 180°C with PTFE seals.
- Spring return type with normally closed valve position.
- Threaded inlet and outlet connections with G thread standard.
- Polyamide actuator casing provides durability and corrosion resistance.
Product Description
Burkert 001601 is a high-quality angle type pneumatic actuated valve designed for industrial fluid control applications. Featuring a robust stainless steel body, this valve supports threaded 2 inch inlet and outlet connections, rated for a maximum operating pressure of 10 bar. The 2/2-way valve offers a normally closed (NC) default position with a spring return mechanism, ensuring fail-safe operation.
Built for durability and versatility, the valve body is suitable for use with neutral gases, air, steam, water, oil, and even aggressive fluids due to the stainless steel construction combined with PTFE seals. The polyamide actuator casing further enhances reliability by protecting internal components from corrosion and wear.
The valve operates efficiently within an ambient temperature range of -10°C to +60°C, and it can handle media temperatures up to 180°C, making it suitable for demanding industrial environments. The inclusion of self-adjusting spindle packing glands and a wiper seal minimizes leakage and maintenance downtime, ensuring long service life.
This valve is engineered for high flow rates in a compact design, making it suitable for various industrial uses such as chemical processing, water treatment, HVAC systems, and manufacturing plants where precise pneumatic control is required.
Angle seat valve design suitable for high flow rates. 2-way pneumatically operated for precise control. Stainless steel valve body compatible with aggressive fluids. Operating temperature range from -10°C to 60°C ambient.
Media temperature range up to 180°C with PTFE seals. Spring return type with normally closed valve position. Threaded inlet and outlet connections with G thread standard. Polyamide actuator casing provides durability and corrosion resistance.
Self-adjusting spindle packing glands reduces maintenance needs. Ideal for use with gases, steam, water, and oils in industrial applications. Country of origin: Germany. Discover more Pneumatic Actuated Valves and components designed for reliability and performance at EnvMart Industrial Supplies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
The ambient temperature range for this model is from -10°C to +60°C.
This valve can handle media temperatures up to 180°C.
This model is an angle type pneumatic actuated valve.
The default valve position is normally closed (NC).
The valve body is made of stainless steel, and it features PTFE seals for compatibility with aggressive fluids.
It has threaded inlet and outlet connections with a G thread standard.
The spring return mechanism ensures that the valve returns to its normally closed position when not actuated, providing fail-safe operation.
This valve is suitable for various industrial applications including chemical processing, water treatment, HVAC systems, and manufacturing plants.
This valve is manufactured in Germany.
The valve includes self-adjusting spindle packing glands and a wiper seal to reduce leakage and maintenance downtime.
The inlet port size of this valve is 2 inches.
