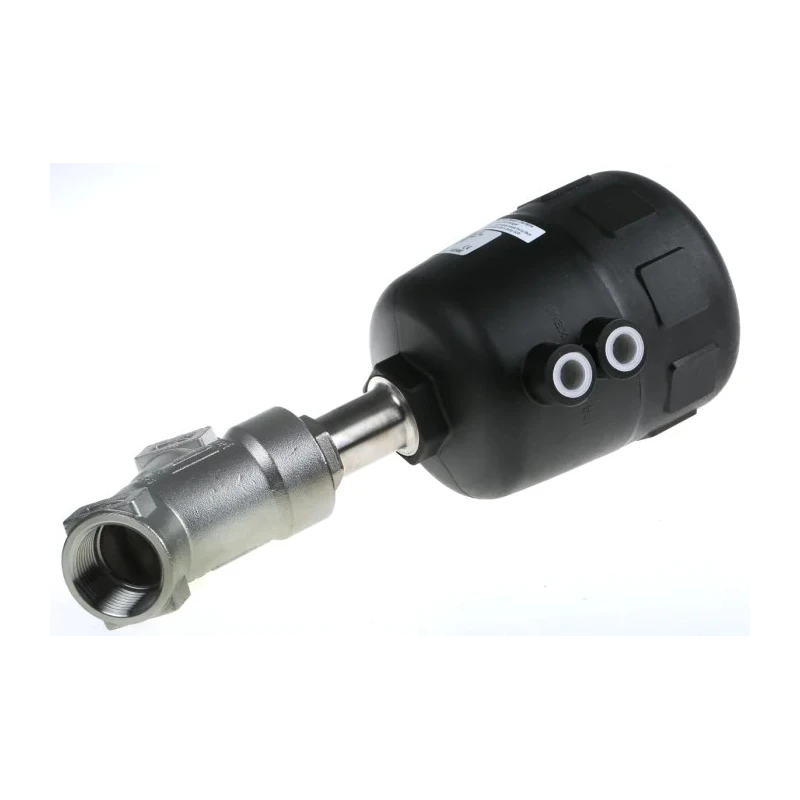

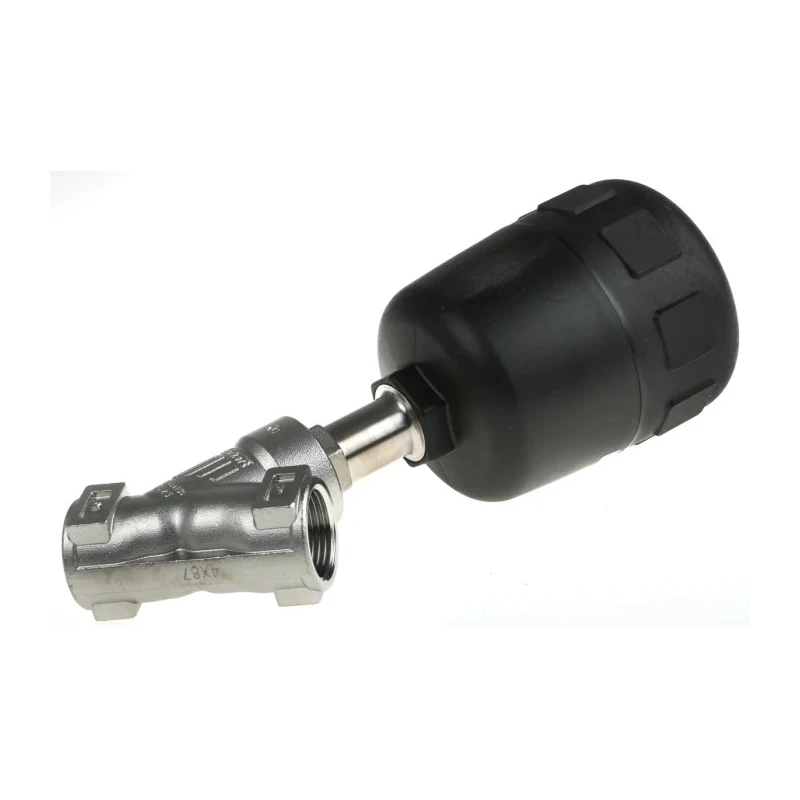

Burkert Stainless Steel Angle Type Pneumatic Actuated Valve 1 in Threaded Connections 16 bar 186488

Burkert 186488 Pneumatic Actuated Valve is a high-quality stainless steel angle type valve designed for industrial fluid control applications. It features 1 inch threaded inlet and outlet connections conforming to G thread standards and supports a maximum operating pressure of 16 bar, making it suitable for demanding process environments.

The valve is normally closed (NC) and utilizes a spring return actuator for dependable operation. Its robust stainless steel construction provides excellent resistance to corrosion and mechanical wear, ensuring reliable service life. Operating temperature ranges from -10°C to 60°C, with media temperature rated up to 180°C, allowing it to handle a variety of fluids safely.

This 2/2-way valve employs an angle seat design with under-seat flow, promoting a higher flow rate of up to 18 cubic meters per hour through a 25mm orifice. The compact actuator features a polyamide casing and PTFE seals for durability and chemical resistance. Live loaded packing and self-adjusting spindle packing glands help maintain a tight seal and reduce leakage, enhancing maintenance intervals.

The valve also incorporates wiper seals and an anti-water hammer design to protect piping systems from pressure surges, making it ideal for fluid power and automation systems in manufacturing, HVAC, water treatment, and chemical processing industries.

Made in Germany, this Burkert pneumatic valve assures robust quality and precision engineering. Its rugged and compact envelope allows easy installation and integration into automated pneumatic systems requiring reliable flow control.

The valve features normally closed (NC) configuration for effective flow control. Constructed with corrosion-resistant stainless steel for enhanced durability. Spring return actuator provides reliable operation and valve positioning.

Operates safely between -10°C to 60°C ambient and handles media up to 180°C. High flow rate of 18 m³/h through a 25mm orifice with under-seat flow design. Polyamide actuator casing and PTFE sealing materials maximize chemical resistance.

Live loaded packing and self-adjusting spindle packing glands reduce leakage. Includes wiper seals and an anti-water hammer design for system protection. Threaded 1 inch inlet and outlet connections conforming to G thread standard.

Manufactured in Germany to assure industrial-grade quality and performance. Explore more pneumatic valves and actuated valve solutions in EnvMart's Industrial Valves & Valve Fittings category for durable automation and fluid control components.
