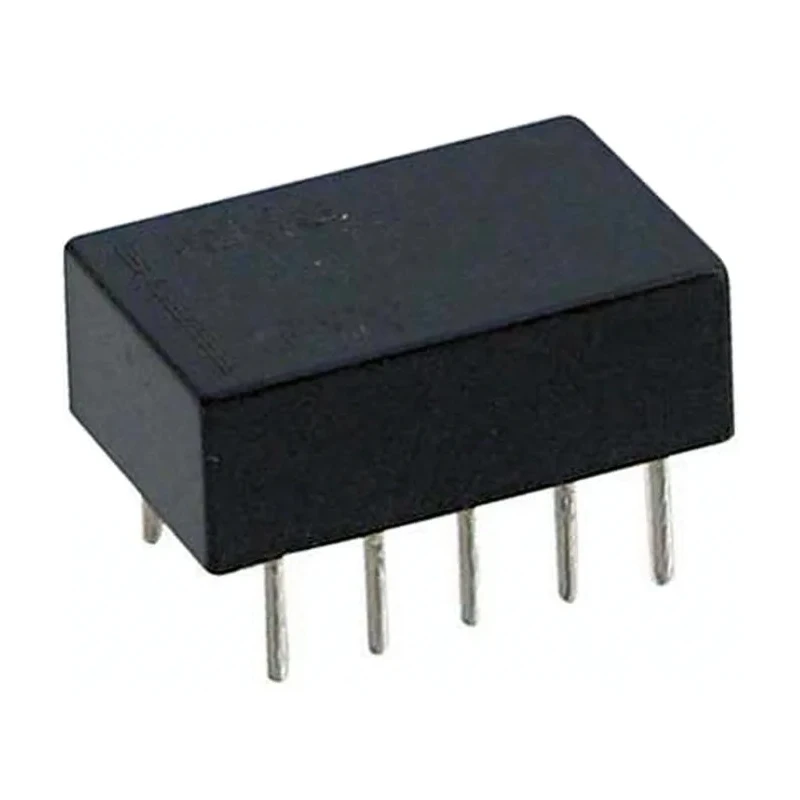

Panasonic PCB Signal Relay, 12V dc Coil, DPDT, Solder Terminal, Gold Plated Contacts TQ2-L2-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 14mm |
| Model | TQ2-L2-12V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Coil Power | 200mW |
Key Features
- Low profile design with 5mm height for compact PCB mounting.
- Gold plated contacts ensure superior conductivity and durability.
- Solder terminal type suitable for PCB surface mount applications.
- Wide operating temperature range from -40°C to 70°C.
- Low coil power consumption at 200mW nominal operating power.
- High sensitivity with 2 A contact capacity for various signal relay uses.
- RoHS compliant and manufactured in Japan for quality assurance.
- Ideal for communication, measurement, and quality assurance equipment.
Product Description
Panasonic TQ2-L2-12V PCB Signal Relay is a compact, high-performance relay designed for printed circuit board applications requiring reliable signal switching. It features a 12V dc coil voltage and double pole double throw (DPDT) contact configuration, offering versatile switching capabilities in electronic circuits.
With an ultra-low profile height of 5mm and compact dimensions of 14mm length by 9mm width, this relay is tailored for space-constrained designs. The relay employs gold plated contacts, providing excellent conductivity and resistance to corrosion for long operational life. The solder terminal mount type facilitates surface mount assembly, making it compatible with automated SMD insertion technologies.
This relay operates efficiently with a nominal coil power of 200mW ensuring low energy consumption while maintaining high sensitivity and a contact capacity of 2 Amps. It withstands a minimum operating temperature of -40°C and a maximum of 70°C, allowing reliable operation in diverse environmental conditions.
Manufactured under stringent RoHS standards in Japan, the TQ2 series relay is well suited for applications in communication devices, measurement instruments, and quality assurance equipment where precise signal relay operation is critical.
Low profile surface mount design with 5mm height. DPDT contact configuration with gold plated contacts. 12V dc coil voltage with 200mW coil power. Solder type terminals for PCB mounting. Operating temperature range from -40°C to 70°C.
Contact resistance of 50mΩ ensures minimal signal loss. RoHS compliant construction with high reliability. Manufactured in Japan for quality compliance.
This Panasonic PCB signal relay is an ideal choice for electronic engineers and industrial applications requiring compact, energy-efficient, and reliable Signal Relays. Browse related categories and Panasonic products on EnvMart for more options in relays and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V dc.
It features a double pole double throw (DPDT) contact configuration, allowing versatile switching capabilities.
The relay has a compact size with a height of 5mm, length of 14mm, and width of 9mm.
The nominal coil power consumption is 200mW, ensuring low energy usage.
It operates efficiently within a temperature range of -40°C to 70°C.
This relay uses solder type terminals, suitable for PCB surface mount applications.
The contact resistance is 50mΩ, which helps minimize signal loss.
It is manufactured in Japan under stringent quality standards.
The contacts are made of gold plated material, ensuring superior conductivity and durability.
It is ideal for use in communication devices, measurement instruments, and quality assurance equipment.
The coil resistance is 720Ω, which is relevant for determining the current draw.
Yes, it is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
