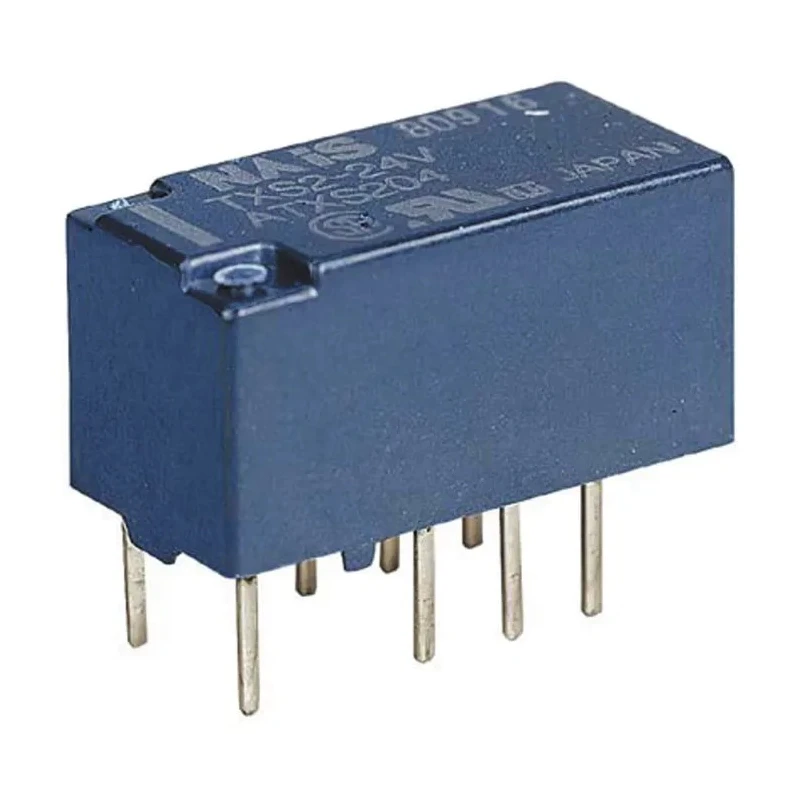

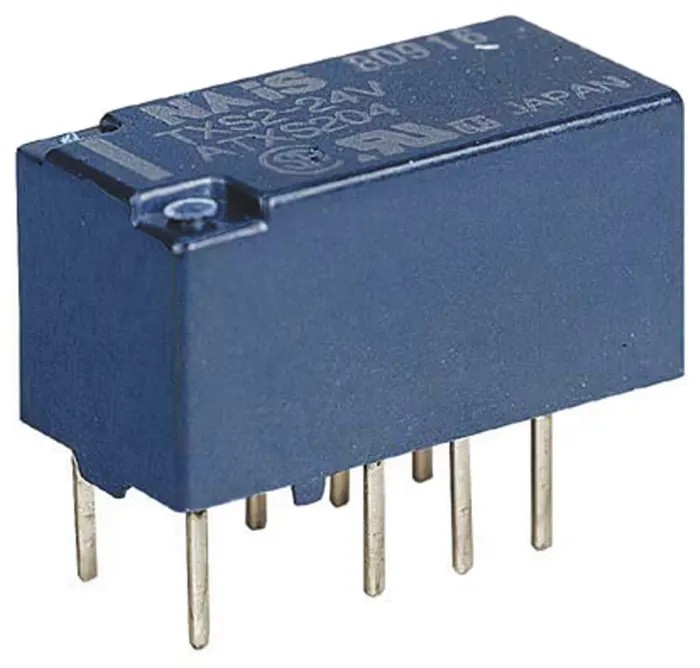

Panasonic Surface Mount Signal Relay 24V DC Coil 1A 110V AC/DC Switching DPDT TXS2-24V

Panasonic TXS2-24V Surface Signal Relay is designed for industrial, automation, and electrical control applications requiring reliable signal conditioning and switching performance. It features a 24V DC coil with a DPDT contact configuration and a switching current of 1A. The relay supports switching voltages of up to 110V AC and 110V DC, making it versatile for various electronic circuits.

Its compact surface mount form factor measures 15mm in length, 8.2mm in height, and 7.4mm in width, allowing easy integration on printed circuit boards. The relay features gold-plated contacts to ensure high contact reliability and low thermal electromotive force, resulting in outstanding surge resistance and longevity.

The coil resistance of 8900 ohms and coil power rating of 70mW contribute to low power consumption and efficient operation. The relay operates over a broad temperature range from -40°C to 85°C, suitable for demanding industrial environments. It includes solder type terminals for secure mounting and complies with RoHS environmental standards.

This Panasonic signal relay is ideal for applications in automation systems, industrial machines, signal conditioning circuits, and electronic control panels. It ensures dependable switching and signal transmission with a robust build quality and proven reliability.

The relay supports switching AC and DC voltages up to 110V. Gold plated contacts provide excellent durability and low resistance. Compact surface mount design fits diverse PCB layouts. Wide temperature operation range ensures performance in harsh environments.

Low coil power consumption enhances energy efficiency.

Choose Panasonic TXS2-24V Surface Signal Relay for precise and durable signal switching solutions. Browse EnvMart’s extensive Electronics & Electricals category for related relays and signal conditioning products.
