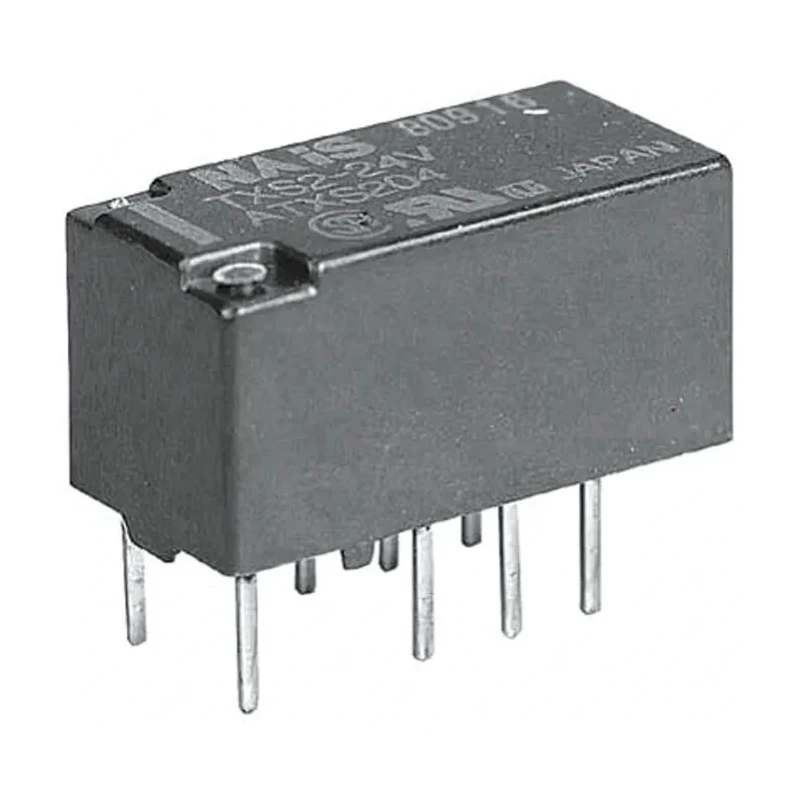

Panasonic Surface Signal Relay 12V DC Coil 1A DPDT TXS2-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TXS2-12V |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2800Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 110V ac |
| Coil Power | 50mW |
Key Features
- Compact surface mount design ideal for PCB integration.
- Gold plated contacts ensure high reliability and low contact resistance.
- Operation temperature range from -40°C to 85°C.
- Low coil power consumption at 50mW nominal.
- Supports switching AC and DC voltages up to 110V.
- Coil resistance precisely 2800Ω for stable operation.
- Robust design with outstanding surge resistance for industrial applications.
- Complies with RoHS standards for environmental safety.
Product Description
Panasonic TXS2-12V surface signal relay features a 12V DC coil voltage and a DPDT (Double Pole Double Throw) contact configuration. This compact relay is designed for surface mounting on printed circuit boards, offering reliable switching for both AC and DC circuits up to 110V and 1A current.
The relay uses gold plated contacts to provide excellent conductivity and reduce contact resistance, thereby enhancing the durability and performance. Its coil power consumption is low at 50mW, contributing to energy-efficient applications. The coil resistance is 2800Ω, ensuring stable and consistent operation.
With an operating temperature range from -40°C to 85°C, this relay is suitable for a wide variety of industrial environments including automation systems, electrical controls, and signal conditioning in manufacturing and industrial equipment. The product is RoHS compliant, aligning with modern environmental regulations.
Physical dimensions measure 15mm in length, 8.2mm in height, and 7.4mm in width, making it compact and space-saving in dense assemblies. The solder terminal type provides secure electrical connections, optimized for PCB mounting.
This relay offers outstanding surge resistance and high contact reliability for continuous industrial and laboratory signals switching. It is manufactured in Japan, ensuring high-quality production standards.
Compact surface mount relay ideal for electrical signal switching. Gold plated contacts for improved conductivity and reliability. Wide operating temperature range supports industrial environments. Low coil power of 50mW reduces energy consumption.
Suitable for switching AC and DC voltages up to 110V. Compliant with RoHS environmental standards.
Choose the Panasonic TXS2-12V Signal Relay for dependable operation in automated control systems, signal conditioning modules, and industrial automation tasks. Explore related Panasonic relays and electrical components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
This model supports switching AC and DC voltages up to 110V.
The coil power consumption is low at 50mW nominal.
The relay measures 15mm in length, 8.2mm in height, and 7.4mm in width.
It operates within a temperature range of -40°C to 85°C.
It has solder terminals for secure electrical connections.
The coil resistance is precisely 2800Ω, ensuring stable operation.
The contacts are made of gold plated material, which enhances conductivity and reliability.
Yes, this relay complies with RoHS standards for environmental safety.
It is suitable for automation systems, electrical controls, and signal conditioning in industrial environments.
It is manufactured in Japan, ensuring high production standards.
