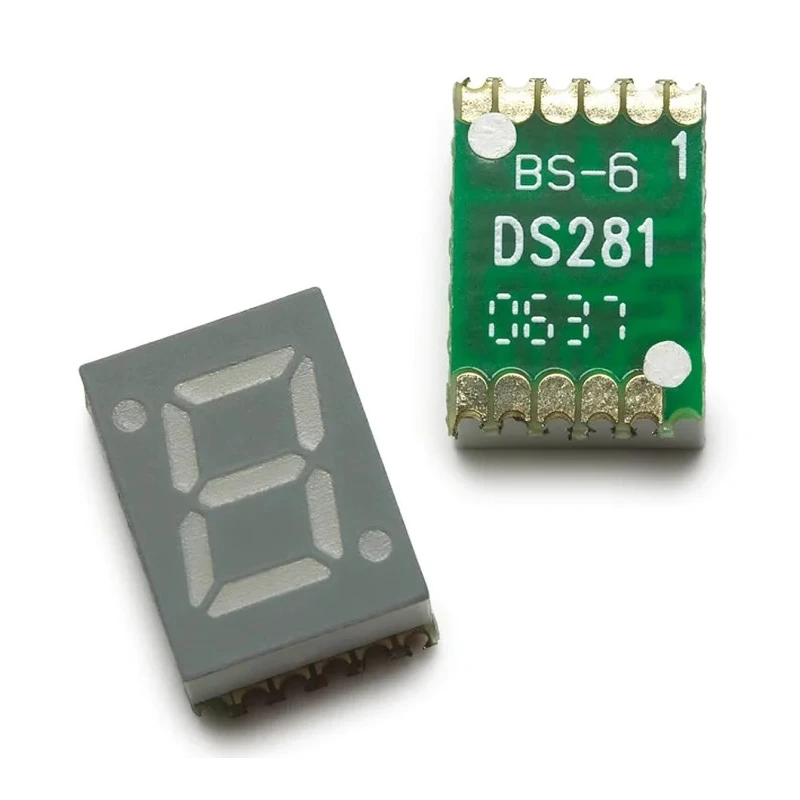

Broadcom 1 Single-Digit 7 Segment Red LED Display Anode Surface Mount 7mm Character Height HDSM-281C
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSM-281C |
| Mount Type | Surface |
| Character height | 7mm |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.5mm |
| External Depth | 10.8mm |
| External Height | 3.8mm |
| Power Dissipation | 65mW |
| Luminous Intensity | 7.5mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 632nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 25mA |
| Number of Characters | 1 |
| Character Width | 4.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Features red LED color with dominant wavelength of 632nm.
- Character width is 4.6mm and character height is 7mm for clear visibility.
- Designed for surface mounting with anode common connection.
- External dimensions are 7.5mm width, 3.8mm height, and 10.8mm depth.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Luminous intensity rating of 7.5mcd ensures bright display under various conditions.
- Forward voltage of 2V and power dissipation of 65mW optimize power efficiency.
- Decimal orientation is right side for standard numeric display format.
Product Description
Broadcom HDSM-281C is a single-digit 7-segment LED display offering a red LED color with a dominant wavelength of 632nm, suitable for precise numeric representation in electronic applications.
This display features a 4.6mm wide by 7mm high character size, designed for surface mounting with a common anode connection, providing efficient integration into printed circuit boards.
The compact external dimensions of 7.5mm width, 3.8mm height, and 10.8mm depth allow for space-conserving designs in industrial, commercial, and laboratory electronic systems.
Operating between -40°C and 105°C, the HDSM-281C ensures reliable performance in a wide range of environmental conditions. Its luminous intensity of 7.5mcd delivers clear and bright numeric display for effective visual readability.
With a forward voltage of 2V and power dissipation of 65mW, this display provides power-efficient operation with a forward current of 25mA. The right side decimal orientation facilitates standard numeric notation for counters, meters, and digital displays.
Broadcom's HDSM-281C complies with RoHS directives, supporting environmentally conscious manufacturing standards.
This LED display module is extensively used in industrial automation, electronic instrumentation, HVAC control panels, and manufacturing applications requiring clear visual numeric indicators.
Features red LED color with dominant wavelength of 632nm. Character width is 4.6mm and character height is 7mm for clear visibility. Designed for surface mounting with anode common connection. External dimensions are 7.5mm width, 3.8mm height, and 10.8mm depth.
Operates reliably in temperatures ranging from -40°C to 105°C. Luminous intensity rating of 7.5mcd ensures bright display under various conditions. Forward voltage of 2V and power dissipation of 65mW optimize power efficiency.
Decimal orientation is right side for standard numeric display format. Forward current rating of 25mA supports stable operation. Compliant with RoHS standards ensuring environmental safety. Discover more in the LED Display Modules category and explore Broadcom's range of display solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of the HDSM-281C display is 7mm.
The luminous intensity rating of the HDSM-281C is 7.5mcd, providing a bright display under various conditions.
This model can operate reliably at a maximum temperature of 105°C.
The forward voltage for the HDSM-281C is 2V.
The external dimensions of this display are 7.5mm in width, 3.8mm in height, and 10.8mm in depth.
This model features a common anode connection designed for surface mounting.
The character width of the HDSM-281C display is 4.6mm.
The forward current rating for this display is 25mA.
The HDSM-281C operates within a temperature range of -40°C to 105°C.
The decimal orientation for this display is on the right side, suitable for standard numeric display format.
Yes, the HDSM-281C complies with RoHS directives, supporting environmentally conscious manufacturing standards.
This LED display is extensively used in industrial automation, electronic instrumentation, HVAC control panels, and manufacturing applications requiring clear visual numeric indicators.
