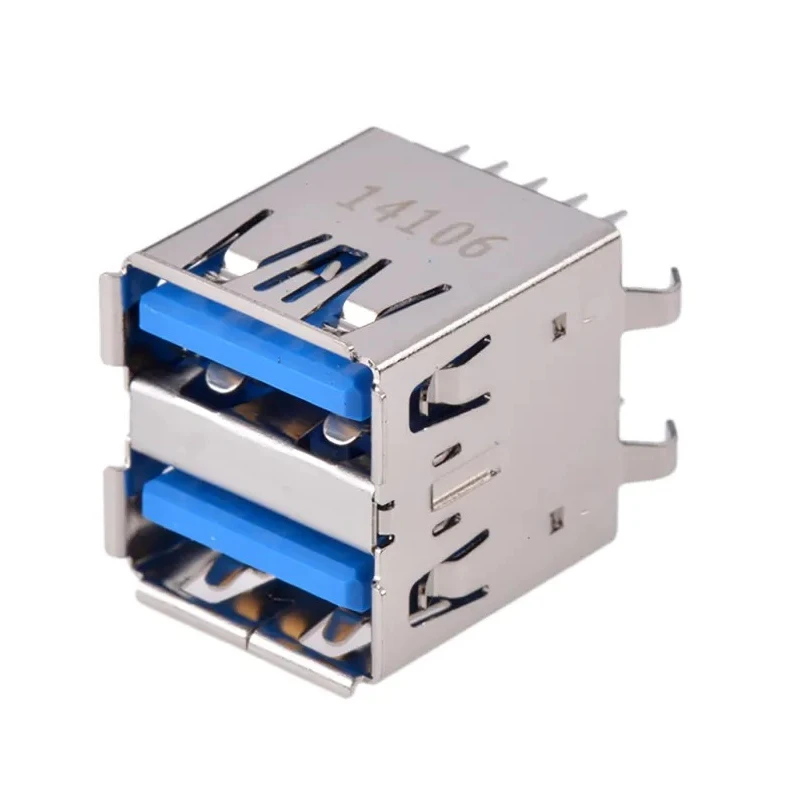

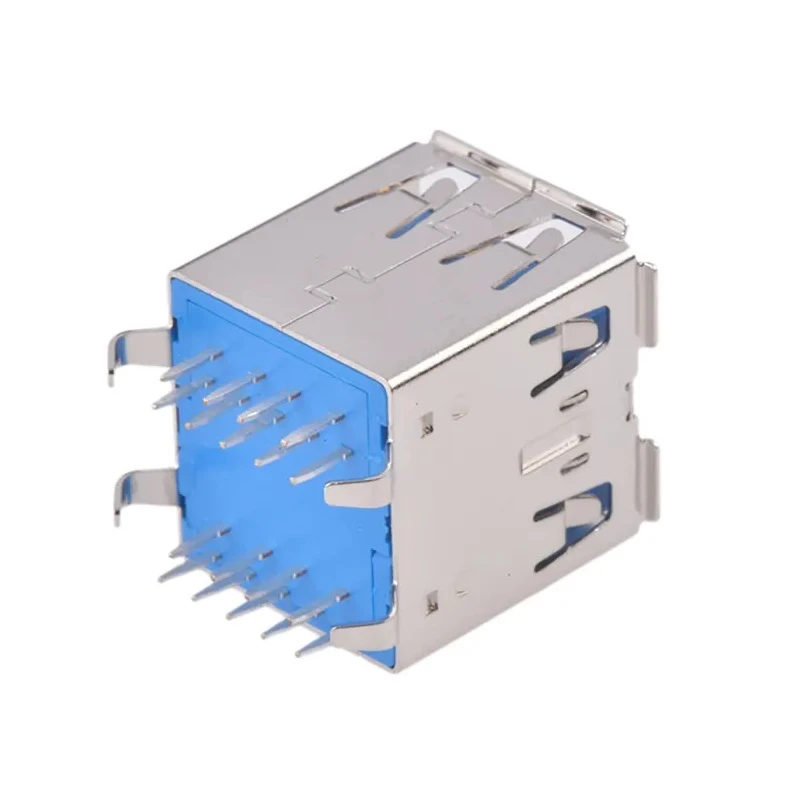

Molex Straight Through Hole Female 2 Port Type USB Type A USB 3.0 Connector 48409-0003

Molex 48409-0003 is a Straight Through Hole Female 2 Port Type USB Type A Connector designed to meet the USB 3.0 standard, ensuring robust performance for high-speed data transmission applications. The connector supports a data rate that is ten times faster than USB 2.0 and withstands 5000 mating cycles, reflecting its durable and reliable construction.

The connector housing is made from high temperature, halogen-free blue nylon material capable of enduring infrared reflow temperatures up to 225°C. This material ensures long-term stability and safety in demanding electronic assemblies. The connector features keying and polarization mechanisms, ensuring accurate mating with compatible plugs and preventing incorrect connections.

With a current rating of 1.8A and voltage rating of 30V, this USB connector is suitable for powering devices as well as data transfer. Its solder termination provides a secure and reliable PCB attachment, and the copper alloy contacts guarantee excellent conductivity and durability. The operating temperature range of -20°C to 85°C makes this component versatile for various environmental conditions.

The Molex 48409-0003 connector is designed for industrial, laboratory, manufacturing, automotive, and consumer electronics applications that demand high-speed and reliable USB 3.0 connections. Its vertical stacked, 2-port configuration optimizes PCB space and supports low-profile designs. This connector series includes multiple mounting options and contact heights to suit diverse design needs.

Features of the Molex USB connectors include high durability, superior data rates, robust materials, and precise mechanical fitment, making them ideal for advanced computing and automotive infotainment applications. The product is manufactured in China and meets all relevant industrial standards without hazardous area certification.

Designed for high-speed USB 3.0 data transfer and power supply. Durable up to 5000 mating cycles meeting High-Durability-Class USB 3.0 standards. High temperature halogen-free nylon housing suitable for IR reflow soldering.

Keys and polarizes to ensure correct and secure mating. Copper alloy contacts provide reliable electrical performance. Stacked vertical mount configuration optimizes PCB space. Wide operating temperature range of -20°C to 85°C.

Solder termination for strong PCB connection. Supports a current of 1.8A and voltage of 30V. Ideal for industrial, automotive, consumer electronics, and computing applications. Explore a wide range of Connectors and components at EnvMart for your high-performance electronics projects.
