Murata Wirewound Surface Mount Inductor 0805 Package 400mA Maximum DC Current ±25% Inductance Tolerance DLW21S

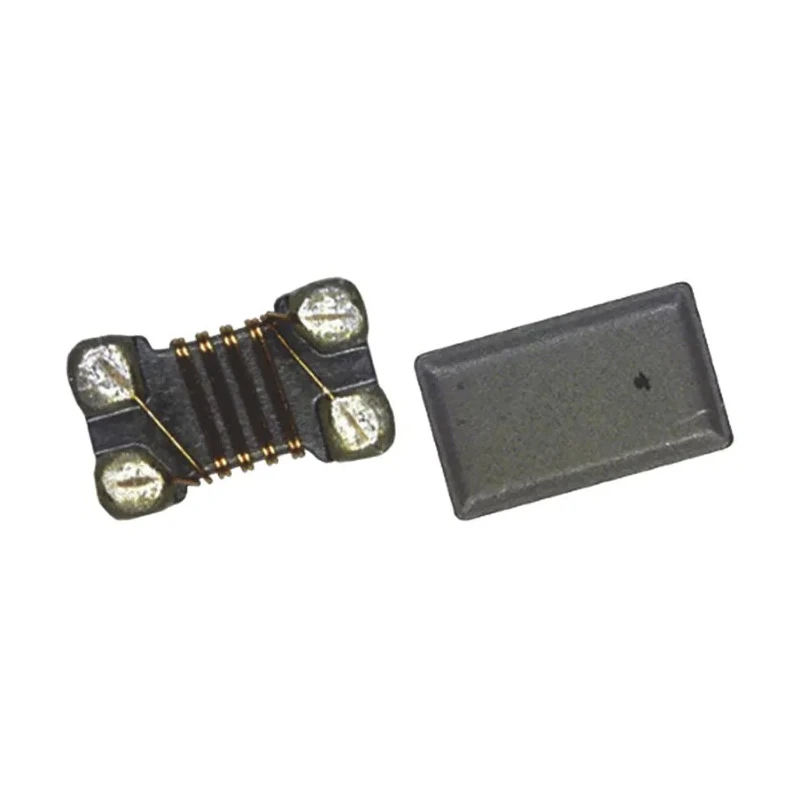

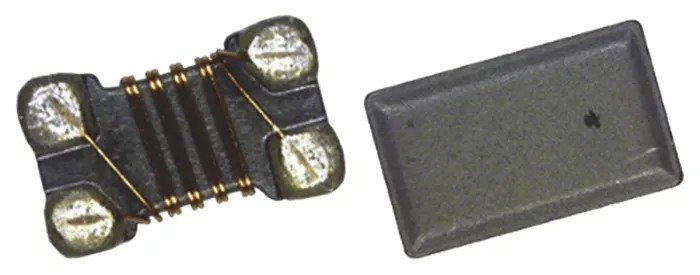

Murata DLW21S Wirewound Surface Mount Inductor in compact 0805 package is engineered for effective noise suppression on high-speed differential signal lines commonly used in electronic devices. Featuring a maximum DC current rating of 400mA and an inductance tolerance of ±25%, this inductor offers reliable performance in various industrial applications.

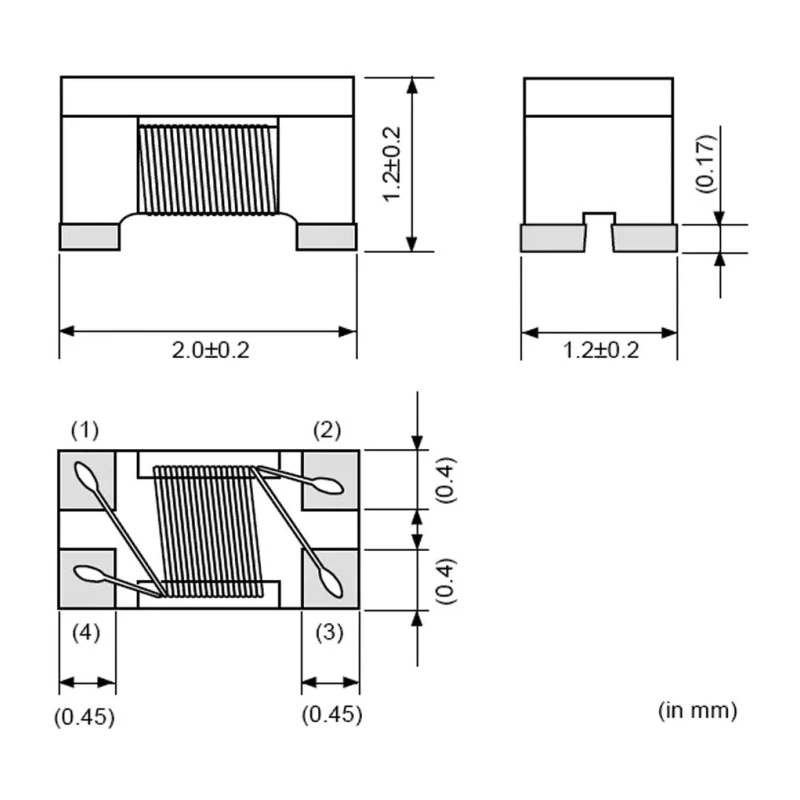

This device has a length of 2 mm along with a height and depth of 1.2 mm each, making it perfectly suited for dense surface-mount manufacturing on PCBs. The termination style is solder compatible, ensuring strong mechanical and electrical connections. With a maximum DC resistance of 250 milliohms, it provides optimal electrical characteristics for signal integrity.

Designed to operate within a temperature range of -40°C up to 85°C, the Murata DLW21S reliably functions across diverse thermal environments encountered in electronics. It is supplied on embossed tape packaging, ready for pick-and-place machines improving production efficiency.

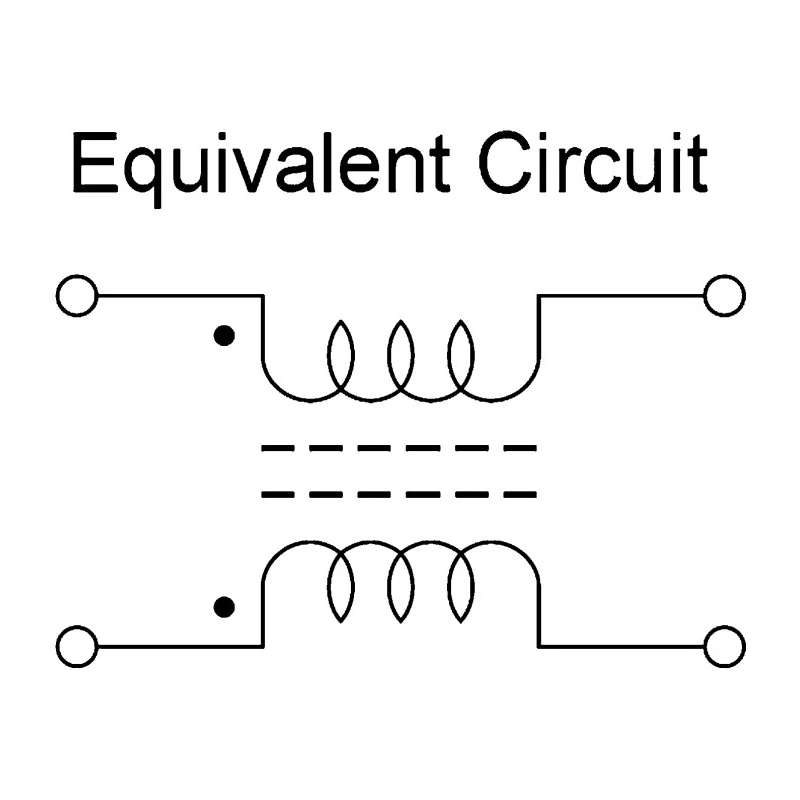

This wirewound SMD common mode choke is widely used in USB lines of PCs, peripheral equipment, LVDS lines of notebooks and LCDs, and small digital audio-visual equipment like cameras. Its construction and rated parameters help suppress electromagnetic noise without distorting high-speed signals, beneficial in communication and computing devices.

This inductor enables effective noise filtering while preserving signal fidelity. Compact 0805 surface-mount design is industry standard for dense PCB layouts. Wide operating temperature range suits many industrial and commercial electronics.

Embossed tape packaging facilitates efficient automated PCB assembly. Reliable solder termination style offers secure mounting and electrical contact. Typical 250 mΩ DC resistance ensures low loss and stable performance.

Applications include USB, LVDS, and digital AV equipment noise suppression. Explore more Surface Mount Inductors and related Murata components on EnvMart for your electronics manufacturing and prototyping needs.
