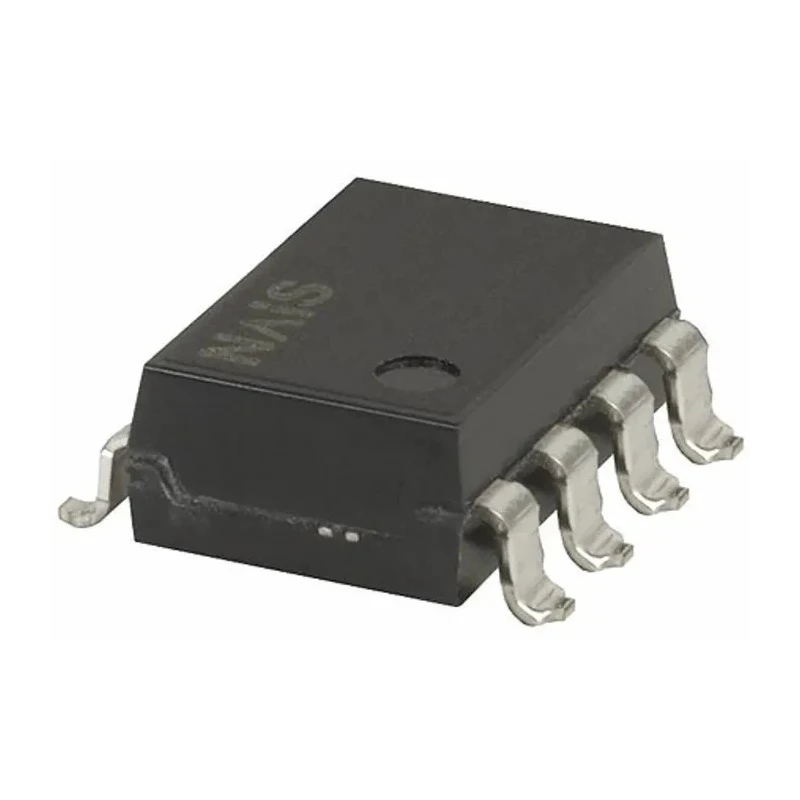

Panasonic Solid State Relay Through Hole Mount 0.12 A Load 350 V Load 5V DC Control AQW210EHA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 2.9mm |
| Length | 9.9mm |
| Model | AQW210EHA |
| Width | 5mm |
| Mount Type | Through Hole |
| Output type | Photo MOSFET |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 0.12A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 350V |
| Minimum Control Voltage | 1.5V |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 1μA |
| On State Resistance | 2.5Ω |
Key Features
- The relay features a low on-state resistance of 2.5 ohms for efficient switching.
- Supports AC/DC switching function suitable for varied applications.
- Compact dimensions measuring 9.9mm length, 5mm width, and 2.9mm height.
- Low off-state leakage current of 1 microampere ensures minimal power loss.
- Operating temperature range from -40°C to 85°C for reliability in harsh environments.
- DPST contact configuration with photo MOSFET output type for high-performance control.
- Complies with RoHS standards ensuring environmental safety.
- Designed for controlling low-level analog signals with high accuracy and stability.
Product Description
Panasonic AQW210EHA is a high-quality solid state relay designed for through hole mount applications with a maximum load current of 0.12 A and load voltage of 350 V. It offers reliable control with a 5V DC control voltage and supports both AC and DC switching functions, making it ideal for industrial automation, electrical control, and signal conditioning tasks.
The relay's compact form factor with dimensions 9.9mm in length, 5mm in width, and 2.9mm in height contributes to easy integration in compact electronic assemblies. Its low on-state resistance of 2.5 ohms and minimal off-state leakage current of 1 microampere provide efficient power management.
Operating across a wide temperature spectrum from -40°C to 85°C, this relay is suited for harsh industrial environments. The DPST contact configuration and photo MOSFET output ensure precise, noise-free switching capabilities.
The Panasonic AQW210EHA meets RoHS compliance, supporting environmentally responsible manufacturing standards. Key features like low-level analog signal control and high capacitance stability at 1.5pF make it suitable for advanced electronics and industrial control systems.
The relay controls low-level analog signals with high stability. Low off-state leakage current minimizes power consumption. Compact size enables versatile mounting options. Wide operating temperature range allows reliable use in diverse conditions.
DPST photo MOSFET output delivers precise switching operations. Compliance with RoHS ensures environmentally safe use. Applications include industrial automation, HVAC control, manufacturing equipment, and laboratory instrumentation.
Explore EnvMart for more Panasonic Solid State Relays and industrial electrical components designed for high reliability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic AQW210EHA has a maximum load current of 0.12 A and a maximum load voltage of 350 V.
This model requires a maximum control voltage of 5V DC, with a minimum control voltage of 1.5V.
It features a photo MOSFET output type, which allows for efficient switching operations.
The on-state resistance of the AQW210EHA is 2.5 ohms, contributing to efficient power management.
The relay operates within a temperature range from -40°C to 85°C, making it suitable for harsh environments.
The off-state leakage current is 1 microampere, which ensures minimal power loss during operation.
This relay has a DPST (Double Pole Single Throw) contact configuration.
The dimensions of the AQW210EHA are 9.9mm in length, 5mm in width, and 2.9mm in height.
Yes, the AQW210EHA complies with RoHS standards, ensuring environmentally safe use.
This relay is suitable for industrial automation, HVAC control, manufacturing equipment, and laboratory instrumentation.
The relay is designed for through hole mounting, allowing for easy integration into electronic assemblies.
The AQW210EHA has a capacitance of 1.5pF, which contributes to its stability in controlling low-level analog signals.
