onsemi 1 4-Input OR NOR Logic Gate 8-Pin TSSOP MC100EP01DTG

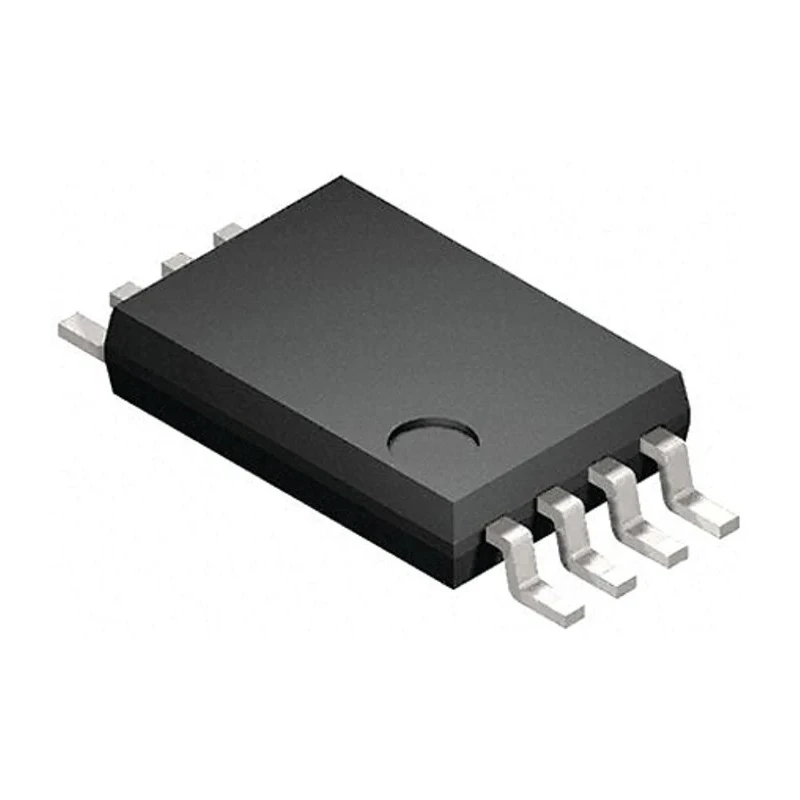

onsemi MC100EP01DTG 4-Input OR NOR Logic Gate in an 8-Pin TSSOP package is a high-performance Emitter Coupled Logic (ECL) gate tailored for electronic circuit designs demanding fast switching speeds and precise logic operations.

This single logic element integrates both OR and NOR functions, accommodating four inputs per gate, making it suitable for varied digital logic applications. Constructed for surface mounting, the TSSOP package has a compact footprint with dimensions of 3.1 mm length and 0.95 mm height, facilitating high-density PCB layouts.

Operating reliably over a broad temperature range from -40°C to 85°C, this component is engineered for robust industrial, commercial, and electronics manufacturing environments. Emitter Coupled Logic (ECL) technology ensures very fast logic transitions.

Maximum propagation delay of 350 ps provides quick signal processing. Low power consumption with a maximum supply voltage of 5.5 V. Pin count of 8 in a TSSOP surface mount package simplifies assembly and soldering. Designed for embedded systems, communication devices, and automotive electronics requiring high-speed Logic Gates.

Reliable operation without Schmitt Trigger inputs, offering precise logic levels. The MC100EP01DTG is part of onsemi’s 100EP series, known for quality and performance in semiconductor logic components. This product is ideal for integrating into high-speed digital circuits, including industrial controls, data processing systems, and communications equipment.

Explore the extensive range of semiconductor logic ICs for design innovation and efficiency improvements through professional electronic component suppliers.
