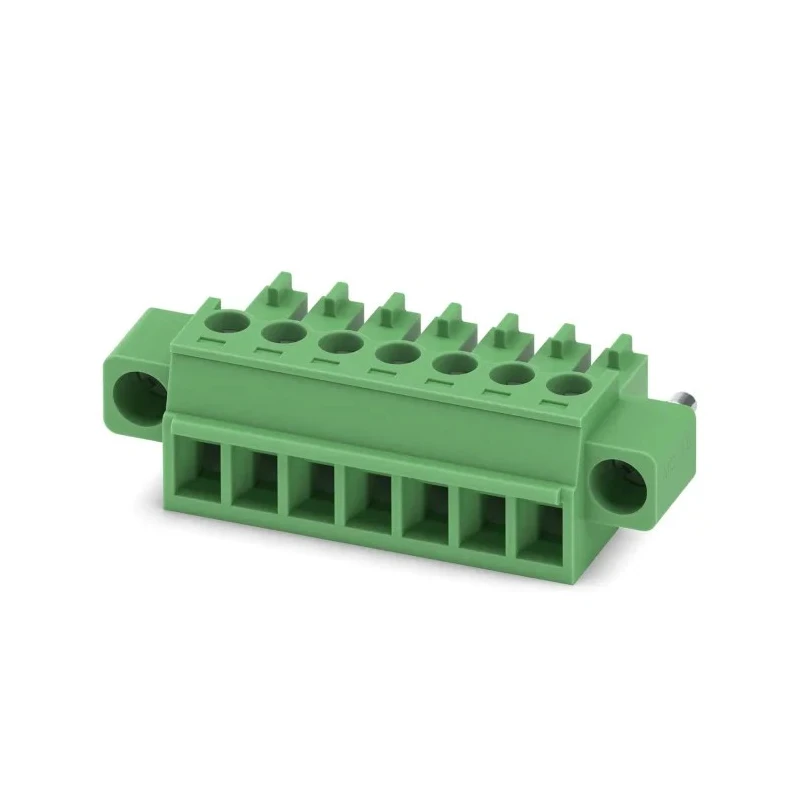

Phoenix Contact MC 1.5/7-STF-3.81 Series Pluggable Terminal Block, 7-Contact, 3.81 mm Pitch, 1 Row 1827758

Phoenix Contact 1827758 is a high-quality MC 1.5/7-STF-3.81 series Pluggable Terminal Block designed for secure and reliable PCB connections. It features 7 contacts spaced at a 3.81 mm pitch arranged in a single row, providing a compact footprint for electrical coupling.

The terminal block supports wire sizes ranging from 0.14 mm² to 1.5 mm², making it suitable for a variety of wiring needs. The screw connection with tension sleeve ensures strong mechanical retention and reduces the risk of wire loosening, particularly in environments with high vibration. Rated for 8A current and a maximum voltage of 320V, it accommodates signal, data, and power transmission requirements.

Constructed from durable green polyamide housing, it measures 37.06 mm in length, 16.1 mm in width, and 11.1 mm in depth, maintaining a low profile on the PCB with a height of approximately 8 mm above the board. The female connector gender and straight orientation allow convenient wiring and flexible PCB layout configurations.

Operating temperature range of -40°C to +70°C ensures robust performance across various industrial and laboratory conditions.

This terminal block series is designed for industries including electrical, automation, industrial machinery, and electronic manufacturing, offering a permanent but pluggable connection solution for PCB assemblies and control systems.

The product uses M2 slotted screws for terminal tightening and is compatible with marker cards and cable housing accessories to facilitate organisation and identification. Supports wire sizes from 0.14 mm² to 1.5 mm² using screw connection with tension sleeve.

Rated current of 8A suitable for data, signals, and power transmission. Compact polyamide housing in green color with dimensions 37.06 mm length, 16.1 mm width, and 11.1 mm depth. Features a straight orientation and female connector gender for versatile PCB applications.

Operates at voltage up to 320V and designed for temperatures between -40°C to +70°C. Uses M2 slotted screws to ensure secure connection even under vibrations. Ideal for industrial, automation, and electronics manufacturing environments.
