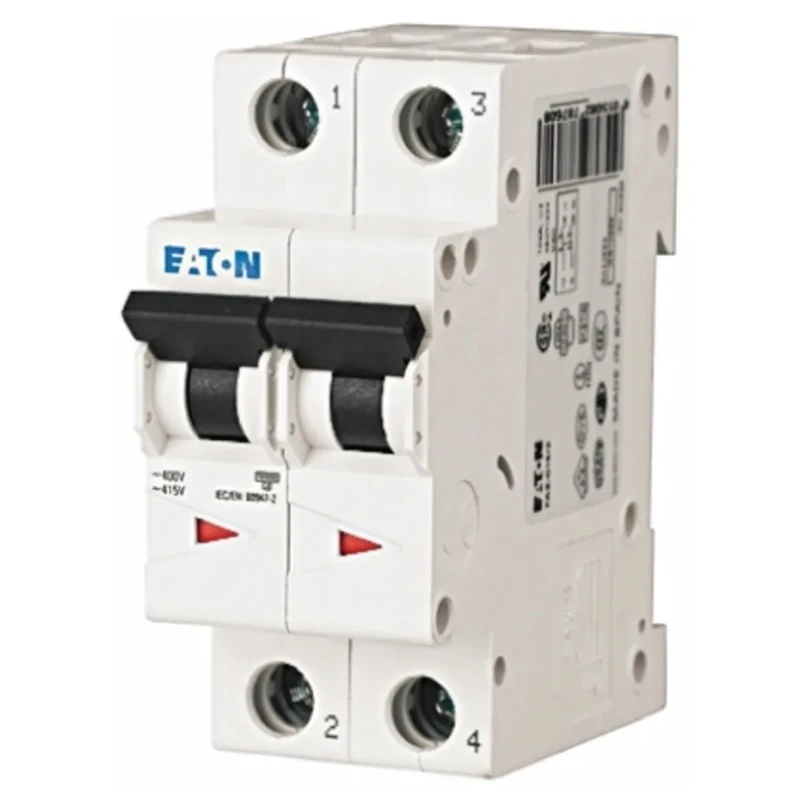

Eaton xEffect Miniature Circuit Breaker 2-Pole 25A Type D 400V AC 6 kA Breaking Capacity 168074 FAZ6-D25/2

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker 2-Pole 25A Type D 400V AC 6 kA Breaking Capacity 168074 FAZ6-D25/2

Name: Eaton xEffect Miniature Circuit Breaker 2-Pole 25A Type D 400V AC 6 kA Breaking Capacity 168074 FAZ6-D25/2
Brand: Eaton
SKU: 367317
Price: 90.27 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	168074 FAZ6-D25/2
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	25A
Series	xEffect
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	EN 60898, IEC
Rated AC Voltage	400V ac
Tripping Characteristics	Type D
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous

Key Features

Offers instantaneous break time for rapid circuit interruption.
Mounts conveniently on DIN rails for ease of installation.
Equipped with screw terminals ensuring secure electrical connections.
IP20 rated housing provides protection against solid objects.
Compact dimensions with 17.5mm width and 62mm depth optimize panel space.
Complies with international standards EN 60898 and IEC for safety and reliability.
Features a toggle switch reset actuator for manual operation.

Product Description

Eaton 168074 FAZ6-D25/2 Miniature Circuit Breaker is a high-quality electrical protection device suitable for various industrial, commercial, and residential applications. This 2-pole MCB is rated at 25 amps with Type D tripping characteristics, which makes it ideal for protecting circuits that have a high inrush current such as motors and transformers. It operates at a rated AC voltage of 400 volts and features a robust breaking capacity of 6 kiloamperes, ensuring reliable disconnection under fault conditions.

The compact design with a width of 17.5mm and a depth of 62mm allows efficient use of panel space. Its housing has an IP20 rating to protect internal components from contact with solid objects. The device is equipped with screw terminals providing secure and easy electrical connections. The mounting type is DIN rail, a standard that facilitates quick and standardized installation in electrical enclosures.

Certified to EN 60898 and IEC standards, this MCB ensures safety, performance, and regulatory compliance. The toggle switch actuator enables manual reset after tripping, enhancing operational convenience. Eaton, formerly known as Moeller, brings a reliable and well-engineered series with the xEffect range, now upgraded to the latest IEC standards.

This miniature circuit breaker finds application in electrical distribution boards, industrial panels, manufacturing units, water treatment facilities, and HVAC systems where circuit protection against overloads and short circuits is critical.

Instantaneous break time for swift fault clearing. Standard DIN rail mount for flexible installation. Screw-type terminals for solid electrical contact. IP20 protection rating safeguards against solid foreign objects. Compact size optimizes panel layout and integration.

Compliance with EN 60898 and IEC safety standards. Toggle switch reset mechanism for quick manual reset. Explore the extensive range of Eaton Miniature Circuit Breakers at EnvMart for safe and effective circuit protection solutions.
