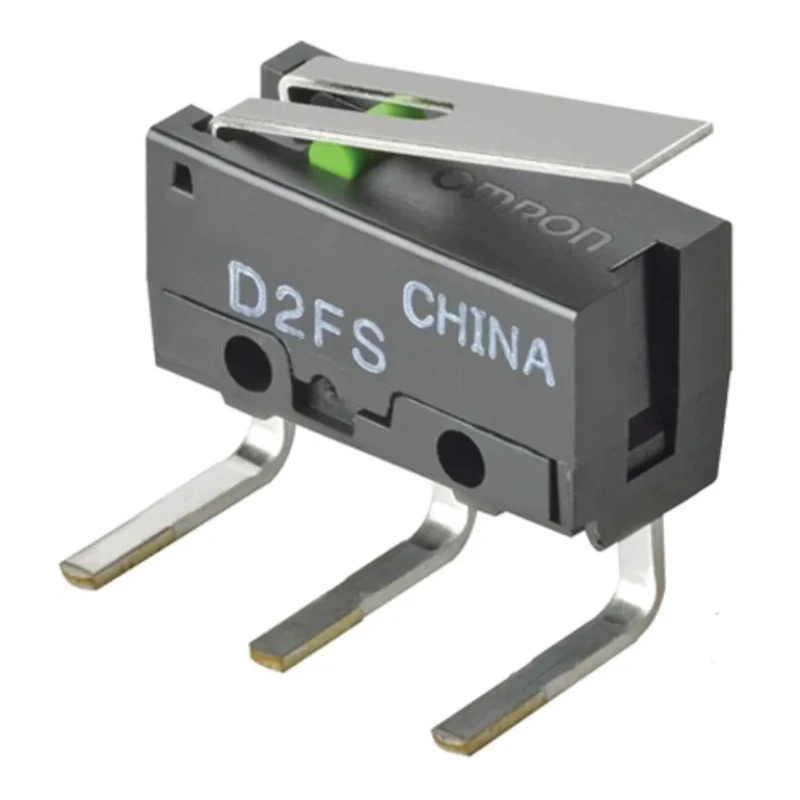

Omron Ultra Subminiature Hinge Lever Micro Switch Left Angle PCB Terminal 6 V dc 600 V ac SPST 100mA D2FS-FL-N-A1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2FS-FL-N-A1 |
| IP Rating | IP40 |
| Series | D2FS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -20°C |
| Terminal type | Left Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 6V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.25N |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 600V ac |
| Microswitch Type | Ultra Subminiature |
Key Features
- The switch features a hinge lever actuator for precise mechanical movement.
- It supports a maximum mechanical life of 100,000 operations.
- Operating force is low at 0.25 N for efficient actuation.
- Suitable for operating temperatures between -20°C and 70°C.
- Designed for ultra subminiature applications requiring compact size with a length of 12.8 mm.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
- Ideal for door-detection and misuse prevention in meter applications.
- Constructed with a simple single leaf movable spring mechanism.
Product Description
Omron D2FS-FL-N-A1 Ultra Subminiature Hinge Lever Micro Switch with left angle PCB terminal, rated at 100mA current capacity and specified for 6 V dc and 600 V ac contact voltages. This SPST configured micro switch features an IP40 ingress protection rating, making it suitable for use in moderately protected environments.
The switch actuator is a hinge lever type, providing precise mechanical actuation with an operating force of 0.25 N. Compact in design, this component has a total length of 12.8 mm and is engineered for applications demanding ultra subminiature switch dimensions.
Designed primarily for use in door-detection systems and prevention of meter misuse, the D2FS series switches offer simple construction based on a single leaf movable spring. With a mechanical life rated for 100,000 operations, this switch is robust for frequent actuation demands.
It conforms to RoHS standards, affirming its compliance with environmental and safety guidelines for lead-free manufacturing. The switch functions effectively across a temperature range from -20°C to 70°C.
The hinge lever actuator enables reliable and consistent switching action. Left angle PCB terminal facilitates straightforward PCB mounting. Small footprint supports space-constrained electronic designs. Low operating force promotes reduced actuation energy requirements.
High mechanical cycle life ensures durability and long-term operation. IP40 rating guards against solid ingress over 1 mm dimensions. RoHS compliant for environmentally responsible usage. Ideal for industrial, automation, and electronic device applications requiring sensitive switching.
Secure your control and detection needs with the Omron D2FS-FL-N-A1 Ultra Subminiature Micro Switch, suitable for microelectronics, industrial automation, and safety monitoring systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating force is low at 0.25 N, which allows for efficient actuation.
It has a maximum mechanical life rated for 100,000 operations, ensuring durability for frequent use.
This model has an IP40 ingress protection rating, making it suitable for moderately protected environments.
The switch operates effectively within a temperature range of -20°C to 70°C.
It features a hinge lever actuator, which provides precise mechanical actuation.
The contact configuration is SPST (Single Pole Single Throw).
It is rated for a contact DC voltage of 6 V and a contact AC voltage of 600 V.
The switch has a compact length of 12.8 mm, making it suitable for space-constrained applications.
This model complies with RoHS standards, ensuring environmentally safe manufacturing.
It features a left angle PCB terminal for straightforward PCB mounting.
This switch is ideal for door-detection systems and prevention of meter misuse.
The country of origin for this micro switch is China.
