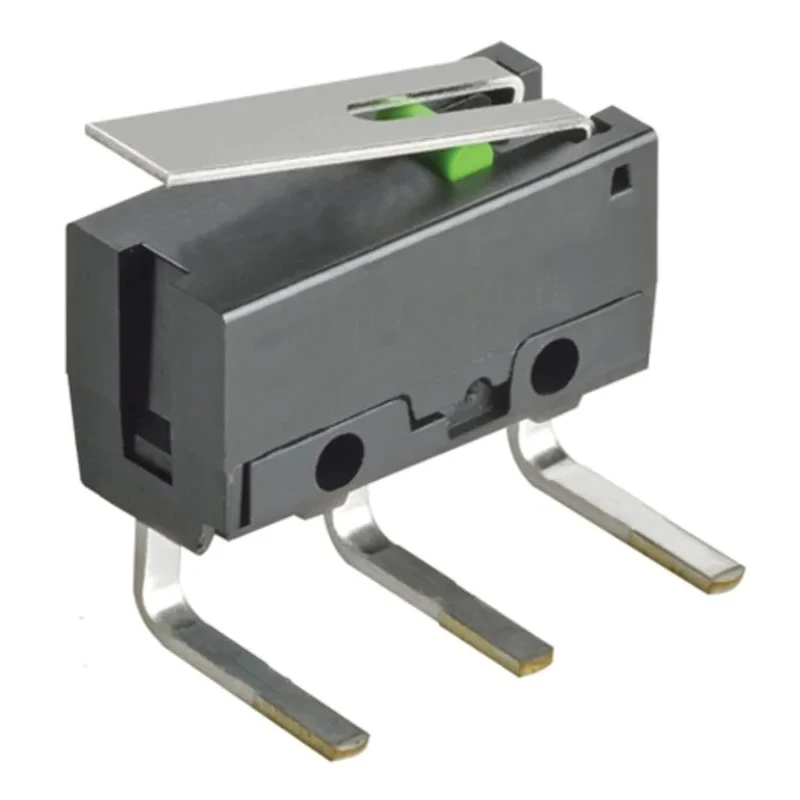

Omron Ultra Subminiature Hinge Lever Micro Switch Right Angle PCB Terminal 100mA 600V AC 6V DC SPST IP40 D2FS-FL-N-A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2FS-FL-N-A |
| Depth | 5.8mm |
| IP Rating | IP40 |
| Width | 6.5mm |
| Series | D2FS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -20°C |
| Terminal type | Right Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 6V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.25N |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 600V ac |
| Microswitch Type | Ultra Subminiature |
Key Features
- Features a hinge lever actuator for accurate operation.
- Right angle PCB terminal design for easy mounting.
- Switch contact current rating of 100mA.
- Contact configuration is Single Pole Single Throw (SPST).
- Supports AC voltage up to 600 volts and DC voltage up to 6 volts.
- Operating force of 0.25 newtons enables sensitive actuation.
- Mechanical life of 100,000 operations ensures durability.
- Operating temperature range from -20°C to 70°C.
Product Description
Omron D2FS-FL-N-A is an ultra subminiature hinge lever micro switch designed for control and detection applications requiring minimal switching actions. It features a right angle PCB terminal for convenient circuit board integration and supports a switch contact current of 100mA at voltages up to 600V AC and 6V DC. The SPST contact configuration and IP40 rating provide reliable operation in moderate environments.
This micro switch operates with an operating force of 0.25N and offers a mechanical life expectancy of 100,000 operations, making it suitable for industrial automation, electrical, and electronics applications where compact, precise control is needed.
The device functions efficiently within a temperature range from -20°C to 70°C and is compliant with RoHS standards. Precise dimensions of 12.8mm length, 6.5mm width, and 5.8mm depth contribute to its compact footprint.
Its simple construction with a single leaf movable spring ensures reliable actuation. This switch is ideal for applications including door detection to prevent misuse of meters and other electronic equipment requiring durable and low-force switching control.
Features a hinge lever actuator for accurate operation. Right angle PCB terminal design eases mounting on circuit boards. Rated for a switch contact current of 100mA. SPST contact configuration for straightforward on/off switching.
Supports AC voltage up to 600V and DC voltage up to 6V. Operating force of 0.25N enables sensitive and precise switching. Mechanical life rated at 100,000 operations for dependable use. Operates over -20°C to 70°C temperature range.
RoHS compliant and manufactured in China. Compact ultra subminiature design with dimensions 12.8mm x 6.5mm x 5.8mm.
This micro switch is a high-quality component suitable for industrial, automation, electrical and electronics manufacturing and repair applications. Explore further options and technical specifications in the Micro Switch category on EnvMart for comprehensive product selection and expert support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an AC voltage of up to 600V and a DC voltage of up to 6V.
This model features a Single Pole Single Throw (SPST) contact configuration.
It operates efficiently within a temperature range of -20°C to 70°C.
The mechanical life is rated at 100,000 operations, ensuring reliable use.
Its dimensions are 12.8mm in length, 6.5mm in width, and 5.8mm in depth.
It features a hinge lever actuator for accurate operation.
The operating force required for actuation is 0.25N.
It has a right angle PCB terminal design for easy mounting.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is manufactured in China.
This micro switch is suitable for control and detection applications, including door detection and electronic equipment control.
It has an IP40 rating, providing protection against solid objects greater than 1mm but not against water.
