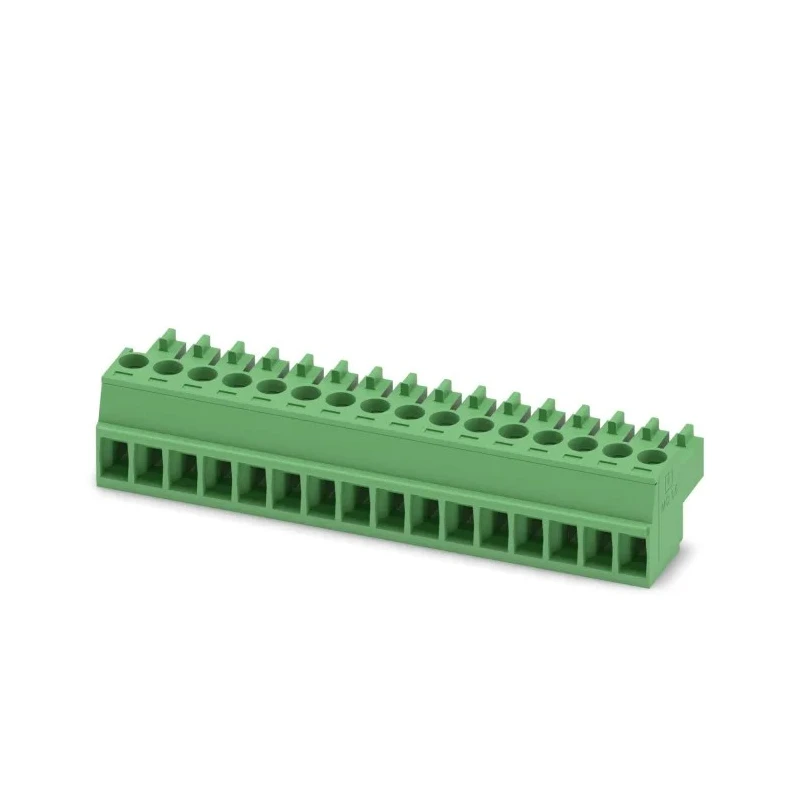

Phoenix Contact MC 1.5/16-ST-3.5 Series Pluggable Terminal Block 16-Contact, 3.5 mm Pitch, 8A, Polyamide Housing 1840502

Phoenix Contact 1840502 Pluggable Terminal Block MC 1.5/16-ST-3.5 series is a precision-engineered connector designed for industrial, electronic, and power distribution applications. Featuring 16 contacts and a 3.5 mm pitch, this terminal block provides a secure and reliable wire connection method using screw connections with tension sleeves to minimize temperature rise and ensure stable conductivity.

The polyamide housing material offers excellent insulation and mechanical stability, ideal for use in harsh environments. This connector supports wire sizes ranging from 0.14 mm² up to 1.5 mm² (28 AWG to 16 AWG), suitable for various wiring requirements. Its nominal current rating of 8A and voltage rating of 320V make it suitable for medium power applications including industrial automation controls, machinery, and control panels.

Its compact form factor with dimensions 56 mm length, 16.1 mm width, and 11.1 mm depth contributes to efficient PCB layout designs. The single-row, straight orientation design facilitates easy wiring and installation in DIN rail or panel-mount systems. The terminal block’s green color enhances wiring visualization and organization.

Manufactured in Germany, this component complies with rigorous quality and reliability standards expected in demanding industrial and electronics environments.

The Phoenix Contact MC 1.5/16-ST-3.5 terminal block is part of the MINI COMBICON MC series, popular for universal wiring solutions across power, signal, and control applications. It is compatible with mating plugs and screwdrivers designed for precise assembly. This component is widely used in industrial automation, manufacturing equipment, power distribution systems, and electronic manufacturing.

The terminal block supports a nominal current of 8A. It features a polyamide housing for durability and safety. Compatible with wire sizes from 0.14 mm² to 1.5 mm², supporting 28 AWG to 16 AWG wires. The screw connection with tension sleeve ensures secure and stable wire connections.

Designed as a single-row, straight orientation connector providing ease of installation. Voltage rating of 320V supports medium voltage applications. Compact dimensions optimize PCB space usage. Green color coding enhances visual identification.

Manufactured in Germany with high-quality standards.
