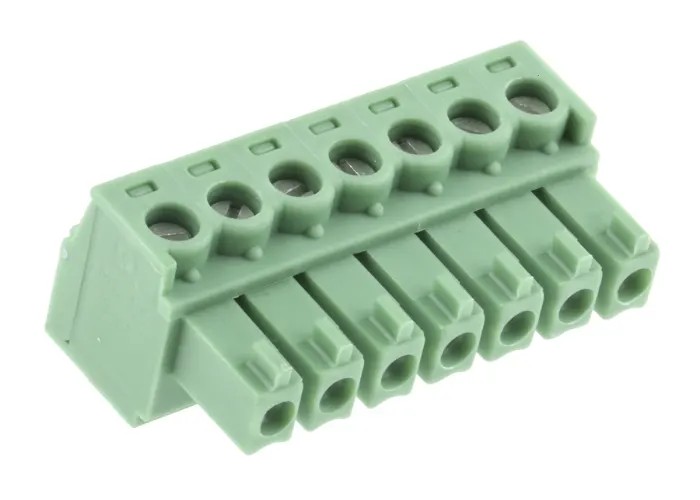

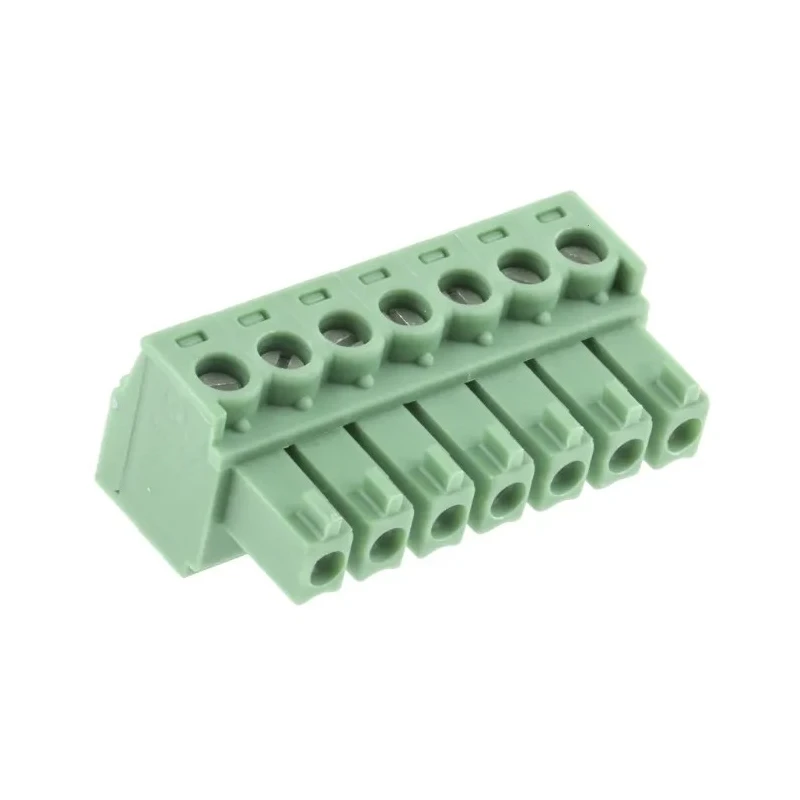

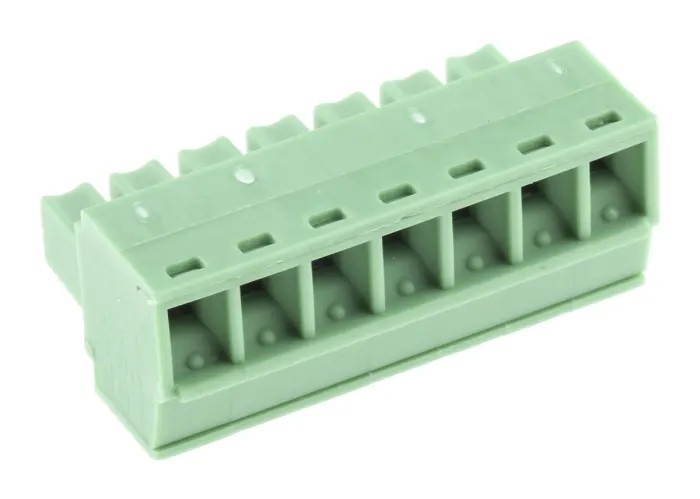

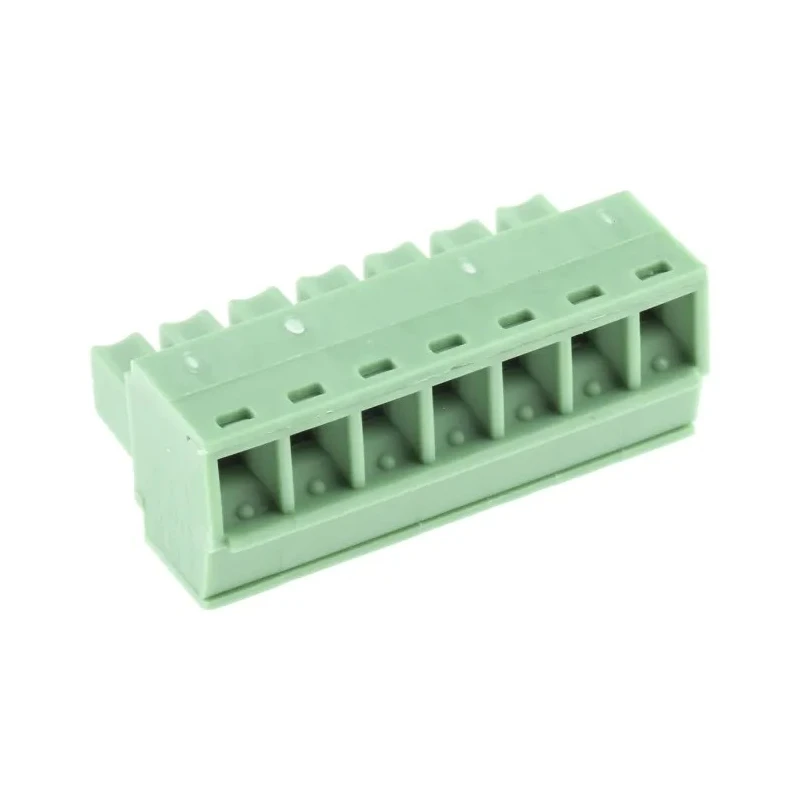

Phoenix Contact MC 1.5/7-ST-3.81 Series Pluggable Terminal Block, 7-Contact, 3.81 mm Pitch, 1 Row 1803620

Phoenix Contact 1803620 Pluggable Terminal Block, part of the MC 1.5/7-ST-3.81 series, provides a reliable and compact 7-contact solution with a 3.81 mm pitch and a single row design. Rated for 8 A current and 160 V voltage, it is ideal for safely transmitting data, signals, and power to printed circuit boards in industrial, telecommunications, medical, and consumer electronic applications.

The block features a robust polyamide housing that is flame retardant and resistant to corrosion and abrasion, ensuring long service life. The screw connection with tension sleeve achieves high contact force, reducing temperature rises and minimizing fire risks during operation. This terminal block uses copper-alloy contacts with tin plating for secure and dependable electrical connections.

Dimensionally compact with 27.46 mm length, 16.1 mm width, and 11.1 mm depth, it extends only 8 mm above the PCB for space-saving assembly. Its plug-in mounting system facilitates easy installation and maintenance. The operating temperature range of -40°C to +70°C ensures reliable use in harsh environmental conditions.

This product meets VDE, CSA, and EAC safety standards and approvals, guaranteeing international compliance. Typical use cases include integration in telecommunications equipment, medical devices, consumer electronics, and other industrial and laboratory electrical systems where compact, secure PCB connections are essential.

This terminal block features seven contacts arranged in a single row for streamlined PCB connection. The 3.81 mm pitch provides a compact and efficient layout for circuit boards. It supports wire sizes from 0.14 mm² to 1.5 mm² with a screw connection and tension sleeve.

The housing is made of flame-retardant polyamide in green color ensuring durability and safety. The block has a current rating of 8 A and a voltage rating of 160 V for reliable electrical performance. Compact dimensions with a length of 27.46 mm, width of 16.1 mm, and depth of 11.1 mm optimize space usage on PCBs.

Suitable for use in telecommunications, medical devices, and consumer electronics. Copper-alloy contacts are tin plated to ensure secure and corrosion-resistant connections. Operating temperature range from -40°C to +70°C ensures stable performance in various conditions.

Plug-in mounting system simplifies installation and maintenance. Explore more electronics connectors and terminal blocks in the Phoenix Contact product range on EnvMart for your industrial, laboratory, construction, and automation projects.
