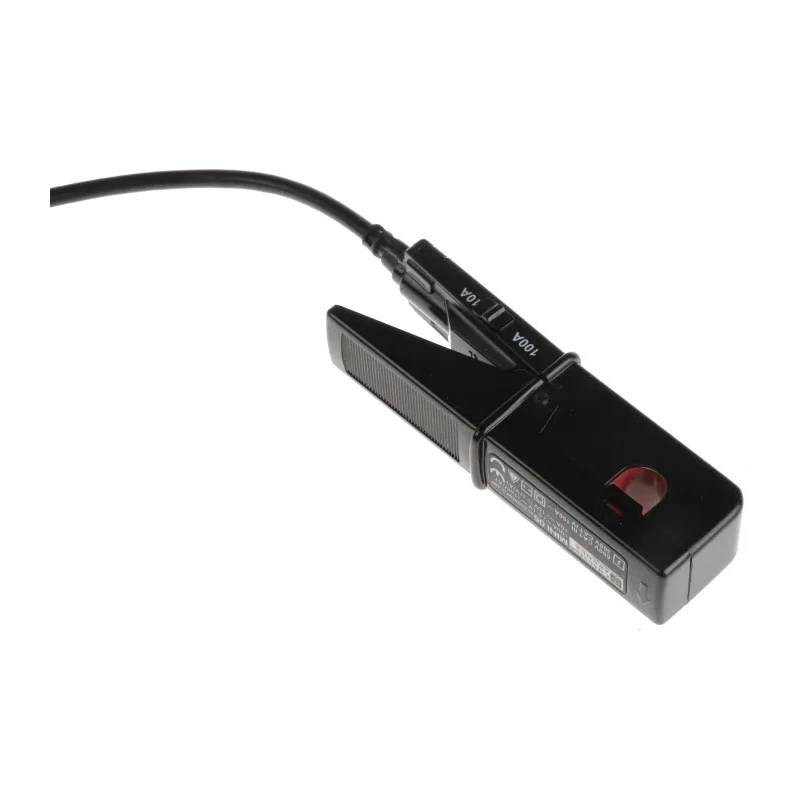

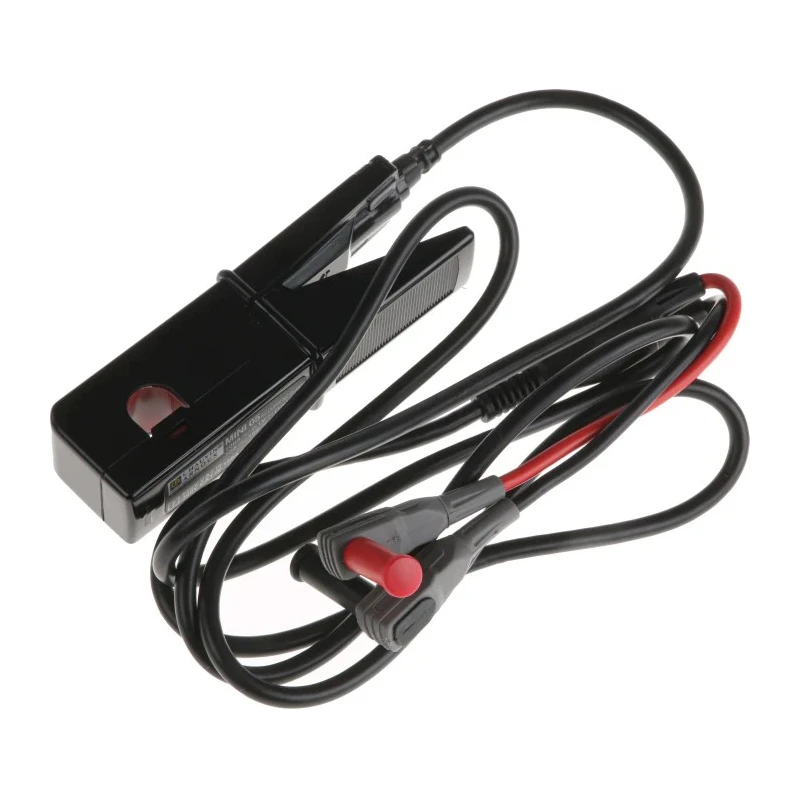

Chauvin Arnoux MINI 05 Current Clamp AC Adapter 100 A AC Max Double-Insulated Cable Output P01105105Z

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux MINI 05 Current Clamp AC Adapter 100 A AC Max Double-Insulated Cable Output P01105105Z

Name: Chauvin Arnoux MINI 05 Current Clamp AC Adapter 100 A AC Max Double-Insulated Cable Output P01105105Z
Brand: Chauvin Arnoux
SKU: 373089
Price: 20.22 USD
Availability: InStock



Category Current Clamp Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	China
Accuracy	≤ 2 %

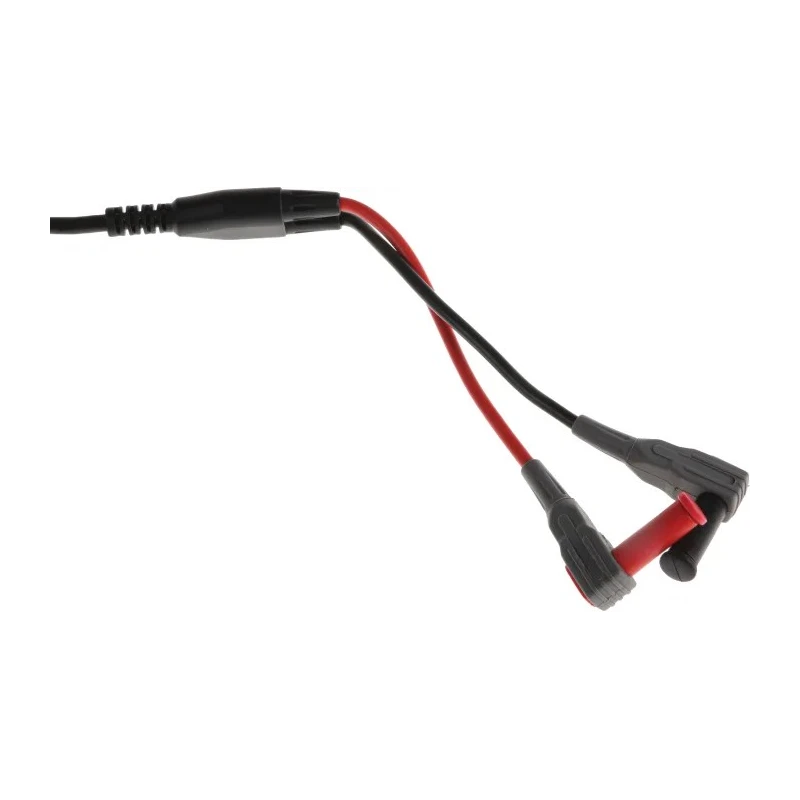

Output	Double-insulated cable 1.5 m long, terminated by 2 insulated elbowed male banana connectors Ø 4 mm
Brand	Chauvin Arnoux
Battery type	LR6, AA, Alkaline
Model	P01105105Z
Cable Length	1.5m
Connector Type	4 mm Plug
Bandwidth	48 Hz to 500 Hz
Output type	Current
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Adapter Type	AC
Clamping Capacity	Cable Ø max 10 mm
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	300, 600V
Maximum AC Current	100A
Maximum Conductor Size	10mm
Current calibre	10 A AC and 100 A AC

Key Features

Measures AC currents up to 100 A with ≤ 2% accuracy.
Compatible with conductors up to 10 mm diameter.
Features a 1.5 m double-insulated cable with 4 mm banana plug connectors.
Operates reliably from -10°C to 50°C ambient temperatures.
Complies with safety standards CAT III 300 V and CAT IV 600 V.
Bandwidth range from 48 Hz to 500 Hz ensures accurate readings in industrial environments.
Powered by LR6 AA alkaline batteries for portability and convenience.
Designed for use in low-power tertiary and industrial AC current measurement applications.

Product Description

Chauvin Arnoux P01105105Z MINI 05 Current Clamp AC Adapter is engineered for accurate AC current measurements up to 100 A, combining compact size with reliable performance for electrical testing and industrial environments. This Current Clamp features a double-insulated 1.5 m cable terminated with 4 mm banana plug connectors, ensuring safe and convenient connection to multimeters or measurement equipment.

The clamp supports conductors with a maximum diameter of 10 mm and provides two measurement ranges: 10 A AC and 100 A AC, with accuracy within 2%. Its bandwidth spans from 48 Hz to 500 Hz, suitable for most industrial AC current signals.

Designed for durability and safety, the MINI 05 complies with multiple standards including EN 61010, IEC 68 series for shock and vibration resistance, UL94 V2 self-extinguishing standards, and EMC requirements EN 61326. It is rated for CAT III 300 V and CAT IV 600 V safety categories, making it appropriate for various low-power tertiary and industrial applications.

The device operates reliably in ambient temperatures ranging from -10°C to 50°C, powered by standard LR6 AA alkaline batteries, granting flexibility for field testing. It is compact and lightweight, facilitating easy handling and storage, ideal for professionals requiring portable current measurement tools.

The clamp’s sturdy design and compliance with international certifications provide peace of mind in rigorous industrial, laboratory, and maintenance testing scenarios. Operating with a double-insulated output cable terminated by elbowed male banana connectors enhances user safety and connection reliability.

Measures AC currents up to 100 A with high accuracy and resolution. Suitable for industrial, electrical maintenance, and laboratory use. Complies with international safety and EMC standards for reliable operation. Compact, portable, and lightweight design for field use.

Includes an operating manual for straightforward setup and operation. Explore the range of electrical measuring instruments and accessories on EnvMart for professional and industrial applications.
