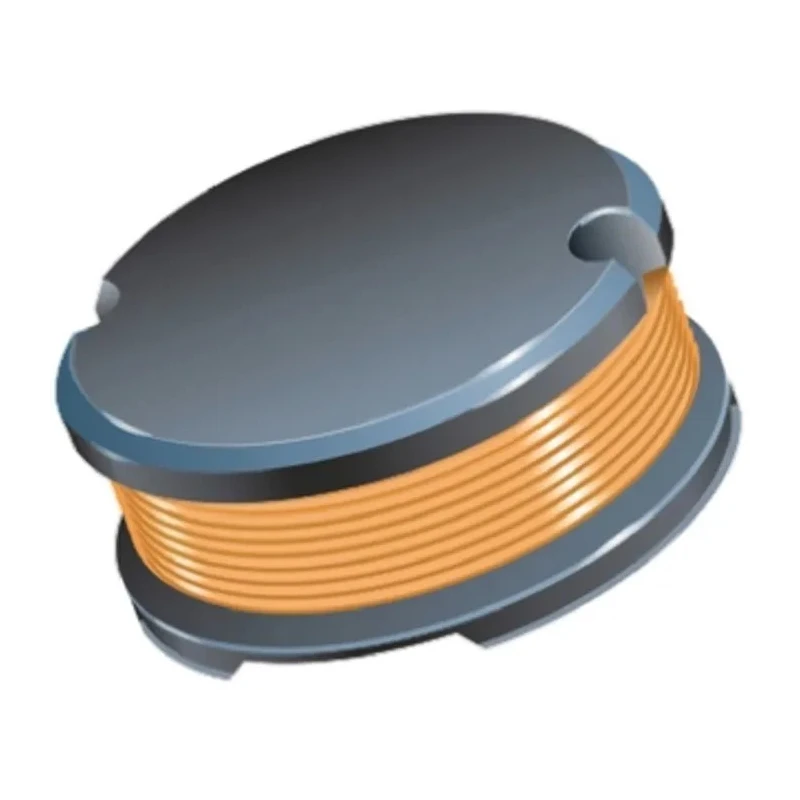

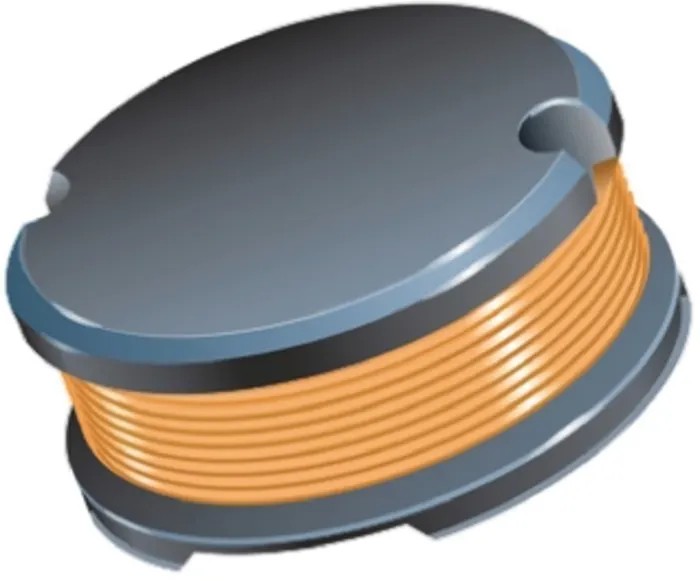

Bourns 270μH ±10% 320mA Unshielded Wirewound Surface Mount Inductor with Ferrite Core SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Tape & Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 270μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 320mA |
| Maximum DC Resistance | 1.88Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Minimum Quality Factor | 26 |
| Inductor Construction | Wirewound |
Key Features
- Compact 0604 package size with 5.8mm diameter and height of 4.8mm.
- Maximum DC resistance is 1.88Ω ensuring efficient performance.
- Wirewound construction provides stable inductance at up to 4MHz self-resonant frequency.
- Operating temperature range from -40°C to 125°C for diverse industrial applications.
- RoHS compliant with surface mount termination style for automated PCB assembly.
- Suitable for power supply circuits and DC/DC converter input/output filtering.
Product Description
Bourns SDR0604 is a new condition unshielded wirewound surface mount inductor featuring a ferrite core and 270μH inductance with ±10% tolerance. It supports a maximum DC current of 320mA and has a maximum DC resistance of 1.88Ω, enabling reliable power management in electronic circuits.
The component fits a standard 0604 case with dimensions of 5.8mm diameter, 5.8mm depth, and a height of 4.8mm. Designed for surface mounting, this inductor uses wirewound construction to ensure stable inductance performance up to a self-resonant frequency of 4MHz and a minimum quality factor of 26. It complies with RoHS environmental standards, supporting modern manufacturing requirements.
This product operates effectively within a temperature range of -40°C to 125°C, making it suitable for various industrial and commercial electronics applications. It is commonly used in input/output stages of DC/DC converters, power supplies, and filtering circuits where compact size and stable inductance are critical.
Compact 0604 package with ferrite core for effective magnetic performance. Supports 320mA maximum DC current and withstands high operating temperatures. Low DC resistance of 1.88Ω ensuring efficient power handling. Meets RoHS standards for ecological safety compliance.
Ideal for power supply filtering, DC/DC converters, and industrial electronics.
Choose Bourns SDR0604 inductors for high quality, reliability, and performance in surface mount electronic assemblies. Explore more in the Surface Mount Inductors category at EnvMart for complementary electronic components.
