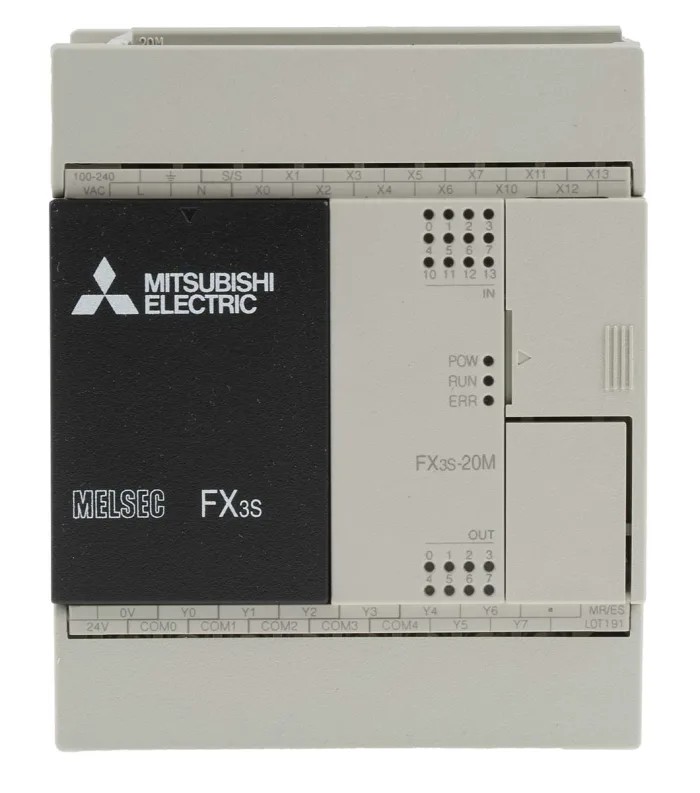

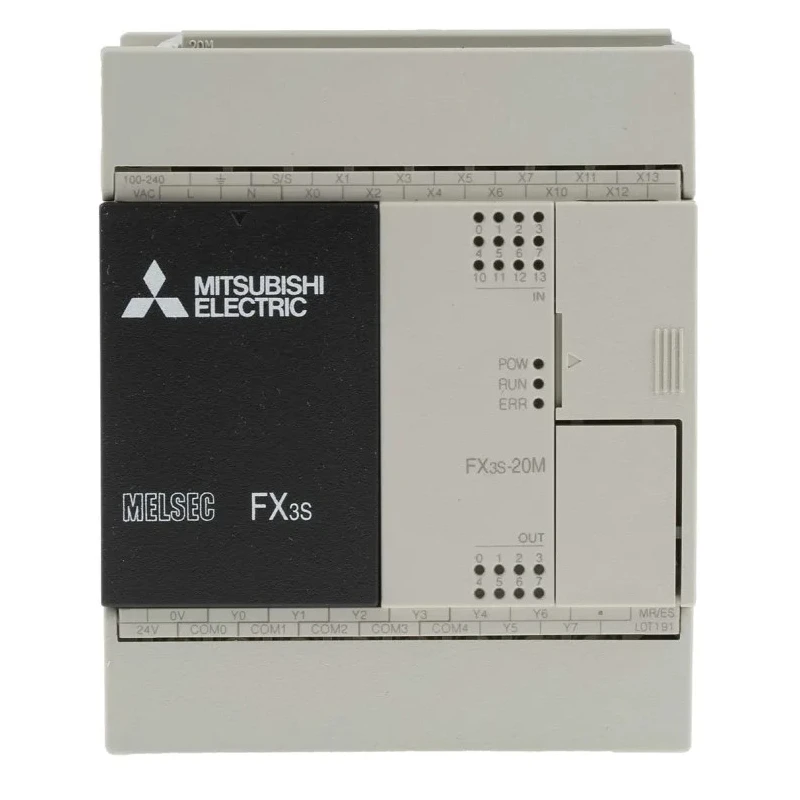

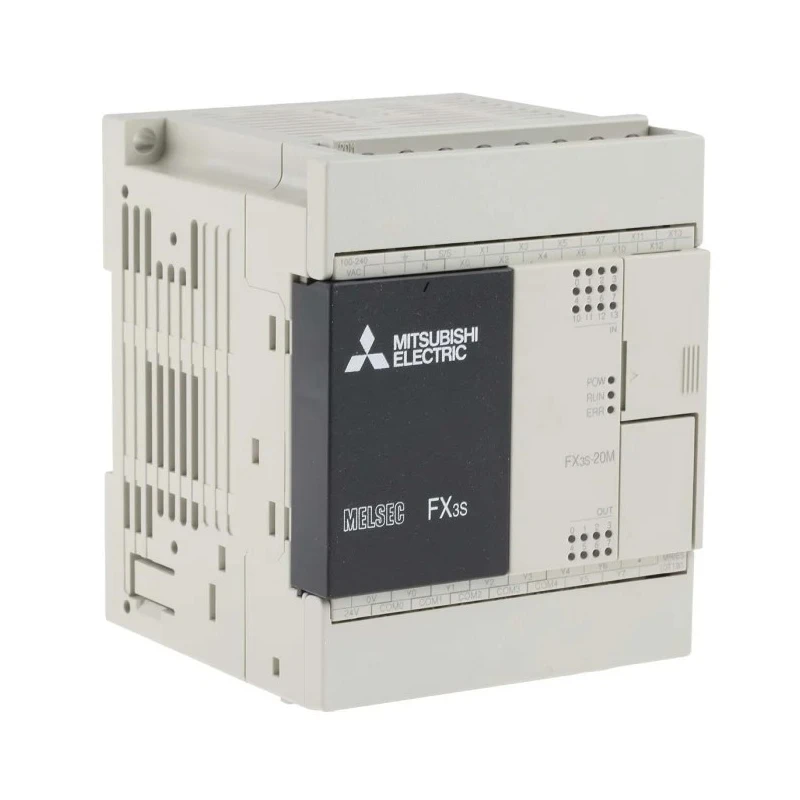

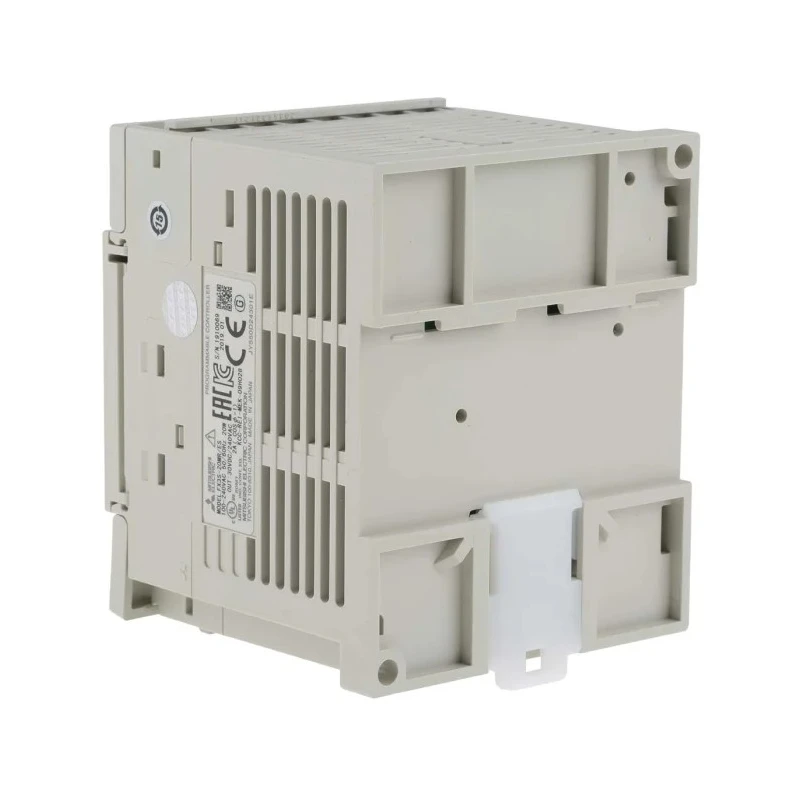

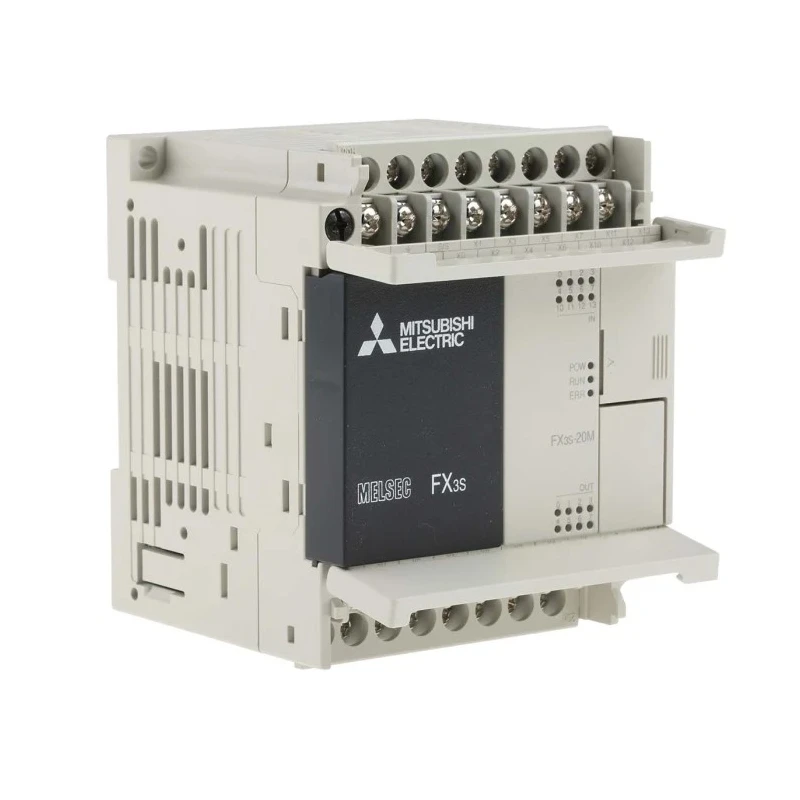

Mitsubishi Electric FX3S Series PLC CPU 12-Input DC Input 8 Outputs Relay Transistor Output
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Mitsubishi Electric |
| Length | 75mm |
| Model | FX3S |
| Depth | 90mm |
| Width | 75mm |
| Mount Type | Wall Mount |
| Number of inputs | 12 |
| Output type | Relay, Transistor |
| Series | FX3S |
| Output Current | 2A |
| Input Type | DC |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet communication expansion possible |
| Number of outputs | 8 |
| Program Capacity | 4000Steps |
| Standards/Approvals | CE, UL |
| Number of Communication Ports | 2 |
| Communication Port Type | RS422, USB |
| Programming Language Used | Sequential function chart (SFC), Step Ladder, Instruction List (IL) |
| RS PRO Logic Controller, 12-Input, AC Input, 8 Outputs, Relay OutputRS Stock No. | 266-5073Brand: RS PRO |
Key Features
- Compact and high-performance FX3S series PLC CPU with 12 digital inputs.
- Supports DC input type with 8 relay and transistor outputs for versatile control.
- Equipped with RS422 and USB communication ports for programming and network expansion.
- Battery backup included and capable of storing 4000 steps program capacity.
- Operating temperature range of 0°C to 55°C for reliable industrial use.
- Wall mount design with dimensions 75mm x 75mm x 90mm for easy integration.
- Compatible with programming languages such as Sequential function chart, Step Ladder, and Instruction List.
- Output current rating of 2A supporting various loads in automation systems.
Product Description
Mitsubishi Electric FX3S-20MR/ES is a member of the FX3S Series PLC CPUs designed for industrial automation applications requiring reliable control and communication. This 3rd generation compact PLC CPU features 12 digital DC inputs (24VDC sink/source) and 8 outputs combining relay and transistor types, providing flexible control options.
The unit includes RS422 and USB ports for programming communication and supports Ethernet and Modbus networking, allowing integration into advanced industrial control systems. It is equipped with maintenance-free EEPROM memory and battery backup, ensuring data retention and stable operation in production environments.
The FX3S-20MR/ES is programmed using Sequential Function Chart (SFC), Step Ladder, and Instruction List (IL) languages, suited for automation engineers. Its compact dimensions of 75mm width, 75mm height, and 90mm depth allow space-saving wall mount installations, ideal for cost-conscious and space-limited setups.
The device has an operating temperature range of 0°C to 55°C, making it suitable for various industrial environments including robotics, automobile industry, and general industrial automation.
High performance with minimal size footprint. Scalable communication options including RS422, USB, Ethernet, and Modbus. Battery backup enabled for program retention and reliability. Flexible output types allowing both relay and transistor control outputs.
Supports up to 4000 programming steps with ample memory capacity. Complies with international CE and UL certifications ensuring safety.
This Mitsubishi Electric PLC CPU is a ideal fit-for-purpose solution for automation tasks requiring up to 30 input/output points without regular maintenance, enabling long-term industrial process control.
Explore the comprehensive Mitsubishi Electric PLC range on EnvMart for tailored industrial automation solutions.
