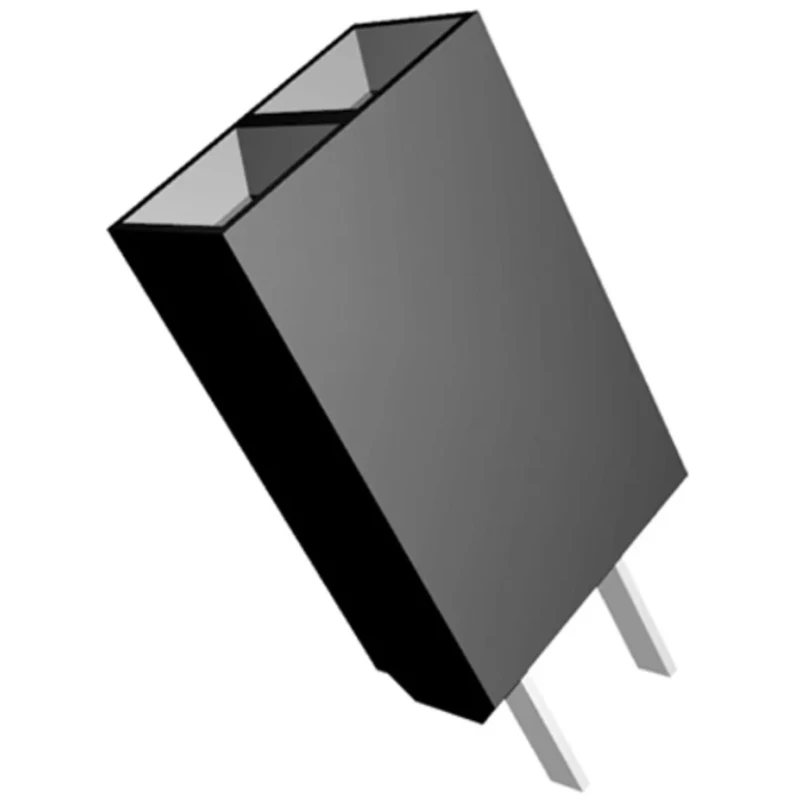

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Socket, 2-Contact, 2 Row, 2.54 mm Pitch Solder 5-534206-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 333V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Gold |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a through hole mount ensuring sturdy PCB installation.
- Gold-plated female contacts offer excellent conductivity and corrosion resistance.
- Constructed from high-temperature 94V-0 thermoplastic liquid crystal polymer housing.
- Designed for operating temperatures between -65°C and 105°C for robust performance.
- Supports current rating up to 12 A and voltage rating of 333 V.
- Offers straight orientation with a compact 2.54 mm row pitch in the AMPMODU MOD II series.
- Ensures end stackability and closed entry housings to prevent post stubbing.
- Suitable for industrial automation, control systems, and electronics manufacturing.
Product Description
TE Connectivity 5-534206-1 AMPMODU MOD II Series Straight Through Hole PCB Socket is a durable and precise connector designed for board-to-board applications. It features two rows with two female contacts each, arranged in a 2.54 mm pitch.
The connector housing is made of a high-temperature resistant 94V-0 thermoplastic liquid crystal polymer, ensuring excellent thermal and mechanical stability during soldering and operation. The gold contact plating provides superior electrical conductivity and resistance against corrosion, contributing to long-term reliability.
Designed to withstand temperatures ranging from -65°C to 105°C, this PCB socket supports currents up to 12 A and a voltage rating of 333 V, making it ideal for demanding industrial electronics and automation tasks.
The through hole mounting type facilitates strong mechanical PCB attachment, while the straight orientation allows straightforward board-to-board connection. The AMPMODU MOD II design includes closed entry housings to minimize damage to contacts during handling and installation, along with end stackable assembly features to expand connectivity options efficiently.
Applications include manufacturing, industrial automation, control systems, and equipment requiring reliable electrical interconnects in demanding environments. The socket features a through hole mount ensuring sturdy PCB installation.
Gold-plated female contacts offer excellent conductivity and corrosion resistance. Constructed from high-temperature 94V-0 thermoplastic liquid crystal polymer housing. Designed for operating temperatures between -65°C and 105°C for robust performance.
Supports current rating up to 12 A and voltage rating of 333 V. Offers straight orientation with a compact 2.54 mm row pitch in the AMPMODU MOD II series. Ensures end stackability and closed entry housings to prevent post stubbing.
Suitable for industrial automation, control systems, and electronics manufacturing. Explore more TE Connectivity products and AMPMODU connectors at EnvMart for your electronics projects and industrial applications.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 333 V.
This model supports a maximum current of 12 A.
The pitch size of the contacts in this connector is 2.54 mm.
The housing is constructed from high-temperature 94V-0 thermoplastic liquid crystal polymer.
The operating temperature range for this socket is between -65°C and 105°C.
This connector has a total of 2 contacts, both of which are female.
This PCB socket uses through hole mounting for secure installation.
This model utilizes solder termination for connecting to the PCB.
The orientation of this connector is straight, allowing for direct board-to-board connections.
This socket is suitable for applications in industrial automation, control systems, and electronics manufacturing.
The socket features closed entry housings to prevent post stubbing and protect the contacts during handling and installation.
Yes, this model is designed for end stackability, allowing for expanded connectivity options.
