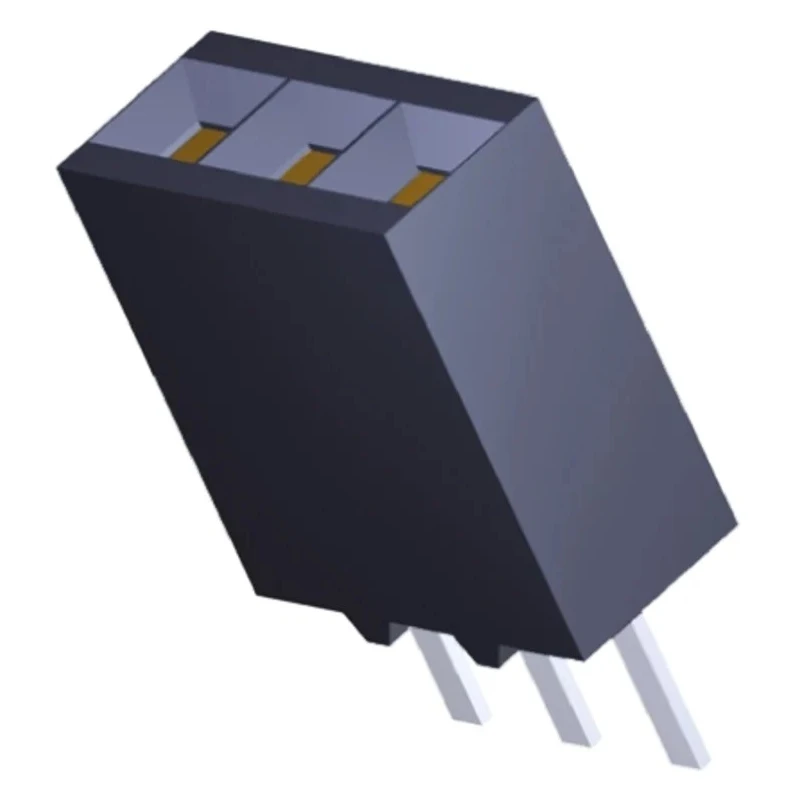

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Socket 3-Contact 1 Row 2.54 mm Pitch Solder 5-534237-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact design with 3 contacts in a single row for reliable connections.
- Features a 2.54 mm pitch and straight orientation for through-hole mounting.
- Housing is made from high-temperature liquid crystal polymer material.
- Designed for 12A current and operating voltage up to 750V.
- Contacts are female bronze with gold plating for enhanced conductivity and corrosion resistance.
- Capable of operating in temperatures ranging from -65°C to 105°C.
- End stackable design with closed entry housings preventing post stubbing.
- Suitable for industrial automation and control applications.
Product Description
TE Connectivity 5-534237-1 AMPMODU MOD II Series Straight Through Hole PCB Socket is a precision electronic connector designed for reliable board-to-board interconnections. It features 3 contacts arranged in a single row with a 2.54 mm pitch and solder termination type, ensuring robust mechanical and electrical performance in various industrial and electronic applications.
The socket housing is constructed from a high-temperature-resistant liquid crystal polymer, rated at 94V-0, enabling it to withstand demanding operating environments. The female contacts are made of bronze and plated with gold to provide excellent conductivity and durability, which is ideal for automation, control systems, manufacturing, and other industrial usage.
This connector supports a current rating of 12A and an operating voltage up to 750V, accommodating a range of power and signal transmission needs. Its temperature operation range spans from a minimum of -65°C to a maximum of 105°C, making it suitable for various thermal conditions.
The AMPMODU Mod II receptacle assembly is end stackable and designed with closed entry housings to prevent post stubbing, enhancing reliability during PCB assembly and operation. The compact and economical design of this board-to-board system makes it a preferred choice for engineers seeking space-saving connector solutions in electronic designs.
Compact 3-contact single row configuration with 2.54 mm pitch. High-temperature liquid crystal polymer housing rated 94V-0. Gold-plated bronze female contacts ensure excellent conductivity. Supports 12A current and 750V operating voltage.
Operates reliably between -65°C and 105°C temperature ranges. End stackable with closed entry housings to prevent post stubbing. Ideal for industrial automation, manufacturing, and electronic equipment. Board-to-board connector system delivering compact and reliable interconnections.
This TE Connectivity AMPMODU MOD II PCB Socket is engineered to meet demanding industrial standards and is designed to enhance production efficiency and reliability in electronic assemblies. Explore similar connectors and accessories in the Electronics & Electricals category at EnvMart for comprehensive system solutions.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 12A.
It has an operating voltage of up to 750V.
The housing is made from high-temperature liquid crystal polymer material.
The contacts are arranged with a pitch of 2.54 mm.
This connector features 3 contacts in a single row.
It operates reliably in temperatures ranging from -65°C to 105°C.
It uses a solder termination type for secure connections.
The female contacts are made of bronze and plated with gold.
Yes, it is designed for through-hole mounting.
This model features a straight orientation.
It is suitable for industrial automation and control applications.
The country of origin for this product is China.
