STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V Z0103MA 1AA2

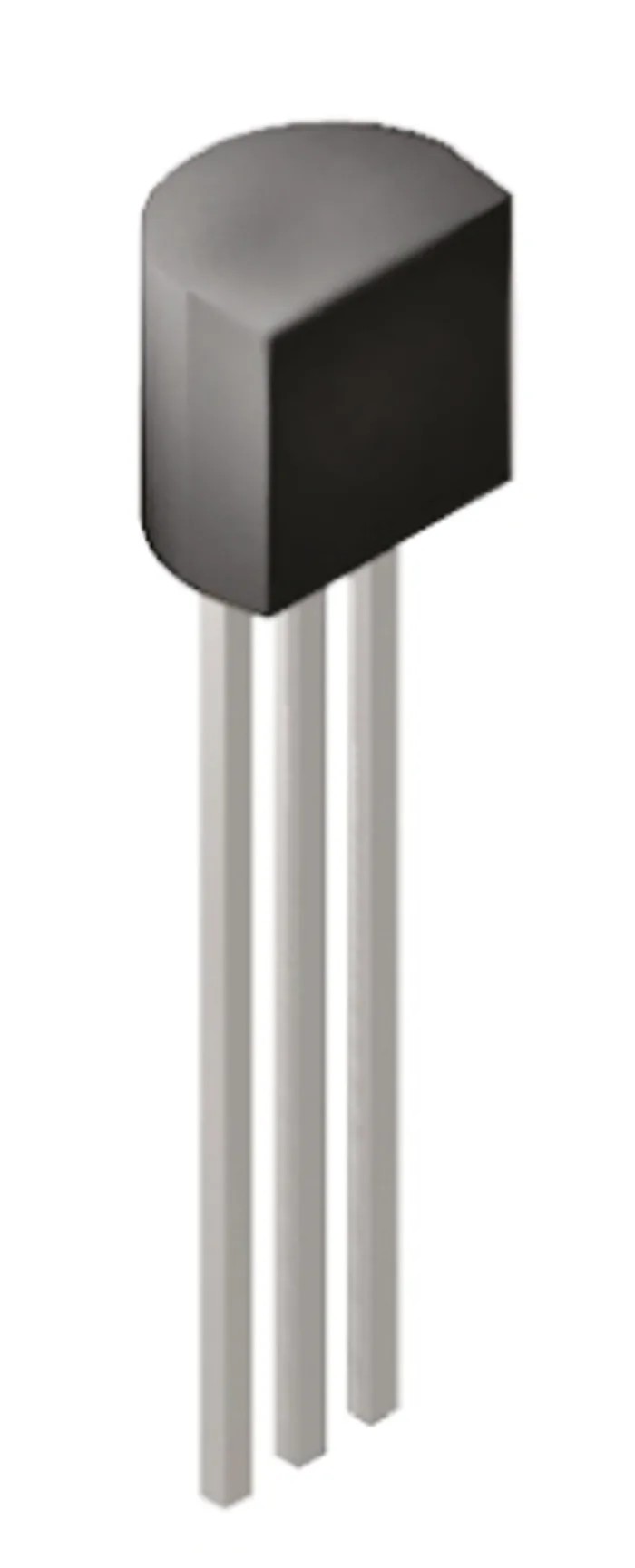

STMicroelectronics Z0103MA 1AA2 is a high-quality through hole TRIAC, featuring a 3-pin single configuration designed for switching and phase control tasks in industrial, commercial, and electronic applications. It supports a repetitive peak reverse voltage of up to 600 V and is packaged in a reliable TO-92 form factor measuring 4.7mm in length and 4.4mm in height. This device is well-suited for applications requiring compact size, low gate trigger voltage of 1.3 V, and low gate trigger current of 5mA.

The TRIAC can withstand surge currents up to 8.5A and maintains a maximum holding current of 7mA ensuring robust performance in dynamic load conditions. Its peak on-state voltage of 1.6V results in efficient conduction, reducing power losses during operation. Operating temperature ranges from -40°C to 125°C, allowing use in varied environments and demanding industrial conditions. The STMicroelectronics Z0103MA 1AA2 complies with RoHS directives, promoting environmentally safe manufacturing and disposal.

This TRIAC is ideal for use in industrial motor controls, lighting controls, temperature control systems, and other phase angle control applications. It supports mounting flexibility through its through hole format, fitting standard PCB designs.

Rated average on-state current of 1A for stable control. Surge current rating of 8.5A for high transient tolerance. Compact TO-92 package with dimensions 4.7mm length and 4.4mm height. Maximum gate trigger current of 5mA ensures low triggering requirements.

Operates reliably in temperatures ranging from -40°C to 125°C. Peak on-state voltage is 1.6V minimizing conduction losses. Compliant with RoHS environmental standards for safer applications. 3-pin single configuration suitable for through hole mounting.

Maximum holding current of 7mA for device stability. Discover a wide range of semiconductor components at EnvMart, including TRIACs for all your industrial and electronic needs.
