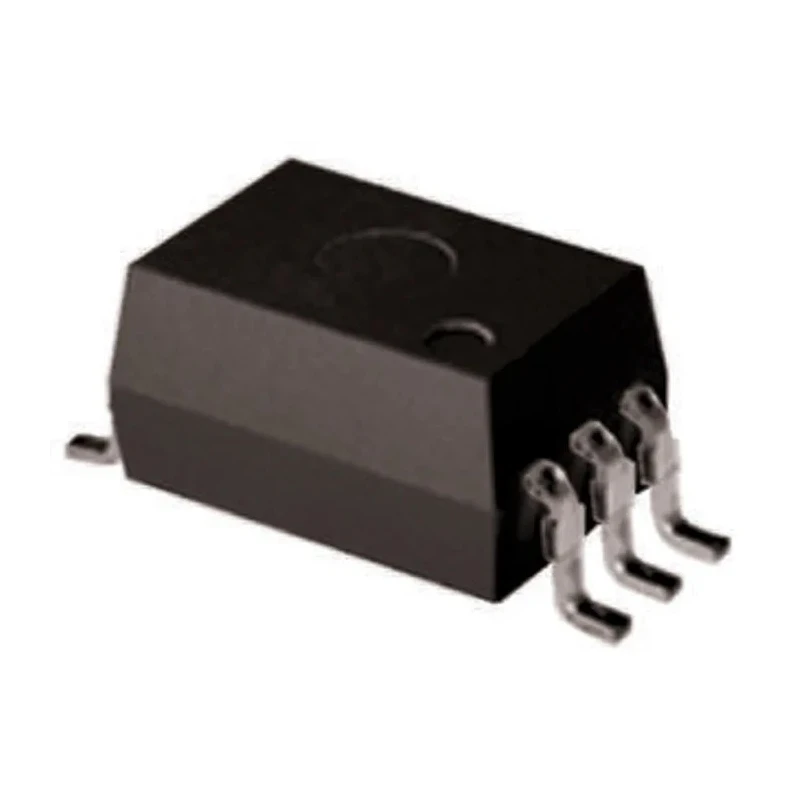

Skyworks Solutions Inc MOSFET Gate Driver 4A Output Current 6-Pin SDIP 30V Surface Mount AEC-Q100 Si8261BAD-C-IS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Skyworks Solutions Inc |
| Height | 2.05mm |
| Length | 4.58mm |
| Model | Si8261BAD-C-IS |
| Width | 11.5mm |
| Mount Type | Surface |
| Series | Si826x |
| Output Current | 4A |
| Maximum Operating Temperature | 125°C |
| Package Type | SDIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 5.5ns |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 30V |
| Number of Drivers | 1 |
| Fall Time | 8.5ns |
| Driver Type | MOSFET |
Key Features
- Designed for driving power MOSFETs and IGBTs in inverter and motor control applications.
- Employs proprietary silicon isolation technology with 5.0 kV RMS isolation capability.
- Operates reliably from -40°C to 125°C, meeting automotive AEC-Q100 standards.
- Features fast switching with 5.5 ns rise time and 8.5 ns fall time for efficient performance.
- Surface mount mount type suitable for modern PCB assembly processes.
- Series Si826x provides pin-compatible upgrades for gate drive optocouplers.
Product Description
Skyworks Solutions Inc Si8261BAD-C-IS is a high-performance MOSFET gate driver providing a 4 A output current and operating from a 30V supply voltage. It comes in a 6-pin SDIP package designed for surface mounting, with compact dimensions of 11.5 mm width, 4.58 mm length, and 2.05 mm height.
This device supports efficient driving of power MOSFETs and IGBTs used in a variety of inverter and motor control applications. It utilizes Silicon Labs proprietary silicon isolation technology enabling isolation ratings up to 5.0 kV RMS, which delivers improved performance with reduced variation over temperature and age, enhanced part-to-part matching, and superior common-mode rejection compared to traditional optocouplers.
The Si8261BAD-C-IS features fast switching capabilities with rise times of 5.5 ns and fall times of 8.5 ns, ensuring prompt switching of the load devices. It operates reliably within a temperature window from -40°C to 125°C and adheres to the automotive standard AEC-Q100 for robust automotive-grade performance.
The single driver device supports 5 outputs and is part of the Si826x series, which are pin-compatible drop-in upgrades for existing gate drive optocoupler designs. This enhances design flexibility and ease of replacement in existing systems.
4 A output current capability suitable for driving power MOSFETs and IGBTs. Silicon isolation technology with 5.0 kV RMS rating for enhanced robustness. Wide operating temperature range from -40°C to 125°C, compliant with automotive standards.
Fast switching with rise and fall times of 5.5 ns and 8.5 ns respectively. Compact 6-pin SDIP surface mount package facilitates modern PCB assembly. Part of the Si826x series, offering pin-compatible upgrades to existing designs.
This high-reliability MOSFET gate driver is suited for industrial, automotive, and power management applications where isolation and fast switching are critical. It is ideal for use in motor drives, power inverters, and similar power electronics equipment requiring robust gate drive solutions.
Explore more products in the Gate Drivers category at EnvMart for a wide selection of power management components from leading brands including Skyworks Solutions Inc.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output current capability of 4 A, suitable for driving power MOSFETs and IGBTs.
The maximum operating temperature for the Si8261BAD-C-IS is 125°C, making it suitable for high-temperature applications.
This unit features a rise time of 5.5 ns and a fall time of 8.5 ns, ensuring efficient performance in switching applications.
The dimensions of this model are 11.5 mm in width, 4.58 mm in length, and 2.05 mm in height.
The minimum supply voltage required for the Si8261BAD-C-IS is 30V.
This device supports 5 outputs, allowing it to drive multiple loads effectively.
It complies with the automotive AEC-Q100 standard, ensuring reliability in automotive applications.
This model is designed for surface mounting, which is suitable for modern PCB assembly processes.
This gate driver employs silicon isolation technology with a 5.0 kV RMS isolation capability, enhancing robustness.
It operates reliably within a temperature range from -40°C to 125°C, making it suitable for various environments.
This model is designed for driving power MOSFETs and IGBTs, particularly in inverter and motor control applications.
