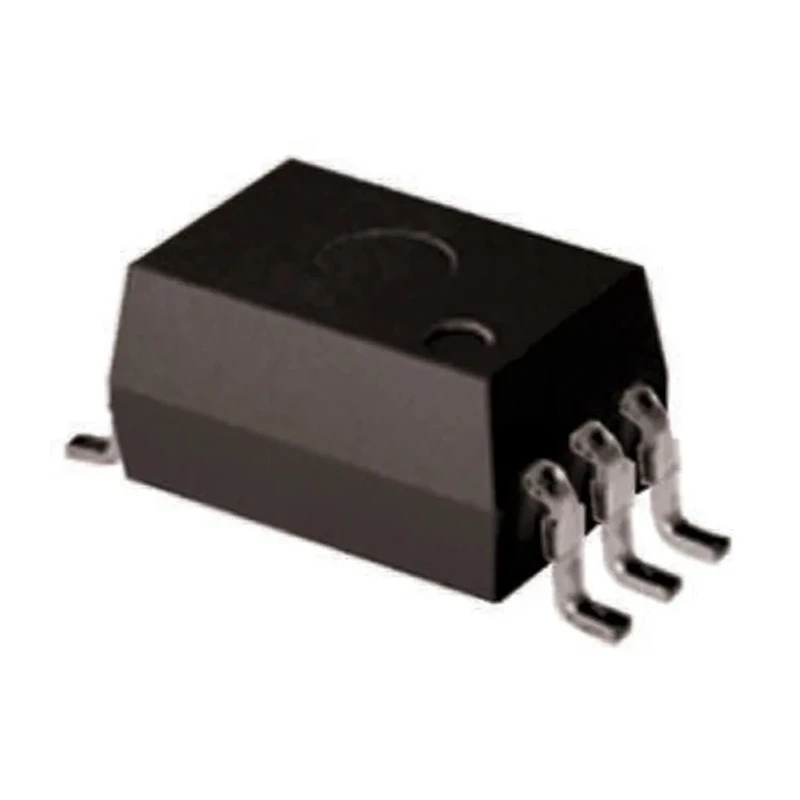

Skyworks Solutions Inc MOSFET Gate Driver 4 A 6-Pin 30V Surface Mount AEC-Q100 Si8261ABD-C-IS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Skyworks Solutions Inc |
| Height | 2.05mm |
| Length | 4.58mm |
| Model | Si8261ABD-C-IS |
| Width | 11.5mm |
| Mount Type | Surface |
| Series | Si826x |
| Output Current | 4A |
| Maximum Operating Temperature | 125°C |
| Package Type | SDIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 5.5ns |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 30V |
| Number of Drivers | 1 |
| Fall Time | 8.5ns |
| Driver Type | MOSFET |
Key Features
- Supports a maximum supply voltage of 30V for efficient MOSFET driving.
- Features fast switching with a rise time of 5.5 ns and fall time of 8.5 ns.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Compliant with automotive standard AEC-Q100 ensuring high reliability.
- Designed as a single driver with five outputs for versatile power management applications.
- Ideal for use in inverter and motor control applications requiring isolated gate driving.
Product Description
Skyworks Solutions Inc Si8261ABD-C-IS MOSFET Gate Driver is a high-performance isolated gate driver IC delivering 4 A output current in a compact 6-pin SDIP package. This surface mount device is engineered to operate efficiently with a supply voltage up to 30V and features fast switching times with a rise time of 5.5 ns and a fall time of 8.5 ns.
Designed with automotive-grade reliability complying with AEC-Q100, it operates over a wide temperature range from -40°C to 125°C, ensuring robust performance in harsh environments. The compact physical dimensions of 4.58 mm length, 11.5 mm width, and 2.05 mm height facilitate space-saving PCB designs.
The Si8261ABD-C-IS is an isolated driver employing proprietary silicon isolation technology capable of supporting up to 5.0 kV RMS isolation. This technology offers improved performance with tighter component matching, superior temperature stability, and enhanced common-mode noise rejection compared with opto-coupler alternatives.
This device contains one driver with five outputs, making it suited for driving power MOSFETs and IGBTs in industrial, automotive, inverter, and motor control circuits. The surface mount (SMT) design supports efficient automated assembly and integration within power management systems.
Maximum output current: 4 A. Supply voltage: 30 V maximum. Switching performance: 5.5 ns rise time, 8.5 ns fall time. Operating temperature range: -40°C to 125°C. Automotive-grade AEC-Q100 certified. Compact SDIP-6 package for surface mounting.
High voltage isolation up to 5.0 kV RMS.
This MOSFET gate driver is ideal for use across a variety of power management and semiconductor applications including industrial automation, automotive electronics, and renewable energy systems.
Explore more industrial-grade power management ICs and Gate Drivers on EnvMart for reliable and efficient electronic system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30V.
It can deliver an output current of 4 A.
The rise time is 5.5 ns and the fall time is 8.5 ns.
This model operates reliably in temperatures ranging from -40°C to 125°C.
It contains one driver with five outputs.
The device comes in a compact SDIP-6 package for surface mounting.
Yes, it is compliant with the automotive standard AEC-Q100, ensuring high reliability.
It supports high voltage isolation up to 5.0 kV RMS.
The dimensions are 4.58 mm in length, 11.5 mm in width, and 2.05 mm in height.
It is suitable for driving power MOSFETs and IGBTs in industrial, automotive, inverter, and motor control circuits.
This model is designed as a MOSFET driver.
The minimum operating temperature is -40°C.
