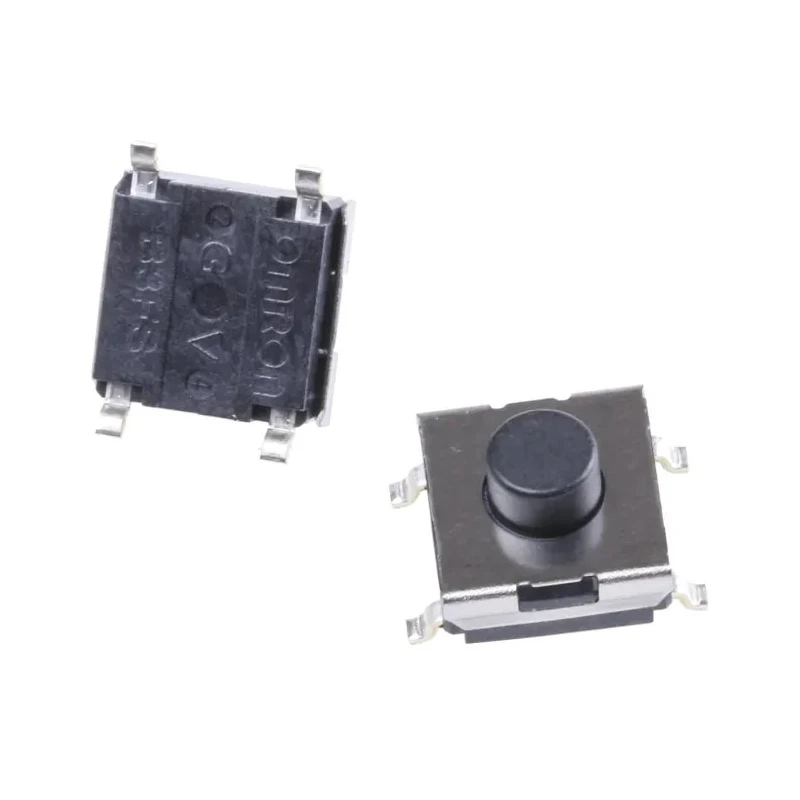

Omron Black Tactile Switch Plunger 1.7 mm SPST 50mA 24 V dc Surface Mount B3FS-1010P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 4.3mm |
| Length | 6.3mm |
| Model | B3FS-1010P |
| Width | 6.3mm |
| Mount Type | Surface |
| Series | B3FS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -25°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 1.7mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 0.98N |
| Mechanical Life | 1000000Operations |
Key Features
- Operates with a contact current of 50mA at 24 V dc.
- Black straight plunger actuator with a length of 1.7 mm.
- Compact dimensions measuring 6.3 mm length and width and 4.3 mm height.
- Surface mount type with momentary switch operation.
- Designed for reliable mechanical life of 1,000,000 operations.
- Operating temperature range from -25°C to 70°C ensures versatility.
- RoHS compliant ensuring environmental safety.
- Provides positive tactile feedback through its plunger style actuator.
Product Description
Omron B3FS-1010P is a high-quality black tactile switch featuring a plunger actuator of 1.7 mm length, with SPST contact configuration and a surface mount terminal type. It is engineered for momentary (on-off) switch operation, suitable for various industrial and commercial electronic applications.
This switch supports a contact DC voltage of 24 V with a maximum switch contact current of 50mA, making it ideal for low-power signal circuits commonly used in audio equipment, office devices, measuring instruments, televisions, and PVRs.
Its compact size with dimensions of 6.3 mm by 6.3 mm and a height of 4.3 mm allows easy integration into tight electronic assemblies. The actuator's black plunger is straight and provides a positive click action enhancing operator feedback and control precision.
The component is designed to operate reliably across a wide temperature range from -25°C to 70°C, ensuring stability in diverse environmental conditions. With an operating force of 0.98N and a mechanical life expectancy of 1,000,000 operations, this tactile switch ensures long-lasting performance and durability.
The B3FS-1010P is supplied with tape reel or strip packaging formats where the suffix "P" indicates reel packaging for enhanced production efficiency in automated assembly lines. Operates with a contact current of 50mA at 24 V dc.
Black straight plunger actuator with a length of 1.7 mm. Compact dimensions measuring 6.3 mm length and width and 4.3 mm height. Surface mount type with momentary switch operation. Designed for reliable mechanical life of 1,000,000 operations.
Operating temperature range from -25°C to 70°C ensures versatility. RoHS compliant ensuring environmental safety. Provides positive tactile feedback through its plunger style actuator.
This tactile switch is highly suited for industrial, laboratory, electronics manufacturing, and commercial equipment requiring reliable, compact momentary switches. Explore our extensive catalog for more Tactile Switches and related electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is SPST (Single Pole Single Throw).
The maximum operating temperature for the B3FS-1010P is 70°C.
This tactile switch is designed for a mechanical life expectancy of 1,000,000 operations.
The dimensions of this model are 6.3 mm in length and width, and 4.3 mm in height.
The B3FS-1010P utilizes a surface mount type for installation.
The operating force required for the B3FS-1010P is 0.98N.
This tactile switch operates at a contact DC voltage of 24V.
The actuator style is a plunger with a straight orientation and a length of 1.7 mm.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The minimum operating temperature for the B3FS-1010P is -25°C.
The switch operation type is momentary, meaning it functions as an on-off switch.
This tactile switch is suitable for various industrial and commercial electronic applications, including audio equipment, office devices, and measuring instruments.
