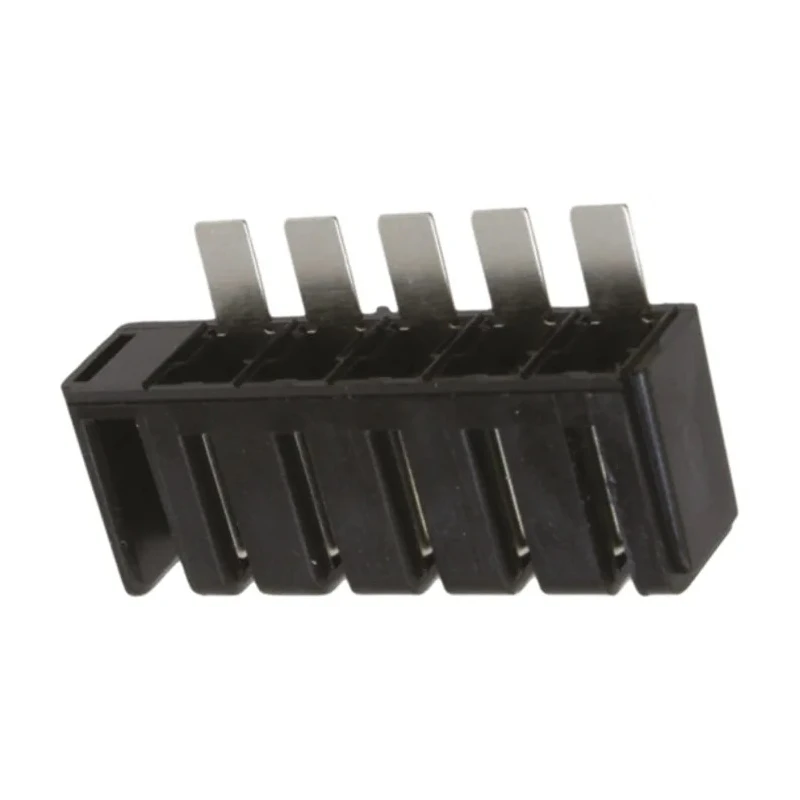

TE Connectivity AMPMODU HV100 Series Right Angle Panel PCB Socket, 5-Contact, 1 Row, 5 mm Pitch, 50V, Polyamide Housing HV100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | HV100 |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with polyamide housing for durability and insulation.
- Features right angle orientation for efficient board-to-board connection.
- Rated for up to 50 volts operating voltage.
- Operates reliably between -55°C and 105°C temperature range.
- Featuring female copper contacts for excellent conductivity.
- Complies with RoHS standards ensuring environmental safety.
- Part of the AMPMODU HV100 series, known for robust connector solutions.
- Ideal for PCB socket applications in electronics and electrical systems.
Product Description
TE Connectivity HV100 Series Right Angle Panel PCB Socket is a high-quality electronic connector ideal for board-to-board and wire-to-board interfaces. It provides a reliable 5-contact connection on a single row, with a 5 mm pitch designed for firm solder termination onto panels.
Featuring a polyamide housing, this socket offers durability and insulation to withstand industrial applications. Its right angle orientation allows efficient space utilization on PCB assemblies and panels.
The connector system operates within a voltage rating of 50 volts, suitable for a wide range of low-power electronic circuits. It is capable of operating across a broad temperature range from -55°C to 105°C, making it suitable for both harsh and temperature-variable environments.
The female contacts are made of copper, providing excellent electrical conductivity and corrosion resistance. The connector complies with RoHS environmental directives, ensuring safe and eco-friendly usage.
This PCB socket is widely used in industrial, laboratory, and manufacturing sectors for electronic component connections where precise, durable, and secure connections are critical. It supports applications in power connectors, electronic components, and PCB connection systems.
Constructed with polyamide housing for durability and insulation. Features right angle orientation for efficient board-to-board connection. Rated for up to 50 volts operating voltage. Operates reliably between -55°C and 105°C temperature range.
Featuring female copper contacts for excellent conductivity. Complies with RoHS standards ensuring environmental safety. Part of the AMPMODU HV100 series, known for robust connector solutions. Ideal for PCB socket applications in electronics and electrical systems.
Explore a wide range of PCB Sockets and electronic connectors on EnvMart for your industrial and commercial electronics requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for up to 50 volts operating voltage, making it suitable for low-power electronic circuits.
It operates reliably between -55°C and 105°C, allowing it to function in both harsh and temperature-variable environments.
The housing is made from polyamide, and the female contacts are constructed from copper, providing durability and excellent electrical conductivity.
This model features 5 contacts arranged in a single row, designed for firm solder termination onto panels.
The pitch of this socket is 5 mm, which is standard for many PCB applications.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This PCB socket uses solder termination, which provides a secure and reliable connection to the PCB.
It features a right angle orientation, allowing for efficient board-to-board connections and space utilization on PCB assemblies.
It is widely used in industrial, laboratory, and manufacturing sectors for electronic component connections, particularly in power connectors and PCB connection systems.
The country of origin for this PCB socket is India.
This model is part of the AMPMODU HV100 series, which is known for robust connector solutions.
The contact gender of this model is female, designed for reliable connections in electronic applications.
