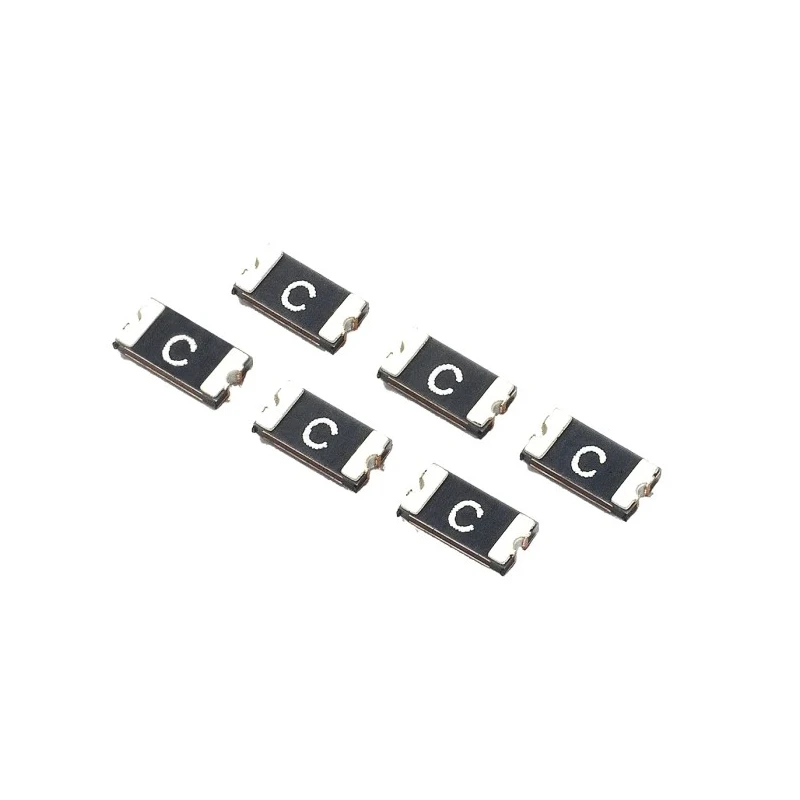

Littelfuse 0.2 A Resettable Fuse 24V DC, Surface Mount, 1206 Series 1206L020YR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | Littelfuse |
| Height | 0.75mm |
| Length | 3.4mm |
| Model | 1206L020YR |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | 1206L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Interfaces | USB peripherals |
| Trip Current | 0.42A |
| Power Dissipation | 0.6W |
| Terminal Material | Solder Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 0.1s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.65Ω |
| Maximum Resistance | 2.6Ω |
Key Features
- Designed for surface mount applications with a compact 1206 package size.
- Provides fast response to fault currents with 0.1 second trip time.
- Features low resistance and low power dissipation of 0.6W.
- Solder plated copper terminals ensure reliable connections.
- Temperature range from -40°C to 85°C suitable for varied environments.
- Meets RoHS compliance standards for environmental safety.
- Ideal for USB peripherals, mobile phones, PDAs, and game console port protection.
- Packaged on reels to enhance manufacturing efficiency.
Product Description
Littelfuse 1206L020YR Resettable Fuse is a surface mount fuse designed for overcurrent protection in low voltage applications with a 24V DC rating and 0.2 A hold current. It is part of the 1206L series, known for its small footprint and fast response to fault currents, providing reliable protection in compact electronic devices.
The fuse’s compact length of 3.4 mm, width of 1.8 mm, and height of 0.75 mm make it ideal for applications where space is limited. The solder plated copper terminals facilitate strong and consistent solder joints during assembly.
It features a trip current of 0.42A and a rapid trip time of 0.1 seconds, ensuring sensitive protection against overcurrent conditions. Operating temperature ranges from -40°C to 85°C, making it suitable for a variety of industrial and commercial electronic environments.
Power dissipation is low at 0.6W, contributing to efficient thermal management in critical circuit designs. The fuse complies with RoHS standards, supporting environmental and safety regulations.
Typical applications include protection for USB peripherals, mobile phones, PDAs, and game consoles, where reliable and space-saving resettable fuses are essential. Packaged in reels, the product supports automated assembly processes, improving production efficiency in manufacturing facilities.
Designed for surface mount with a 1206 package size and low-profile design. Fast fault response enhances circuit protection reliability. Low resistance maintains circuit performance and reduces power loss. Compliance with RoHS environmental standards.
Wide temperature operating range supports diverse applications. Robust solder plated copper terminals for excellent connectivity. Packaged on reels for streamlined manufacturing integration. Application areas include consumer electronics and portable devices protection.
Explore a wide range of Resettable Fuses from Littelfuse and related circuit protection devices at EnvMart for industrial, commercial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 0.2 A, which indicates the maximum continuous current it can carry without tripping.
The trip current for this resettable fuse is 0.42 A, meaning it will disconnect the circuit when the current exceeds this value.
The maximum operating temperature for this unit is 85°C, allowing it to function in a variety of environments.
This model is packaged in a compact 1206 size, which is suitable for surface mount applications.
The dimensions of this fuse are 3.4 mm in length, 1.8 mm in width, and 0.75 mm in height.
The power dissipation for this resettable fuse is low at 0.6 W, contributing to efficient thermal management in circuits.
It features solder plated copper terminals, which ensure reliable connections during assembly.
Yes, the Littelfuse 1206L020YR complies with RoHS standards, supporting environmental safety regulations.
The time to trip for this model is 0.1 seconds, providing fast response to fault currents.
This fuse is ideal for protecting USB peripherals, mobile phones, PDAs, and game consoles.
The minimum operating temperature for this resettable fuse is -40°C, making it suitable for various industrial and commercial environments.
The Littelfuse 1206L020YR is packaged on reels, which enhances manufacturing efficiency and supports automated assembly processes.
