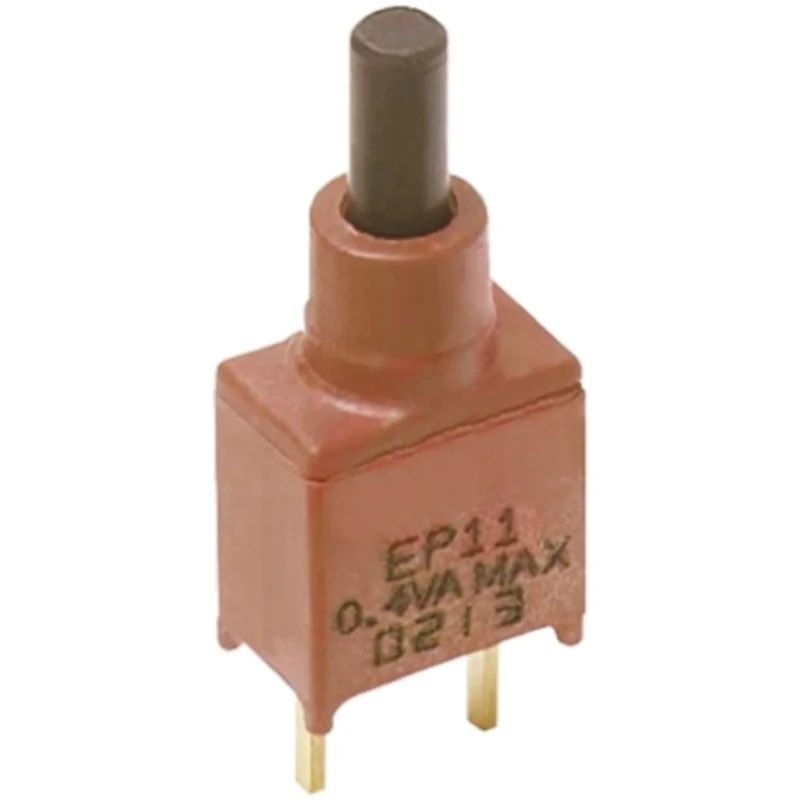

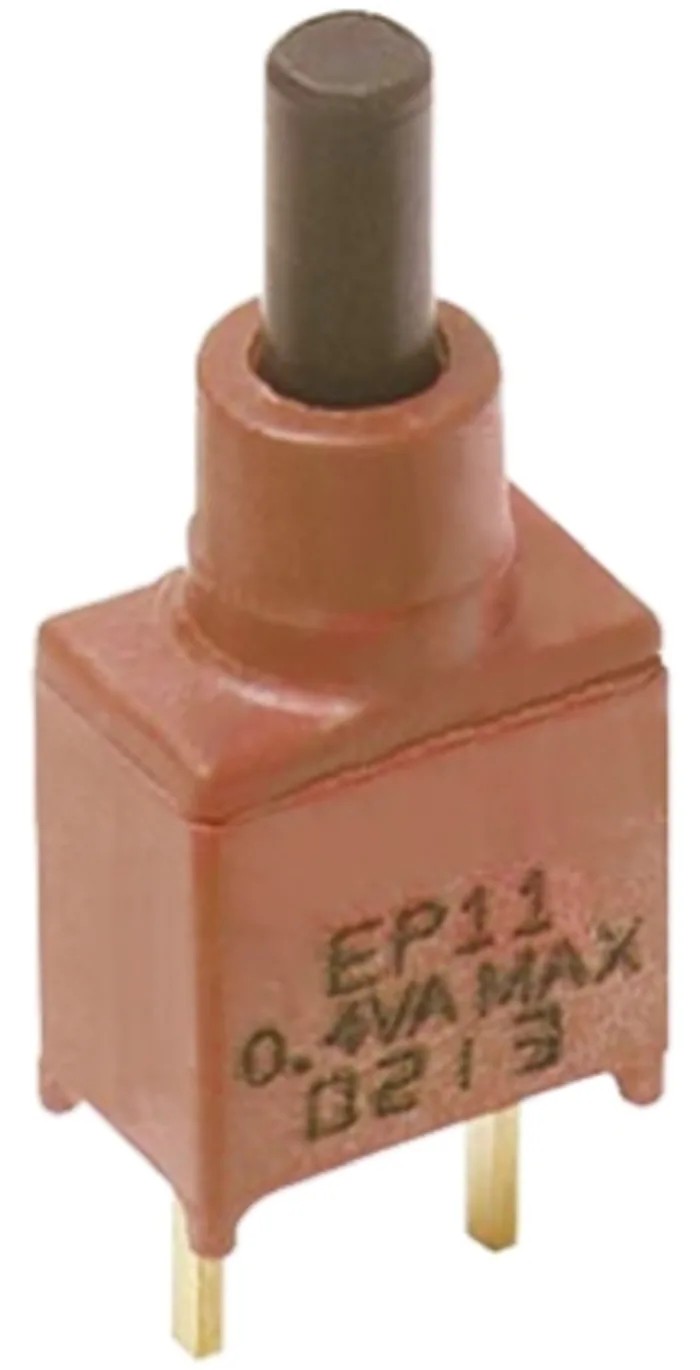

C & K EP Series Miniature Push Button Switch Momentary Through Hole 13 mm Cutout SPST IP57 20V dc 20V ac EP11SD1CBE
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Height | 0.215in |
| Length | 0.32in |
| Model | EP11SD1CBE |
| IP Rating | IP57 |
| Width | 0.2in |
| Mount Type | Through Hole |
| Series | EP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 13 mm |
| Terminal type | Solder Tag |
| Standards/Approvals | CSA, RoHS, UR |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 20V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
Key Features
- The actuator colour is black with a plunger style actuator.
- The switch is non-illuminated with a waterproof IP57 rating.
- Contact voltage ratings are 20V dc and 20V ac, supporting a switch contact current of 400mA.
- The switch has a compact size with dimensions approximately 0.32 inches length, 0.2 inches width, and 0.215 inches height.
- Operating temperature ranges from -30°C to 85°C, with compliance to CSA, RoHS, and UR standards.
- Terminals utilize solder tag type for secure connections.
- The switch contains gold contacts for enhanced conductivity and durability.
- Case material is glass filled nylon 6/6 with UL 94 V-0 rating, ensuring flame resistance.
Product Description
C & K EP11SD1CBE miniature push button switch is a high-quality, single pole sub-miniature waterproof switch designed for momentary normally open (N/O) SPST operations. It is ideal for industrial applications requiring reliable and compact push button switches.
This switch is constructed for through hole mounting and designed with a 13 mm cutout size, making it suitable for precise panel integration. The plunger-style black actuator provides ergonomic and effective switching control.
Rated for 20 volts DC and AC operation and capable of handling 400mA contact current, this switch meets demanding electrical specifications for automation, electronic assemblies, and control panels. Its robust IP57 rating ensures resistance to dust and water ingress, suitable for environments involving immersion washing and wave soldering processes.
The glass filled Nylon 6/6 case material complies with UL 94 V-0 flame retardant standards, offering durability and safety in various industrial applications. Gold-plated contacts enhance conductivity and operational life. The device also features excellent insulation resistance and dielectric strength, contributing to its reliability in harsh conditions.
Its temperature operating range from -30°C to 85°C allows versatile use across different climates and industrial settings. Certified with CSA, RoHS, and UR approvals, it aligns with critical industrial and environmental standards.
Black plunger actuator with momentary operation provides precise control. Single pole single throw contact configuration for simple switching tasks. IP57 waterproof rating enables use in wet or harsh environments. Compact dimensions suitable for constrained installation spaces.
Gold contacts and flame-retardant casing ensure long service life and safety. Suitable for immersion washing and wave soldering processes. Wide operating temperature range supports industrial and commercial use. Meets CSA, RoHS, and UR standards for quality assurance.
This miniature push button switch is well-suited for industrial automation, electronics manufacturing, control equipment, HVAC systems, and laboratory instruments where reliable momentary switching is needed. It is a versatile component for OEMs and system integrators looking for high-performance miniature switches.
Explore more Push Button Switches and components at EnvMart for comprehensive industrial and electronic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole single throw (SPST) contact configuration, suitable for simple switching tasks.
It is rated for 20 volts DC and 20 volts AC, supporting a switch contact current of 400mA.
This model has an IP57 rating, indicating it is resistant to dust and can withstand water immersion.
The switch has approximate dimensions of 0.32 inches in length, 0.2 inches in width, and 0.215 inches in height.
The operating temperature range is from -30°C to 85°C, allowing for use in various environments.
It utilizes solder tag type terminals for secure connections.
The case is made of glass filled nylon 6/6, which is flame resistant and complies with UL 94 V-0 standards.
It is certified with CSA, RoHS, and UR approvals, aligning with critical industrial and environmental standards.
The actuator style is a plunger, and it is black in color, providing ergonomic control for switching operations.
This switch is designed for through hole mounting, with a panel cutout size of 13 mm.
It is suitable for industrial automation, electronics manufacturing, control equipment, HVAC systems, and laboratory instruments.
The switch operates as a momentary type, meaning it is normally open and only closes when the actuator is pressed.
