| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Material | Ferrite |
| Height | 0.85mm |
| Length | 2mm |
| Model | BLM21PG220SH1D |
| Depth | 1.25mm |
| Mount Type | Surface |
| Current Rating | 6A |
| Series | BLM21PG |
| Maximum Operating Temperature | 125°C |
| Package Type | 0805 |
| Sub Type | Chip Ferrite Bead |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | REACH, RoHS |
| Maximum DC Resistance | 9mΩ |
| Impedance at 100 MHz | 22Ω |
| Automotive Standard | AEC-Q200 |
| Panasonic, EXCML 4A 100MHz, SMD EMI Filter, Flat ContactBrand | Panasonic |

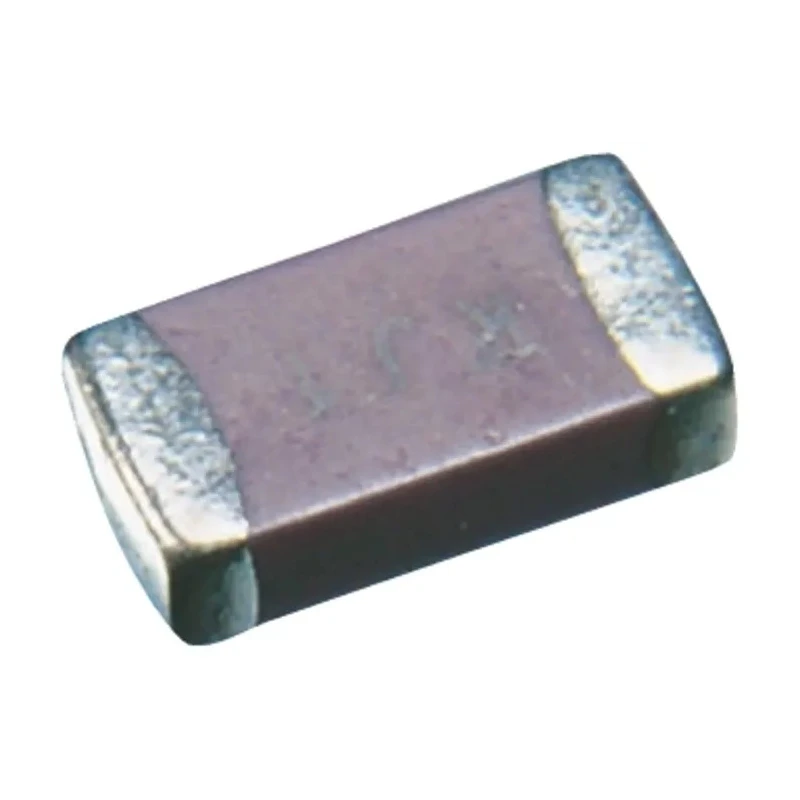

Murata BLM21PG220SH1D is a high-quality Surface Mount Device (SMD) chip ferrite bead in the 0805 package type, offering 22 Ω impedance at 100 MHz. Designed for efficient EMI noise filtering, this component suits automotive, industrial, and general-purpose electronic circuits requiring low noise interference and stable signal integrity.
The BLM21PG220SH1D ferrite bead has a DC resistance of only 9 mΩ and supports a current rating of up to 6A. Its operating temperature range from -55°C to 125°C allows reliable function in harsh environments. The nickel barrier construction on the terminals provides superior solder heat resistance ensuring strong mechanical and electrical connections on PCB surfaces.
With compact physical dimensions of 2 mm length, 0.85 mm height, and 1.25 mm depth, it fits perfectly in high-density compact PCB layouts where space is at a premium. The component complies with the automotive AEC-Q200 standard, highlighting its suitability for automotive electronic applications.
Murata’s BLM series ferrite beads are engineered to work without ground connections, making them ideal for circuits with unstable ground lines. By functioning almost like resistors at noise frequencies, they suppress EMI without distorting signal waveforms or causing resonance, thus enhancing circuit stability and performance.
This component's ferrite material composition is optimized for EMI noise suppression. The product is RoHS and REACH compliant, ensuring environmental safety. Manufactured in Japan, it maintains high standards of quality and durability.
Applications include automotive electronics, communication devices, and industrial machinery requiring noise reduction. The design assures durability and consistent performance under thermal and mechanical stress.
Choose the Murata BLM21PG220SH1D Ferrite Bead for dependable noise filtering in your electronic assemblies. Explore our catalog for more high-quality electronic components and passive devices suited for electronic design and manufacturing projects.
