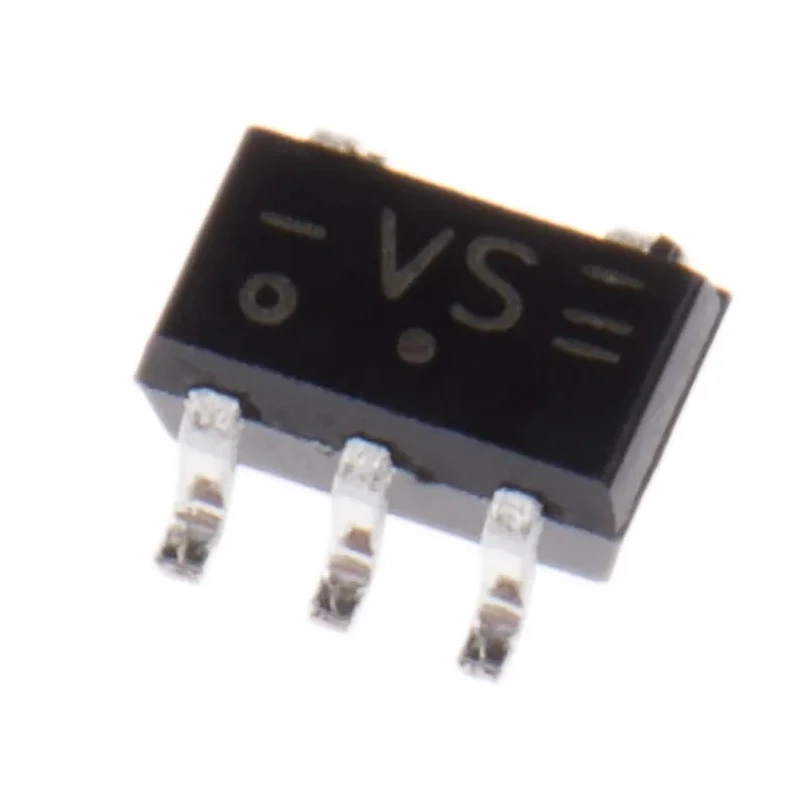

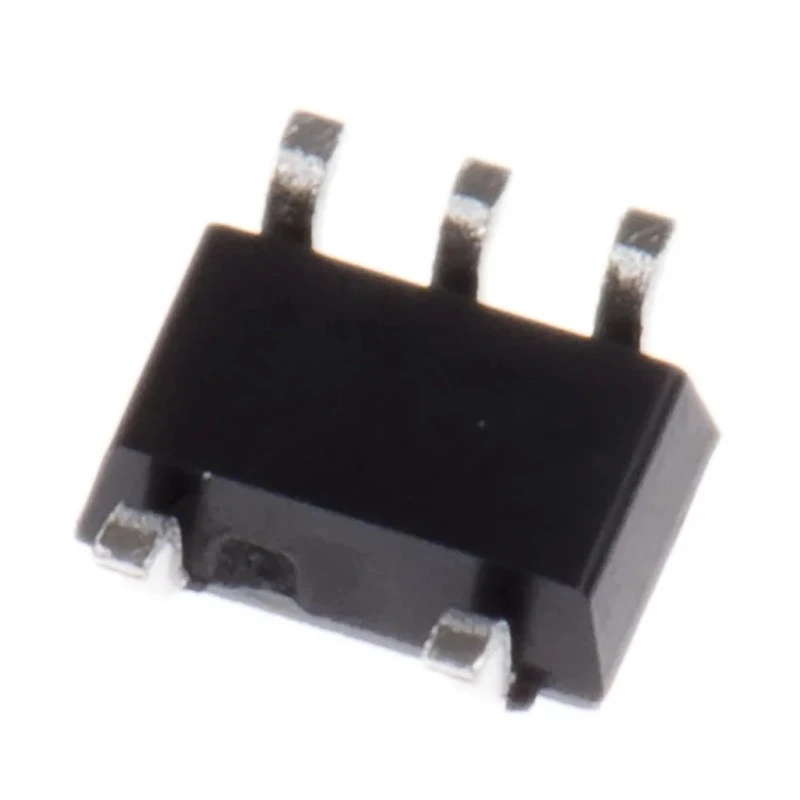

Nexperia Buffer & Line Driver IC Open Drain Non-Inverting 1 Channel 5-Pin TSSOP 1.65 to 5.5 V 4μA Supply 74LVC1G07GW,125

Nexperia 74LVC1G07GW,125 is a low-voltage CMOS buffer and line driver IC designed for modern electronic applications requiring a single channel buffer with open drain output and non-inverting logic functionality. Packaged in a 5-pin TSSOP for surface mount use, this device operates over a wide supply voltage range of 1.65 V to 5.5 V, making it versatile for varying power environments.

The IC features a maximum low-level output current of 30mA, providing robust drive capabilities for digital signals. Its fast propagation delay time of 4.5 nanoseconds ensures minimal signal distortion and latency, critical in high-speed data communication and signal processing.

Operating safely across extreme temperature conditions from -40°C to 125°C, the 74LVC1G07GW,125 maintains reliability for industrial, automotive, and telecommunications systems. The device dimensions are compact with length 2.2mm, width 1.35mm, and height 1.1mm, suitable for high-density circuit boards.

The logic family LVC supports compatibility with input LVTTL/TTL and output LVCMOS ensuring interface flexibility. Its low supply current of just 4μA enhances power efficiency. Non-inverting polarity supports correct logic level outputs, essential for signal integrity in interface ICs.

This buffer and line driver IC is widely applicable in interface electronics, industrial controls, telecommunications equipment, and various embedded systems where signal driving and buffering over PCB traces are required. The device meets standard industrial surface mounting protocols for easy integration into automated production lines.

Operates on low-voltage CMOS logic with a supply range from 1.65 to 5.5 V. Features a maximum low-level output current of 30mA suitable for various digital applications. Fast maximum propagation delay time of 4.5 nanoseconds ensures efficient signal buffering.

Designed for industrial temperature ranges from -40°C to 125°C. Small device dimensions measuring 2.2mm length, 1.35mm width, and 1.1mm height. Compatible with input LVTTL/TTL and output LVCMOS logic levels. Extremely low supply current of 4 microamperes enables energy-efficient designs.

Non-inverting logic functionality supports signal integrity in complex circuits. Suitable for surface mount applications in electronic, industrial, and communication equipment. Explore more semiconductor and interface ICs in the Electronics & Electricals category at EnvMart for your industrial and commercial project needs.
