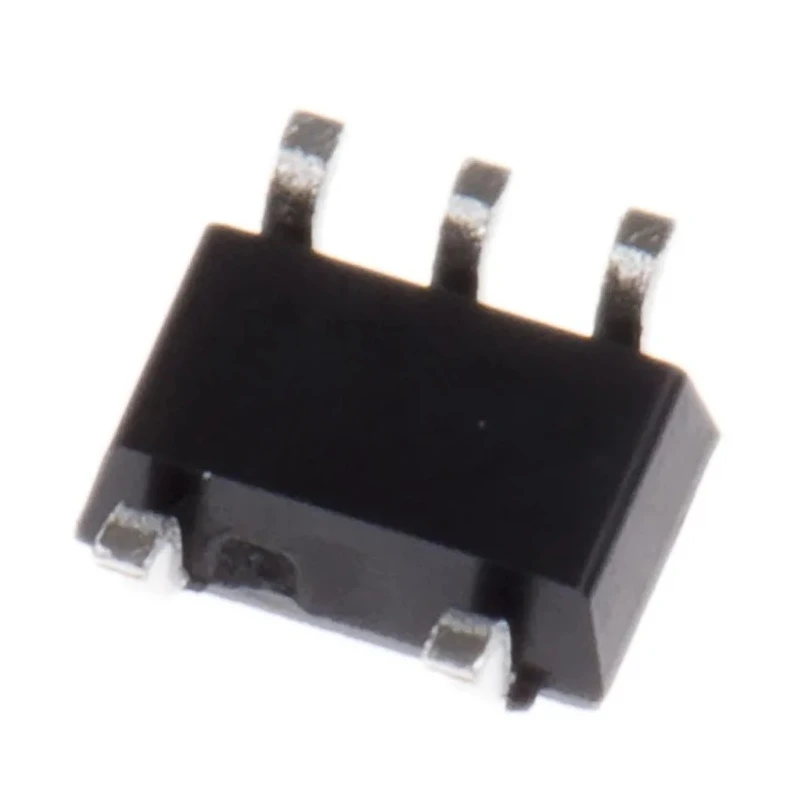

Nexperia Buffer & Line Driver Open Drain Non-Inverting 5-Pin TSSOP 74LVC1G07GW,125

Nexperia 74LVC1G07GW,125 Buffer & Line Driver Open Drain is a high-performance semiconductor device in a compact 5-pin TSSOP surface mount package. It belongs to the 74LVC1G07 series, designed for buffering and line driving applications using a non-inverting open-drain output configuration.

This buffer IC operates over a wide supply voltage range from 1.65V to 5.5V, enabling compatibility with various low voltage logic systems while supporting maximum low-level output currents up to 30mA. Its fast switching speed with a maximum propagation delay of 4.5ns ensures minimal signal delay, making it suitable for high-speed data and interface lines.

The device incorporates a single-channel CMOS input which is compatible with LVTTL and TTL logic levels, while output levels conform to LVCMOS specifications. This combination provides versatile interfacing options with modern digital systems.

Physically, the IC measures 2.2 mm in length, 1.35 mm in width, and a height of 1.1 mm, packaged in a thin small outline package (TSSOP) designed for surface mounting on PCBs, making it ideal for compact electronics assembly.

Operating temperature range extends from -40°C to +125°C, allowing usage in automotive, industrial, and other demanding environments without compromising reliability. The device stands out due to its extremely low supply current of 4 microamperes, supporting energy-efficient applications in battery-powered and low-power electronics.

In summary, the Nexperia 74LVC1G07GW,125 is an essential component for engineers seeking a reliable buffer and line driver IC with open-drain output in a small footprint suitable for a wide variety of industrial and electronic component applications.

Operates from 1.65V to 5.5V supply voltage with low current consumption. Single CMOS input channel with non-inverting open-drain output. Surface mount TSSOP package with 5 pins for compact layouts. Fast propagation delay of 4.5 nanoseconds for high-speed operations.

Wide temperature range from -40°C to 125°C for harsh environment usage. Compatible with LVTTL/TTL inputs and LVCMOS outputs. Ideal for industrial interfaces, line drivers, and buffering applications. Compact dimensions and low power consumption enhance PCB design flexibility.
