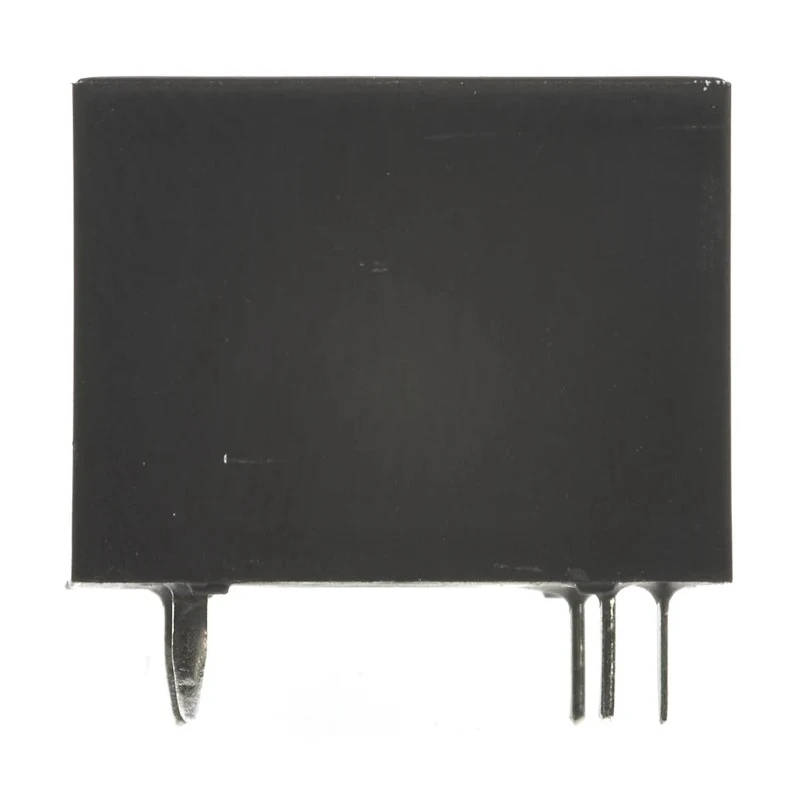

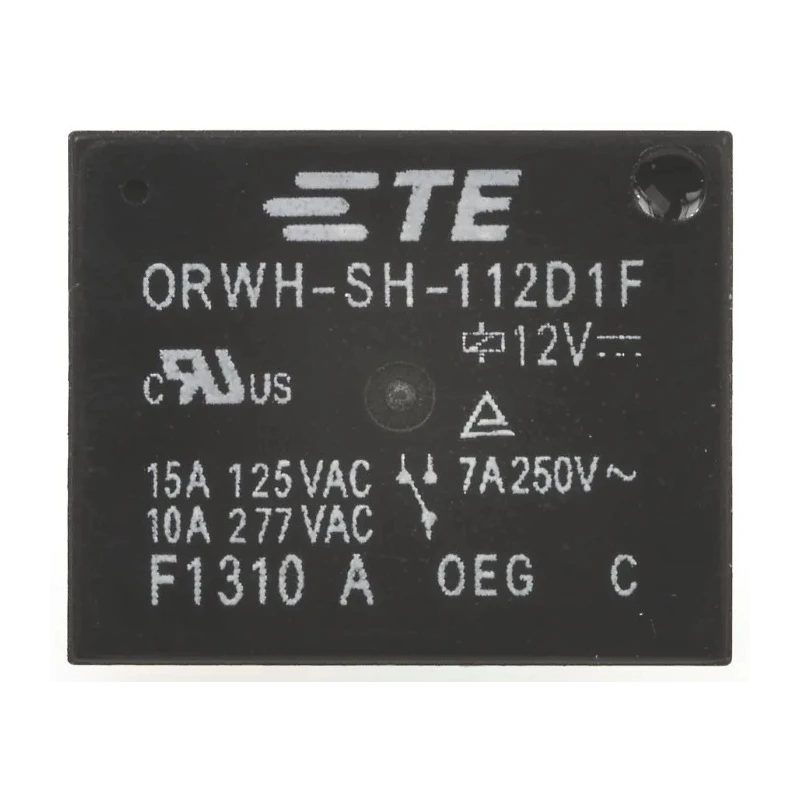

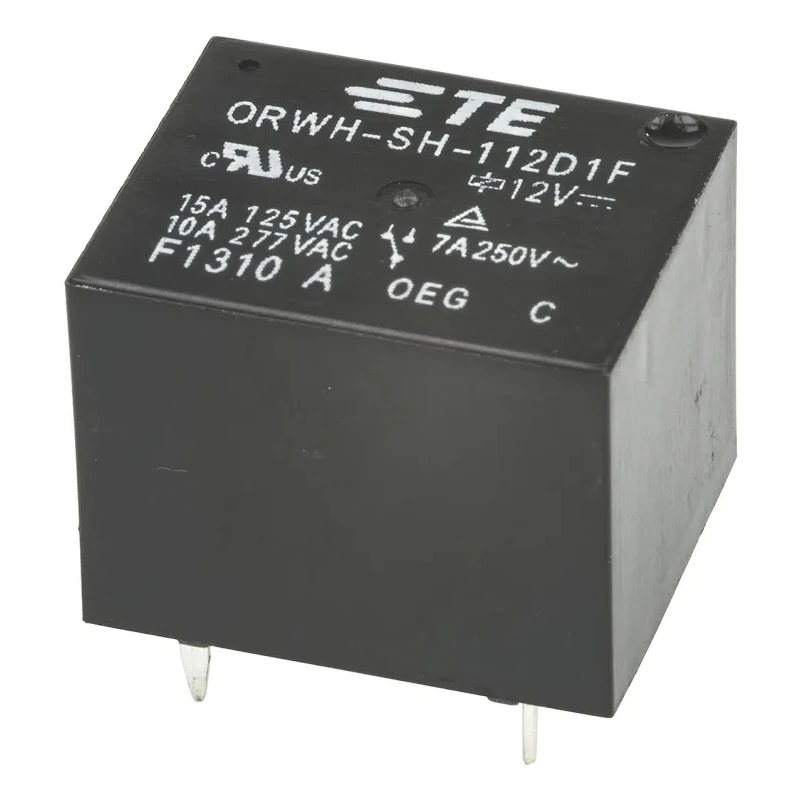

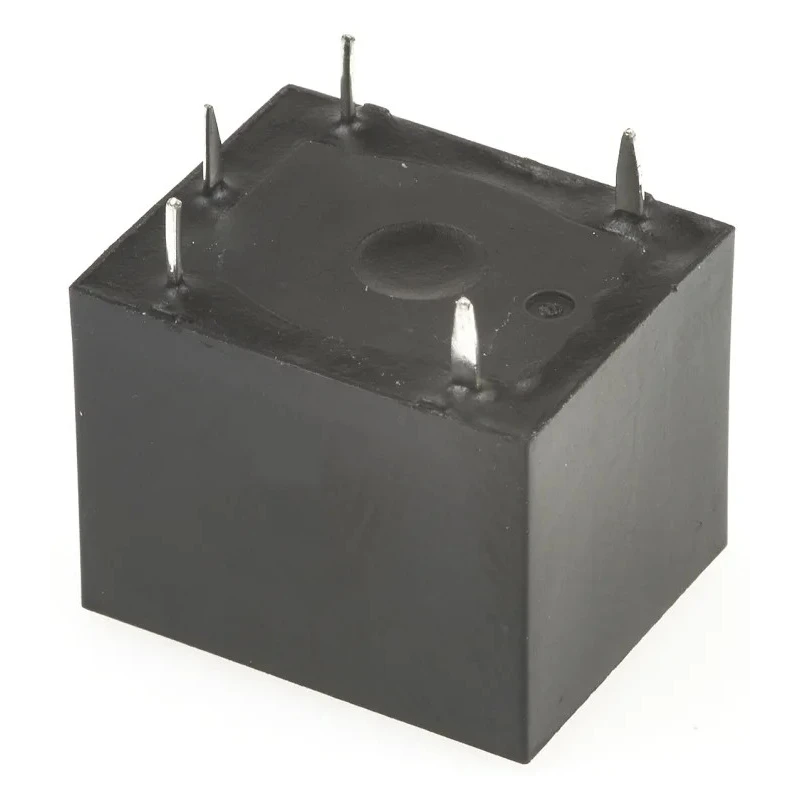

TE Connectivity PCB Power Relay 12V dc Coil 10A Switching Current SPDT 1-1721150-3
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15.8mm |
| Length | 19mm |
| Width | 15.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ORWH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 277V |
| Coil Power | 360mW |
Key Features
- Compact PCB mount type relay with silver alloy contact material.
- Operates reliably within a temperature range of -30°C to 70°C.
- Supports switching of up to 28V dc and 277V AC voltages.
- Designed with a coil resistance of 400Ω and coil power of 360mW.
- Meets RoHS standards ensuring environmental compliance.
- Suitable for heating, ventilation appliances, and emergency lighting applications.
Product Description

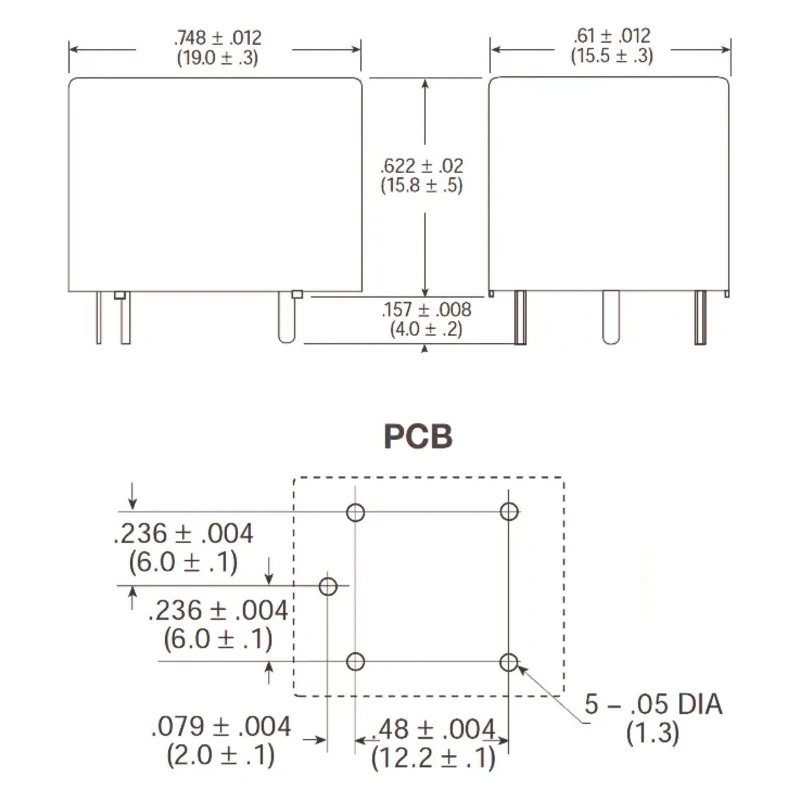

TE Connectivity 1-1721150-3 PCB Power Relay features a 12V dc coil designed for reliable switching of current up to 10A with a SPDT (Single Pole Double Throw) contact configuration. This miniature relay belongs to the ORWH series, optimized for PCB mounting and compact form factor with dimensions of 15.8mm height, 19mm length, and 15.5mm width. Its silver alloy contacts ensure durable electrical performance.
The device operates efficiently with a coil resistance of 400Ω and coil power consumption of 360mW, supporting switching voltages up to 28V dc and 277V AC. It is designed to function within a broad temperature range from -30°C minimum to 70°C maximum, making it suitable for various industrial and commercial applications.
Typical use cases for this Power Relay include integration into heating and ventilation equipment, emergency lighting systems, and other automation control scenarios where reliable, low power control of higher loads is required. The PCB pin terminal type ensures easy and stable installation on printed circuit boards.
Manufactured to comply with RoHS standards, this product is environmentally friendly and meets industry safety and quality norms. Originating from China, the relay ensures consistent product quality from a reputable global brand.
Compact and reliable miniature ORWH series PCB relay. Supports SPDT contact configuration for flexible switching applications. Low coil power consumption with 360mW coil power. Wide operating temperature range from -30°C to 70°C.
Silver alloy contact material for enhanced durability. Complies with RoHS environmental standards. Ideal for industrial, HVAC, automation, and emergency lighting uses. Explore a wide range of relays and contactors at EnvMart to find the ideal solution for your electrical and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay can switch up to 10A of current.
The coil voltage for this relay is 12V dc.
It operates reliably within a temperature range of -30°C to 70°C.
This relay supports switching voltages of up to 28V dc and 277V AC.
The coil resistance is 400Ω.
The coil power consumption is 360mW.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 15.8mm in height, 19mm in length, and 15.5mm in width.
The contacts are made of silver alloy, which ensures durable electrical performance.
This model is designed for PCB (Printed Circuit Board) mounting.
Yes, it meets RoHS standards for environmental compliance.
It is suitable for use in heating, ventilation appliances, and emergency lighting applications.
