MEAN WELL HBG-100 Series IP67 5 Output Constant Voltage LED Driver 48V 96W 2A Dimmable with 1 to 10 V PWM Resistance

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL HBG-100 Series IP67 5 Output Constant Voltage LED Driver 48V 96W 2A Dimmable with 1 to 10 V PWM Resistance

Name: MEAN WELL HBG-100 Series IP67 5 Output Constant Voltage LED Driver 48V 96W 2A Dimmable with 1 to 10 V PWM Resistance
Brand: MEAN WELL
SKU: 371361
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	HBG-100
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Voltage
Number of outputs	5
Terminal type	Wire
Maximum Output Power	96W
Input Voltage	305, 90, 127, 431V ac
Output Voltage	48V
Power Dissipation	96W
Protections	Short circuit / Overload / Over voltage / Over temperature
Standards/Approvals	BIS, CB, CE, EAC, ENEC, SELV, UL
Dimming Operation	1 to 10 V PWM Resistance
Primary Type	AC-DC
Driver Current	2A

Key Features

Compact circular design suitable for high bay and low bay LED lighting fixtures.
Fully potted aluminum enclosure offering excellent heat dissipation and IP67 protection.
High efficiency up to 91.5% with built-in active PFC function and wide input voltage range.
Robust protections against short circuit, overload, overvoltage, and overtemperature.
Operates reliably between -40°C to +60°C ambient temperature with free air convection cooling.
Compliance with major standards including BIS, CB, CE, EAC, ENEC, SELV, and UL.
Five output channels designed for constant voltage LED applications including high/low bay and architectural lighting.
Durable product life rated at 40,000 hours with 5-year warranty.

Product Description

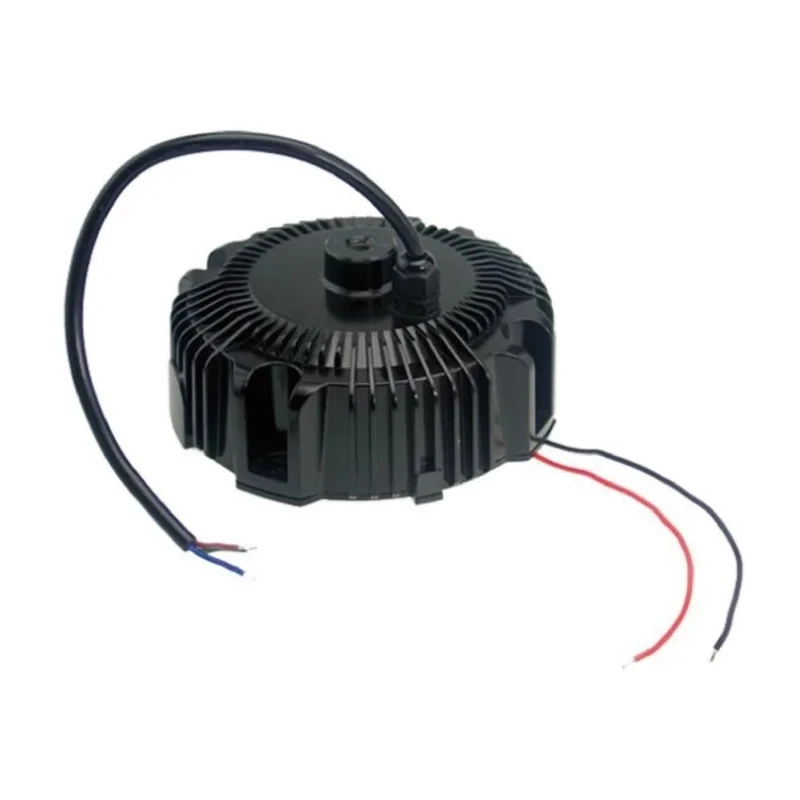

MEAN WELL HBG-100-48B is an IP67 rated, constant voltage LED driver delivering 96 watts of power at 48 volts and 2 amps output current. Designed with a circular aluminum enclosure, it is optimized for high bay and low bay LED lighting fixtures commonly used in industrial, commercial, and outdoor applications.

The driver features full potting to ensure IP67 ingress protection, allowing it to withstand harsh indoor and outdoor environments. Its excellent heat dissipation is facilitated by a tightly assembled aluminum case designed to work with heat sinks.

With an input voltage range spanning 90 to 305 VAC, the HBG-100 series includes built-in active power factor correction (PFC) and meets EN61000-3-2 Class C harmonic current limitations at 60% load. Its high efficiency up to 91.5% helps reduce energy consumption and heat generation.

For lighting control, the model supports versatile dimming operations including 1 to 10 V DC, PWM signal, and resistance dimming types, suitable for varied LED control systems. It operates reliably in ambient temperatures from -40°C up to +60°C with cooling via free air convection.

The LED driver includes comprehensive protection features such as protection against short circuit, overload, over voltage, and over temperature, ensuring long-term reliability and safety.

Compact circular design with aluminum enclosure for optimized heat dissipation. Wide 90-305 VAC input voltage with active PFC compliance. Five constant voltage outputs rated at 48 V and 2 A each. Advanced dimming options including 1 to 10 V, PWM, and resistance controls.

IP67 rated for protection against dust and water ingress. Robust electronic protections for circuit safety and durability. Meets multiple international standards and certifications for quality assurance. Suitable for industrial, commercial, stage, mining, and architectural LED lighting systems.

Designed for harsh environments with reliable operation from -40°C to +60°C ambient. Explore MEAN WELL LED drivers on EnvMart for efficient and reliable LED lighting power solutions tailored to demanding industrial and commercial applications.
