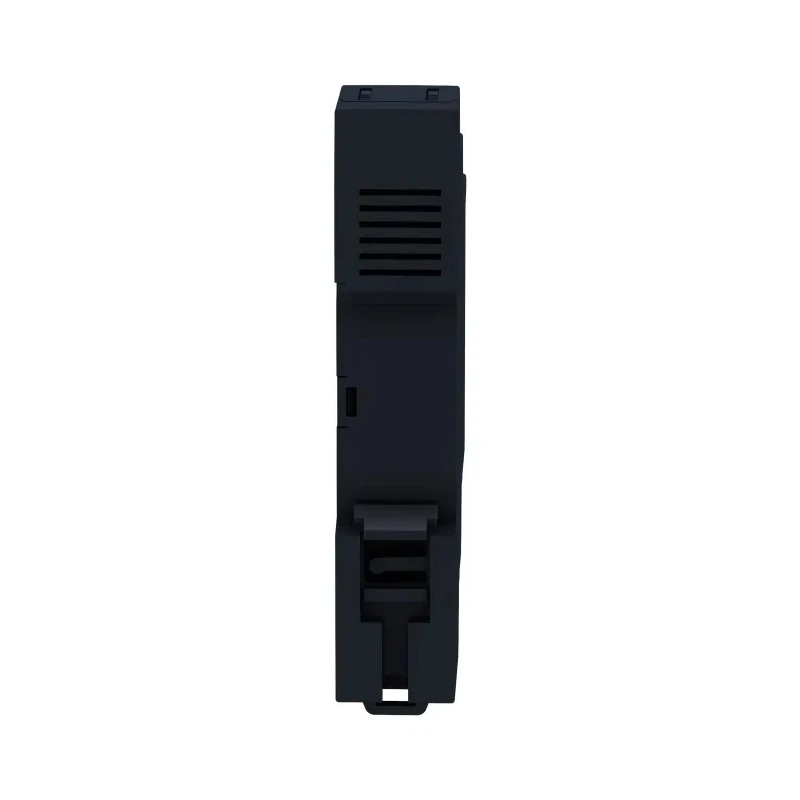

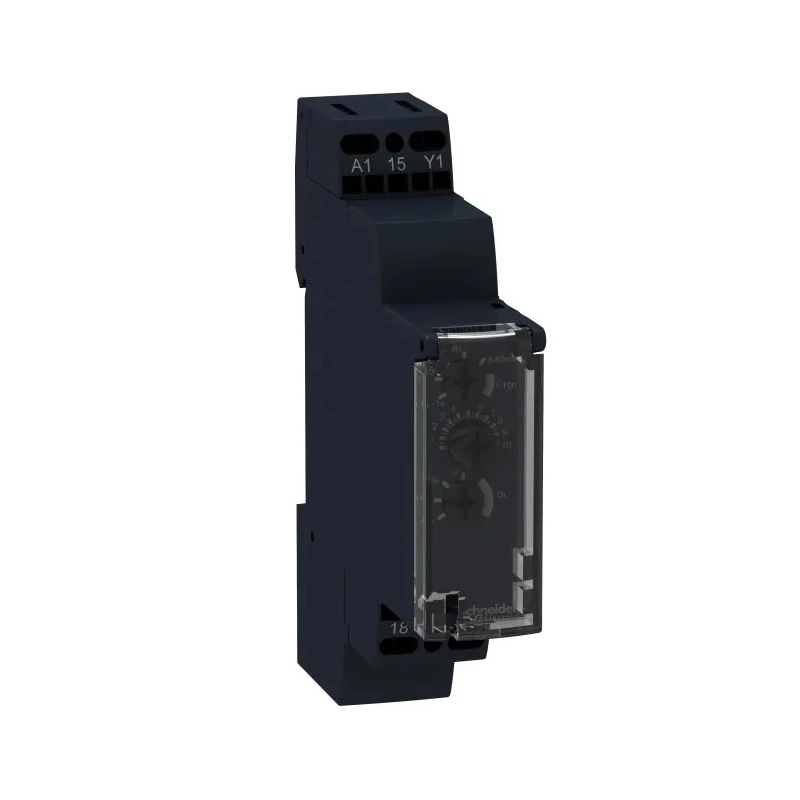

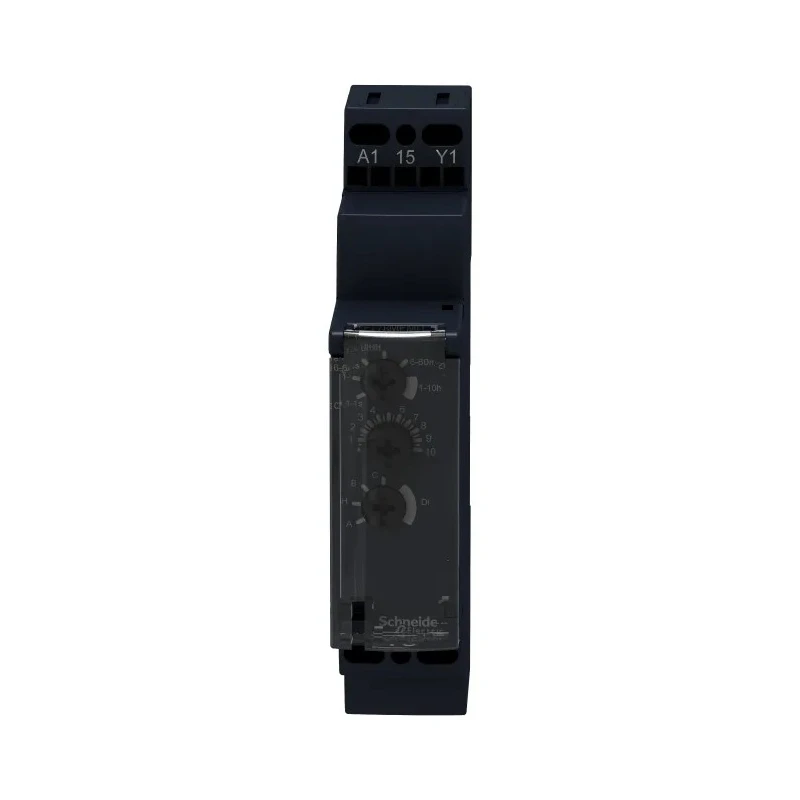

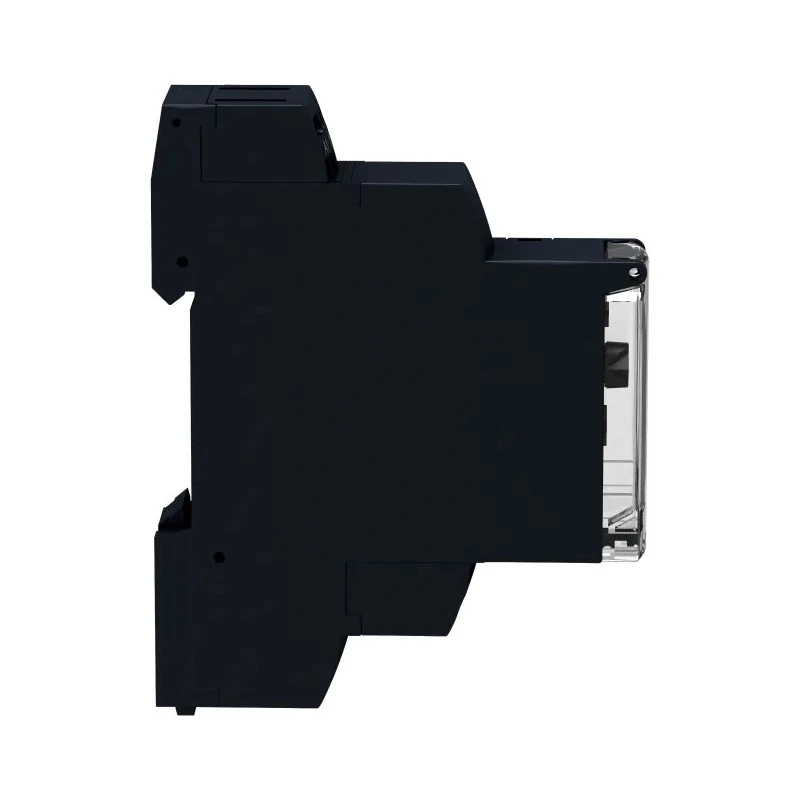

Schneider Electric Harmony Time Series DIN Rail Timer Relay 2-Contact 24 V dc 24V ac 240 V ac 0.1 s to 10 h RE17RMEMU

Schneider Electric RE17RMEMU Harmony Time Series DIN Rail Timer Relay is a high-performance multifunction timer relay designed for precise timing control in industrial automation applications, supporting supply voltages of 24 V dc, 24V ac, and 240 V ac.

This relay features a versatile timing range of 0.1 seconds to 10 hours, allowing it to control various industrial processes by opening or closing contacts before, during, or after a set time period. With a 2-contact SPDT configuration rated at 5A, it delivers reliable switching with complete isolation between supply and output circuits.

The relay's compact form factor with dimensions 90 mm length, 72 mm height, and 17.5 mm width enables easy DIN rail mounting in panels or sub-panels. It is equipped with screw terminals for secure wiring and an LED state indicator that facilitates troubleshooting and commissioning.

Designed to operate reliably within a temperature range of -20°C to 60°C, the timer relay is IP50 rated on the front panel, protecting against dust ingress. It complies with international safety and environmental standards including RoHS and CE.

Common applications for the RE17RMEMU include lighting control circuits, motor start control mechanisms, safety interlock systems, conveyor belt sequencing, and HVAC fan control systems. Its multifunction capabilities support complex automation sequences and complement PLC functions where programmed logic is required.

The relay offers energy-efficient and high-performance operation with options for relay or solid-state outputs. Its robust build and proven durability make it suitable for industrial, manufacturing, commercial, and water management systems.

Compact DIN rail mount design suitable for industrial automation systems. Multifunction timer with adjustable time ranges from 0.1 seconds up to 10 hours. 2-contact SPDT configuration with a 5A contact current rating providing reliable switching.

Wide operating temperature range from -20°C to 60°C for versatile applications. IP50 front panel rating protecting against dust ingress in industrial environments. Screw terminal type ensuring secure electrical connections.

LED state indicator for easy operational status monitoring. Compliant with international standards including RoHS and CE for safety and quality assurance. Ideal for lighting circuits, motor start control, safety controls, and HVAC systems.

Length 90 mm, height 72 mm, width 17.5 mm for space-efficient installation. Explore a wide range of reliable Timer Relays and industrial automation components on EnvMart to enhance your application efficiency and system reliability.
