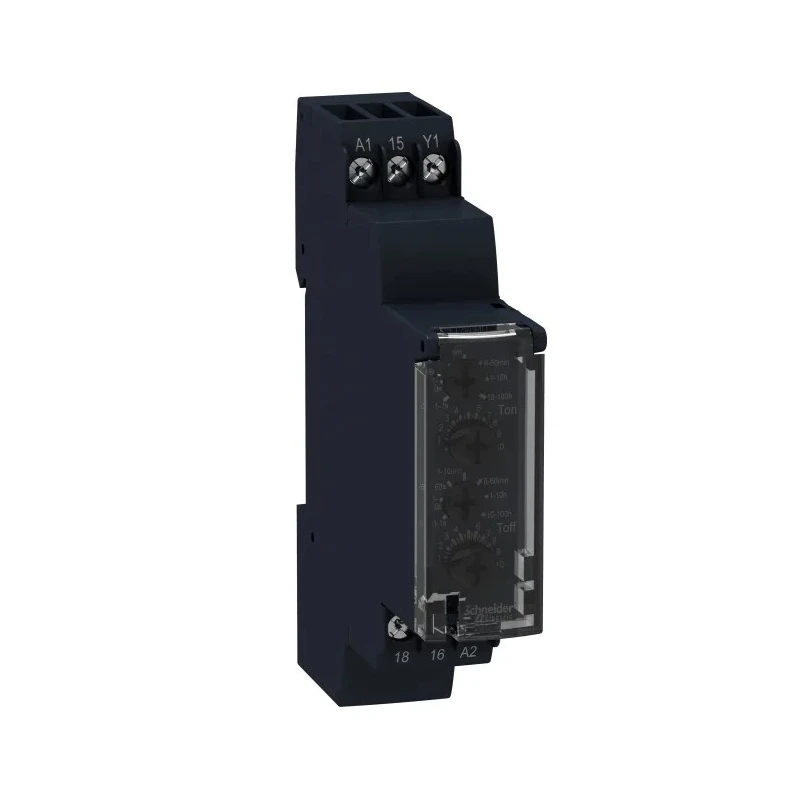

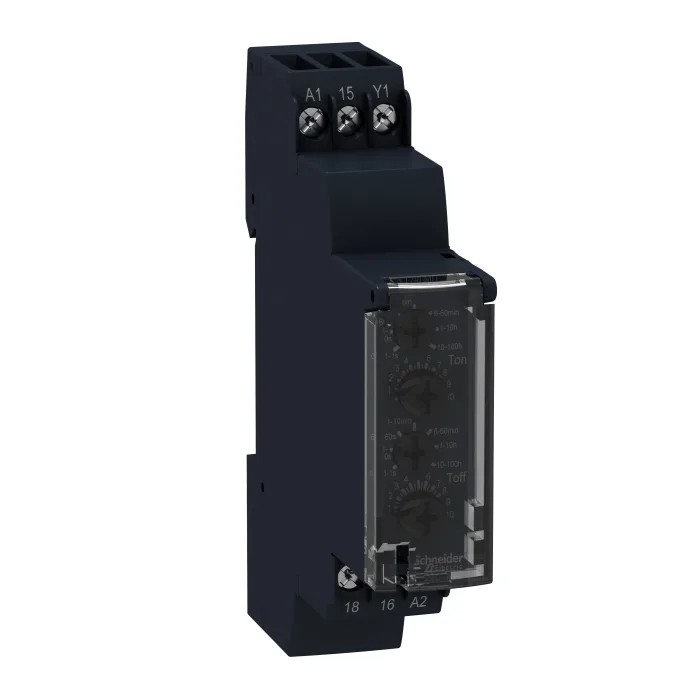

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 12 V dc/ac, 0.1s to 100h RE17RLJU

Schneider Electric RE17RLJU Harmony Time Series DIN Rail Timer Relay is designed for sophisticated automation cycles with multifaceted timing functions. It supports a supply voltage of 12 V dc and 12 V ac, accommodating a wide timing range from 0.1 seconds up to 100 hours, making it suitable for diverse timing control applications in industrial environments.

The relay features 2 contacts configured as SPDT, enabling single-pole double-throw functionalities, and supports a switching voltage up to 250 V with a contact current rating of 8 A. Its robust construction includes screw terminals and DIN rail mounting, ensuring secure installation and ease of maintenance in control panels.

Designed to withstand harsh industrial conditions, it operates reliably within a temperature range of -20°C to 60°C and holds an IP50 ingress protection rating. The compact build with a 90 mm length, 17.5 mm width, and 72 mm height optimizes panel space usage.

An asymmetrical flasher function integrated into the RE17R series offers versatile flashing signal control, enhancing its utility beyond simple time delay purposes. Additionally, LED indicators provide clear visual confirmation of operative status, facilitating troubleshooting and monitoring.

This multifunction timer relay complements PLC controls and wired logic, making it ideal for industrial automation, manufacturing processes, HVAC systems, and signal conditioning tasks in electrical panels.

Multifunction timer relay for industrial automation. Provides asymmetrical flasher function for flexible operation. Equipped with screw terminals and DIN rail mounting for easy installation. Switching voltage rated at 250 volts with SPDT contact configuration.

Operating temperature range from -20°C to 60°C ensures durability. Contact current capacity of 8 amps for reliable switching. Compact dimensions: 90mm length, 17.5mm width, and 72mm height. IP50 rated for protection against dust ingress.

LED state indicator for clear operational status monitoring. Compatible with PLC systems and wired logic applications.

This timer relay is an essential component for industrial and manufacturing control systems, offering precise timing control with flexible functions. Explore more Timer Relays and automation components at EnvMart for comprehensive electrical solutions.
