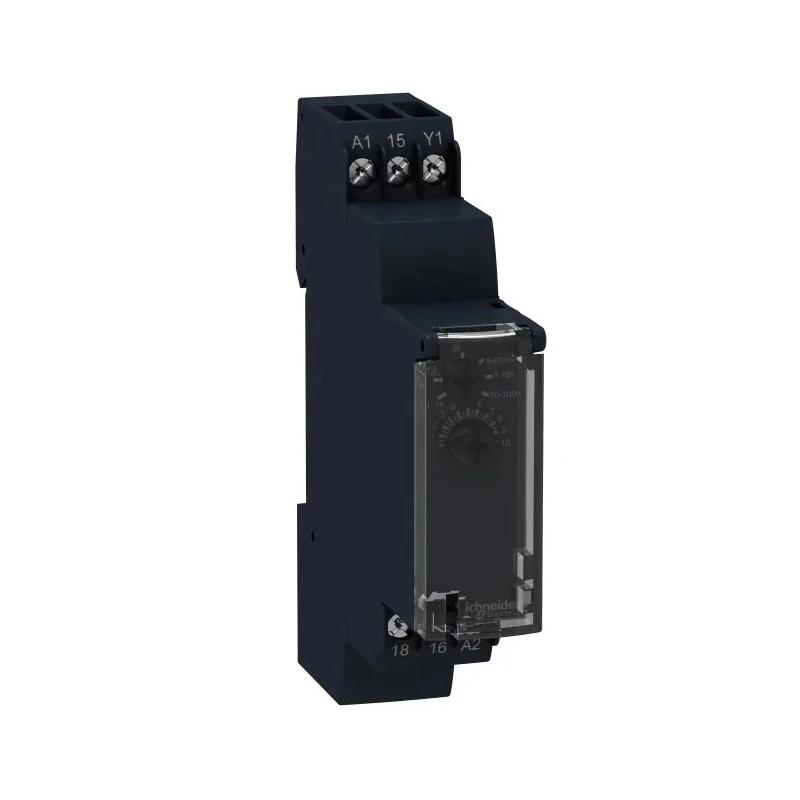

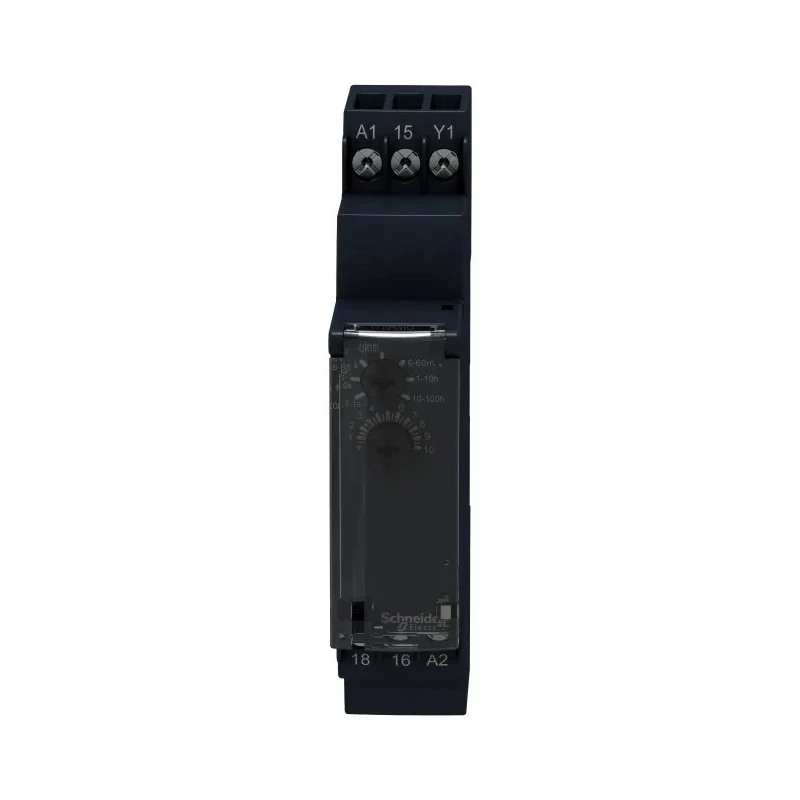

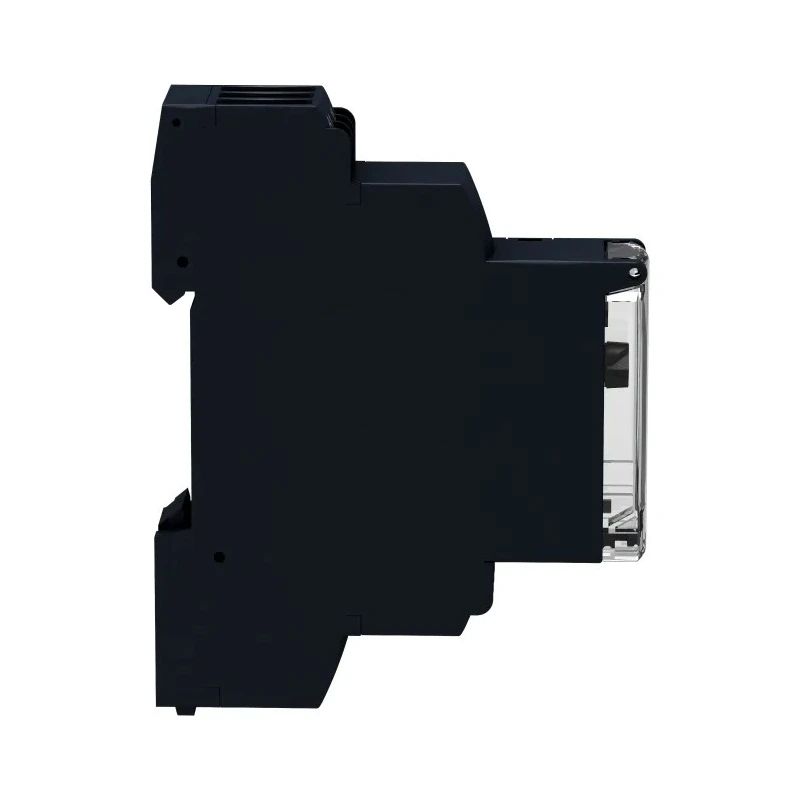

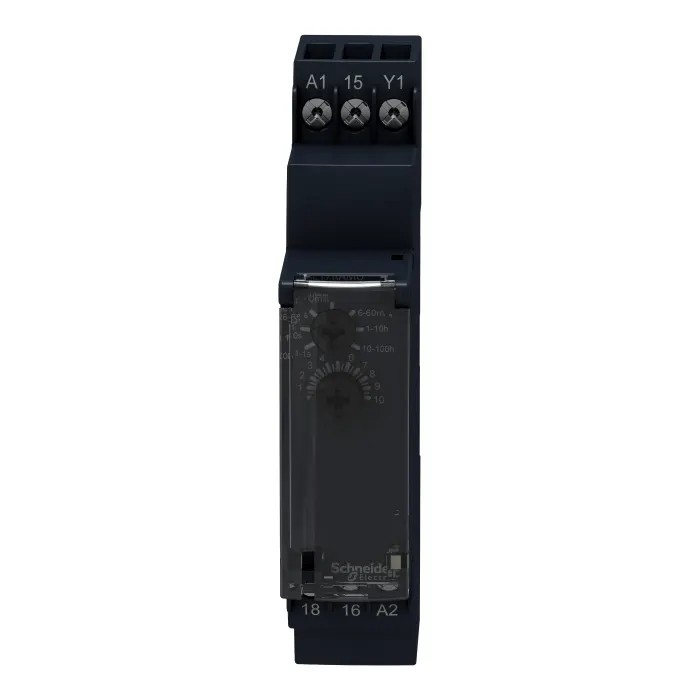

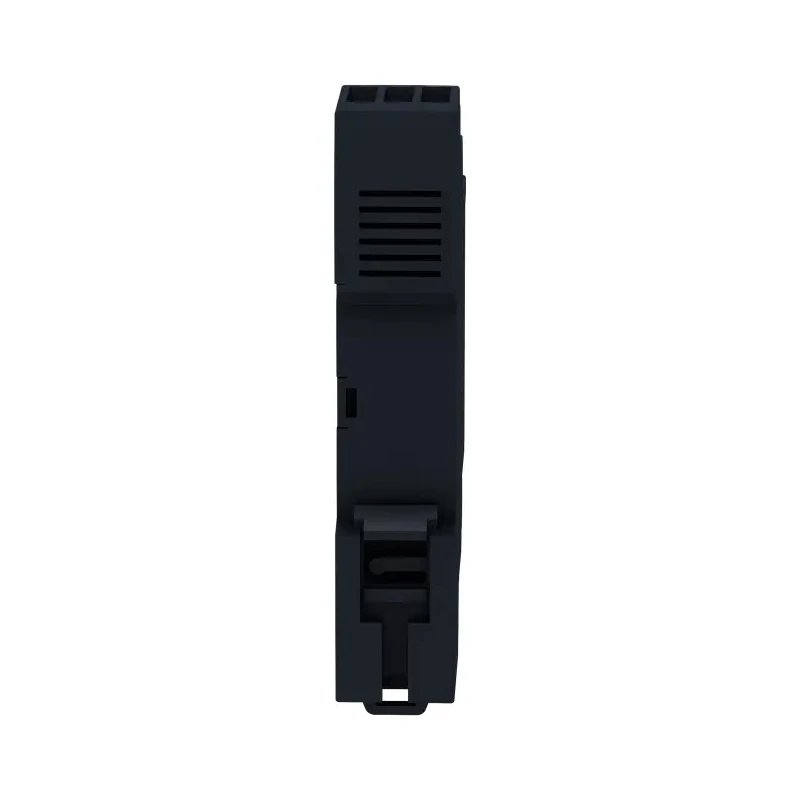

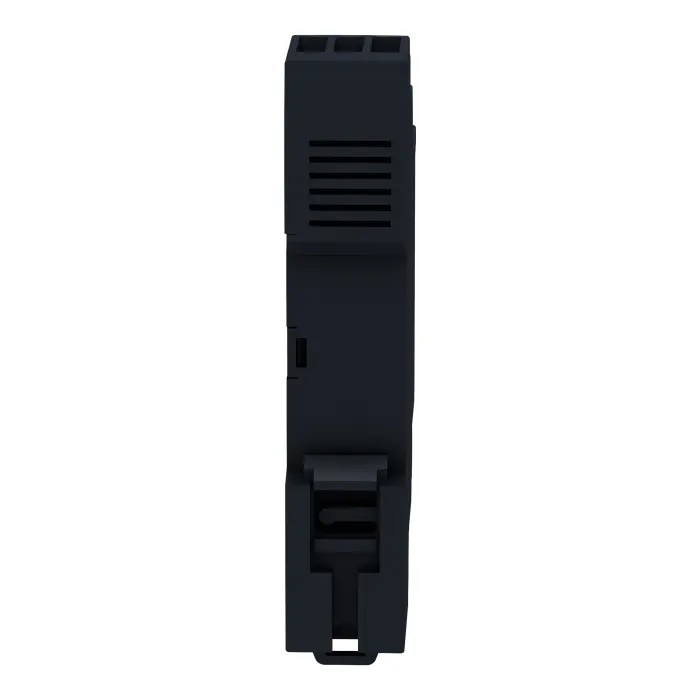

Schneider Electric Harmony Time Series DIN Rail Timer Relay 2-Contact 24 V dc 24 V ac 240 V ac 0.1 s to 100 h RE17RCMU

Schneider Electric RE17RCMU Harmony Time Series Timer Relay is a DIN Rail mounted timer relay offering precise on-and-off delay functions for diverse industrial automation and control applications. It supports a wide timing range from 0.1 seconds up to 100 hours, making it versatile for varied timing needs.

The relay features dual contact capability with SPDT configuration rated for 8A current and a switching voltage up to 250 V, suitable for controlling various circuits. It operates efficiently under supply voltages of 24 V dc and both 24 V ac and 240 V ac, providing flexible connection options.

Its compact design measures 17.5 mm in width, 90 mm in length, and 72 mm in height, allowing it to occupy minimal space on standard DIN rails. Installation is tool-free, ensuring quick setup in electrical panels. The front selector switch simplifies timing adjustments with a set accuracy of ±10%, and the protective cover safeguards settings from inadvertent change.

Designed for durability, the RE17RCMU provides an electrical service life of approximately 100,000 operations. The unit is rated IP50 for protection against dust ingress and functions reliably within an ambient temperature range of -20°C to 60°C. LED indicators display the relay status during timing cycles, facilitating easy monitoring during operation.

This timer relay is ideal for use in food production, HVAC systems, and wider industrial automation processes, where precise timing control is essential. It complements PLC functions and can be integrated into control panels for event sequencing, delay operations, and process automation.

Supports dual 24 V dc and 24/240 V ac supply voltages for versatile use. Robust SPDT contacts handle 8A current and 250 V switching voltage safely. Wide timing range from 0.1 seconds to 100 hours for flexible automation tasks.

Compact DIN rail mounting with tool-free snap-on installation. Front selector switch and protective cover enable accurate and secure timing adjustments. Durable design with 100,000 electrical operations life expectancy. IP50 protection and wide operating temperature range ensure reliability in industrial environments.

LED indicators provide visual timing status cues. Explore more Timer Relays and Schneider Electric products to enhance your industrial control and automation capabilities at EnvMart.
