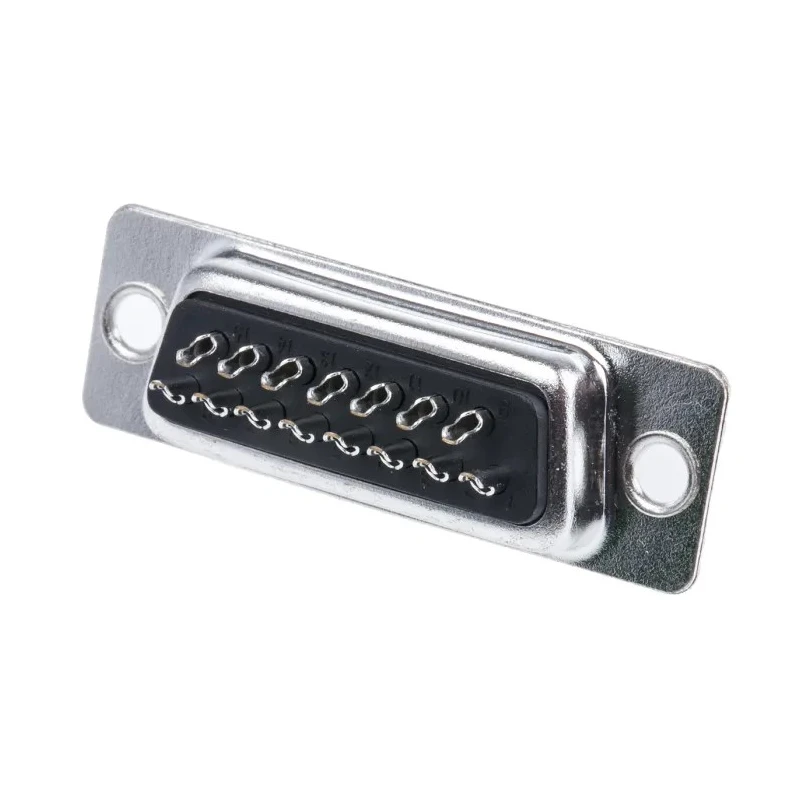

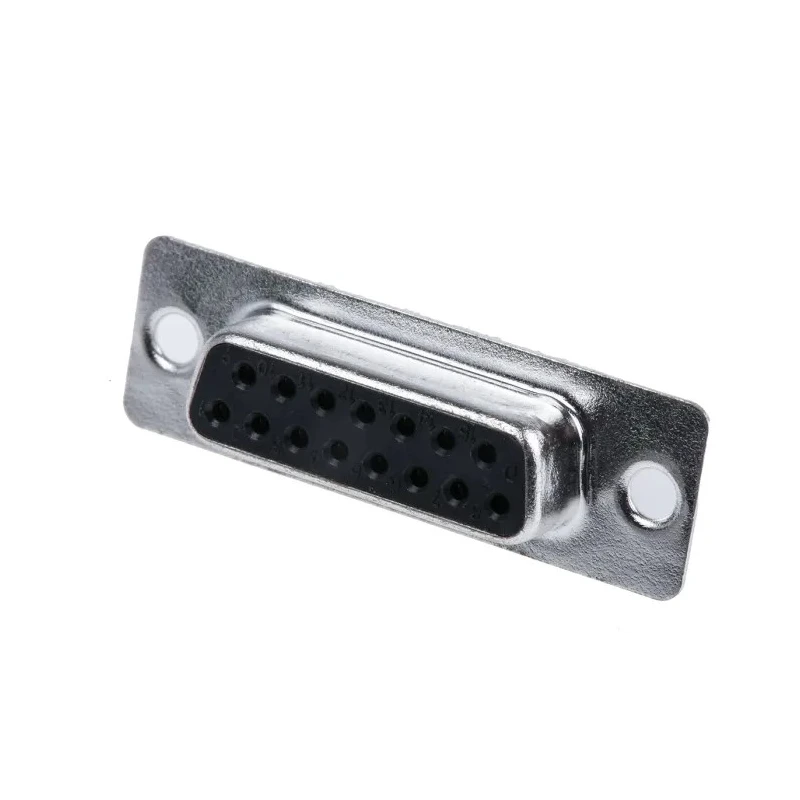

MH Connectors D-Sub Connector 15 Way Straight 2.77 mm Pitch Cable Mount Steel Housing 250V MHDB15SS
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | MH Connectors |
| Orientation | Straight |
| Current | 5A |
| Model | MHDB15SS |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | MHDB |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Features a durable steel housing ensuring mechanical toughness.
- Operates safely at 250V with a maximum current rating of 5A.
- Female solder termination type suitable for precise solder cup connections.
- Designed to withstand operating temperatures from -55°C to 105°C.
- Contacts are made from brass with gold over nickel plating for corrosion resistance.
- Complies with MHDB series standards, optimized for industrial electronic use.
- Pitch spacing of 2.77 mm allows reliable high-density connections.
- Manufactured with UL94 V-0 black glass filled PBT insulator for electrical safety.
Product Description
MH Connectors MHDB15SS is a high-quality D-Sub Connector designed for cable mounting with 15 female solder cup contacts arranged in a straight orientation. It features a robust steel housing providing mechanical durability and is suitable for both low and moderate voltage electronic applications with a rated voltage of 250V and a current capacity of 5A. The connector operates reliably in extreme temperature conditions, from -55°C to 105°C, ensuring performance in harsh industrial and electrical environments.
The contacts are precision-engineered from brass material and finished with gold over nickel plating to guarantee excellent conductivity and long-term corrosion resistance. The pitch of 2.77 mm maintains electrical isolation and efficient space utilization. The insulator is made from UL94 V-0 rated black glass filled PBT, enhancing safety compliance.
This MHDB series connector is well-suited for electronic, power, and computing applications requiring secure and reliable cable connections. Typical use cases include industrial automation, laboratory equipment, telecommunications, and other commercial electrical systems.
Durable steel housing for mechanical protection. Rated for 250V and 5A electrical load. Female solder cup contacts for ease of cable termination. Wide operating temperature range (-55°C to 105°C) for industrial usage. Brass contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
2.77 mm pitch for compact and efficient connection layout. UL94 V-0 black glass filled PBT insulator ensures electrical safety.
The package contains a single MH Connectors MHDB15SS D-Sub Connector designed for mounting on cables. The product is manufactured in China, ensuring adherence to quality standards expected in professional electronics assembly.
Explore more connectors and related components in the Electronics & Electricals category at EnvMart for comprehensive solutions in industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this D-Sub connector is 250V.
This model has a maximum current capacity of 5A.
The contacts are made from brass and are plated with gold over nickel for corrosion resistance and conductivity.
The connector operates reliably within a temperature range of -55°C to 105°C.
This connector features 15 female solder cup contacts.
The pitch of the contacts is 2.77 mm, allowing for high-density connections.
It uses a female solder termination type suitable for precise solder cup connections.
The housing is made from steel, providing mechanical toughness.
Yes, it is designed for industrial electronic use, including applications in automation and telecommunications.
The insulator is made from UL94 V-0 rated black glass filled PBT, enhancing electrical safety.
This connector is manufactured in China, adhering to quality standards for professional electronics assembly.
The MHDB15SS is a D-Sub connector designed for cable mounting.
