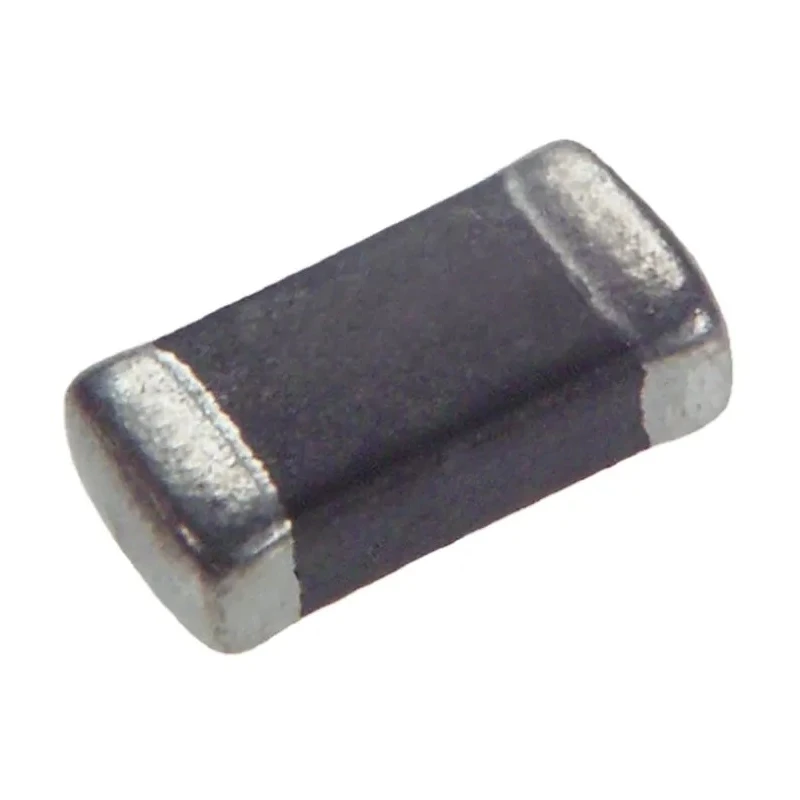

Murata 1008 Shielded Multilayer Surface Mount Inductor with Ferrite Core 1 μH ±20% 1.5A LQM2HPN1R0MJ0L

Murata LQM2HPN1R0MJ0L is a shielded multilayer Surface Mount Inductor designed with a ferrite core, offering an inductance of 1 μH with a ±20% tolerance and capable of handling a maximum DC current of 1.5 A. It is packaged in a compact 1008 case, measuring 2.5 mm in length, 1.1 mm in height, and 2 mm in depth, making it ideal for compact electronic assemblies.

The multilayer construction enhances the performance of the inductor while maintaining a low DC resistance of 113 mΩ, contributing to energy efficiency. The device is moulded and shielded to minimize electromagnetic interference, ensuring stable operation in sensitive circuits.

This inductor operates reliably in harsh environments across a wide temperature range from -55°C to 125°C. Its solder termination style facilitates secure mounting onto circuit boards. The maximum self-resonant frequency is 70 MHz, making it suitable for various power and signal filtering applications in industrial, automotive, consumer electronics, and communications equipment.

Manufactured in Japan, the Murata LQM2HPN1R0MJ0L complies with RoHS standards, reflecting its adherence to environmental and safety regulations. Its robust design and high current rating make it appropriate for industrial manufacturing, laboratory electronics, and HVAC system controls where reliable inductive components are required.

The inductor’s shielded multilayer design improves performance in high-density PCB layouts. The ferrite core provides stable inductance over varying frequencies and temperatures. Low DC resistance reduces heat generation and power loss.

Compact size supports miniaturized electronic device designs. RoHS compliance ensures environmentally responsible manufacturing. Discover the extensive range of high-quality components including inductors available on EnvMart for your professional and industrial needs.
