| Country of Origin | Japan |
|---|---|
| Brand | Murata |

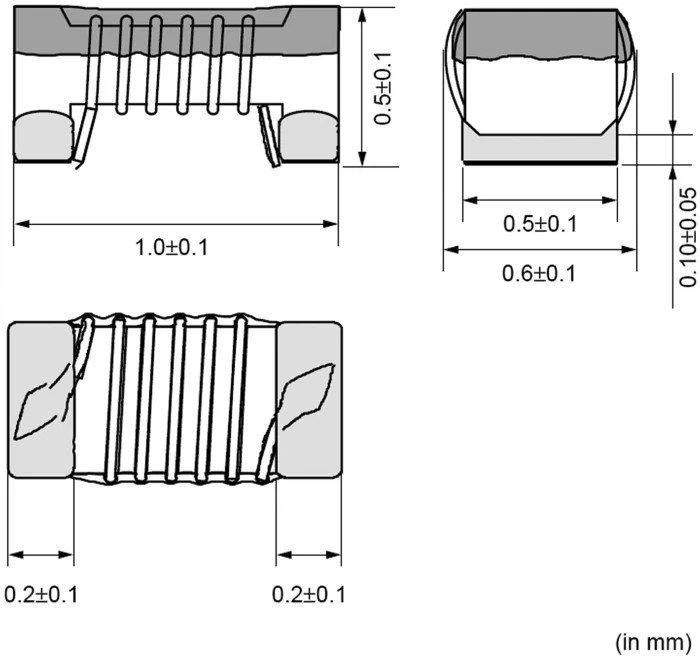

| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN2N9B00D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 2.9nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 750mA |
| Pin Count | 2 |
| Maximum DC Resistance | 70mΩ |
| Inductance Tolerance | ±0.1 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 15GHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |

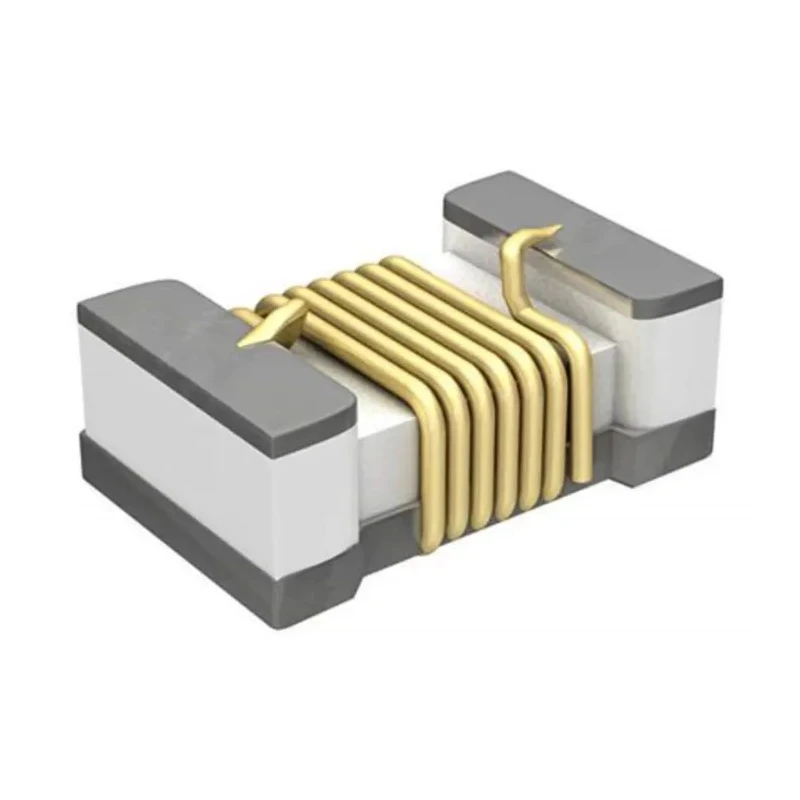

Murata LQW15AN2N9B00D is an unshielded wirewound surface mount inductor designed specifically for high frequency applications. Packaged in a compact 0402 case, this inductor offers an inductance of 2.9 nH with a tight tolerance of ±0.1 nH, making it suitable for precision circuits.
The inductor incorporates a ferrite core which provides excellent magnetic properties, yielding a minimum quality factor of 20 and enabling high resonance frequencies up to 15 GHz. This performance makes it ideal for use in VHF and UHF wireless communication circuits including Bluetooth, GSM, and WLAN devices.
Featuring a maximum DC current rating of 750 mA and a low maximum DC resistance of 70 milliohms, the LQW15AN2N9B00D ensures low power dissipation and enhanced efficiency. It operates reliably in a broad temperature range from -55°C to +125°C and is RoHS compliant.
The inductor has a solder termination style compatible with automated PCB assembly and is supplied in paper tape packaging for efficient production integration. Compact 0402 surface mount package. Ferrite core for stable inductance.
High resonance frequency up to 15 GHz. Low DC resistance. Wide operating temperature range. RoHS compliant. Suitable for Bluetooth, GSM, WLAN high frequency circuits. Solder termination for surface mount assembly. Paper tape packaging for automated placement.
This Murata wirewound inductor is a premium choice for industrial, telecommunications, and electronic manufacturing applications requiring reliable high-frequency passive components. Browse our Surface Mount Inductors category for more options.
